Rear Compartment Lid Inside Handle Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

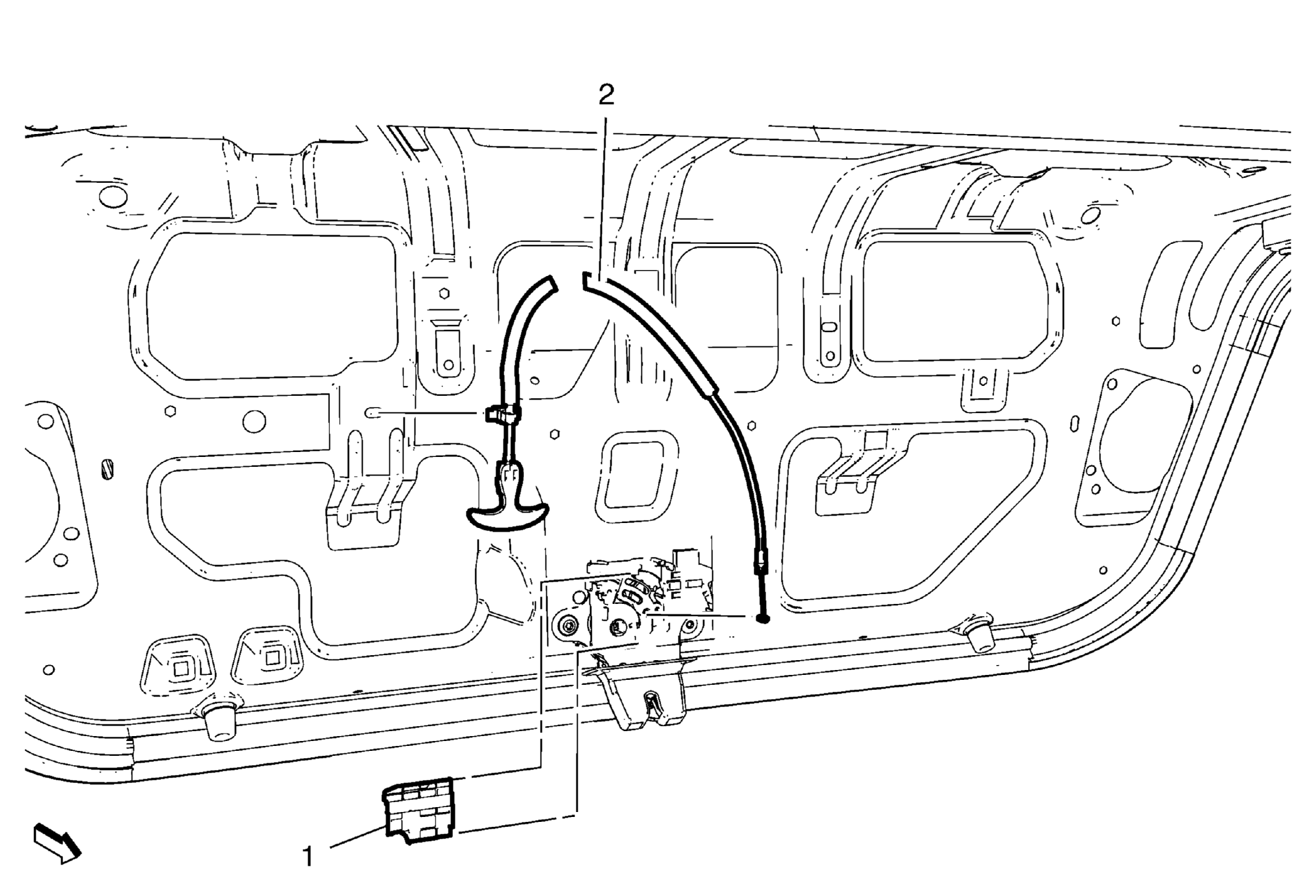

Fig 1: Rear Compartment Lid Inside Handle And Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement
1	Rear Compartment Lid Latch Cover
2	Rear Compartment Lid Inside Handle
