Installation Procedure

WARNING: This page is about a different car, the 2014 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors.
    2. Fig 1: Radio Antenna Base
    GM2371594Courtesy of GENERAL MOTORS COMPANY
  2. Install the radio antenna base (1).

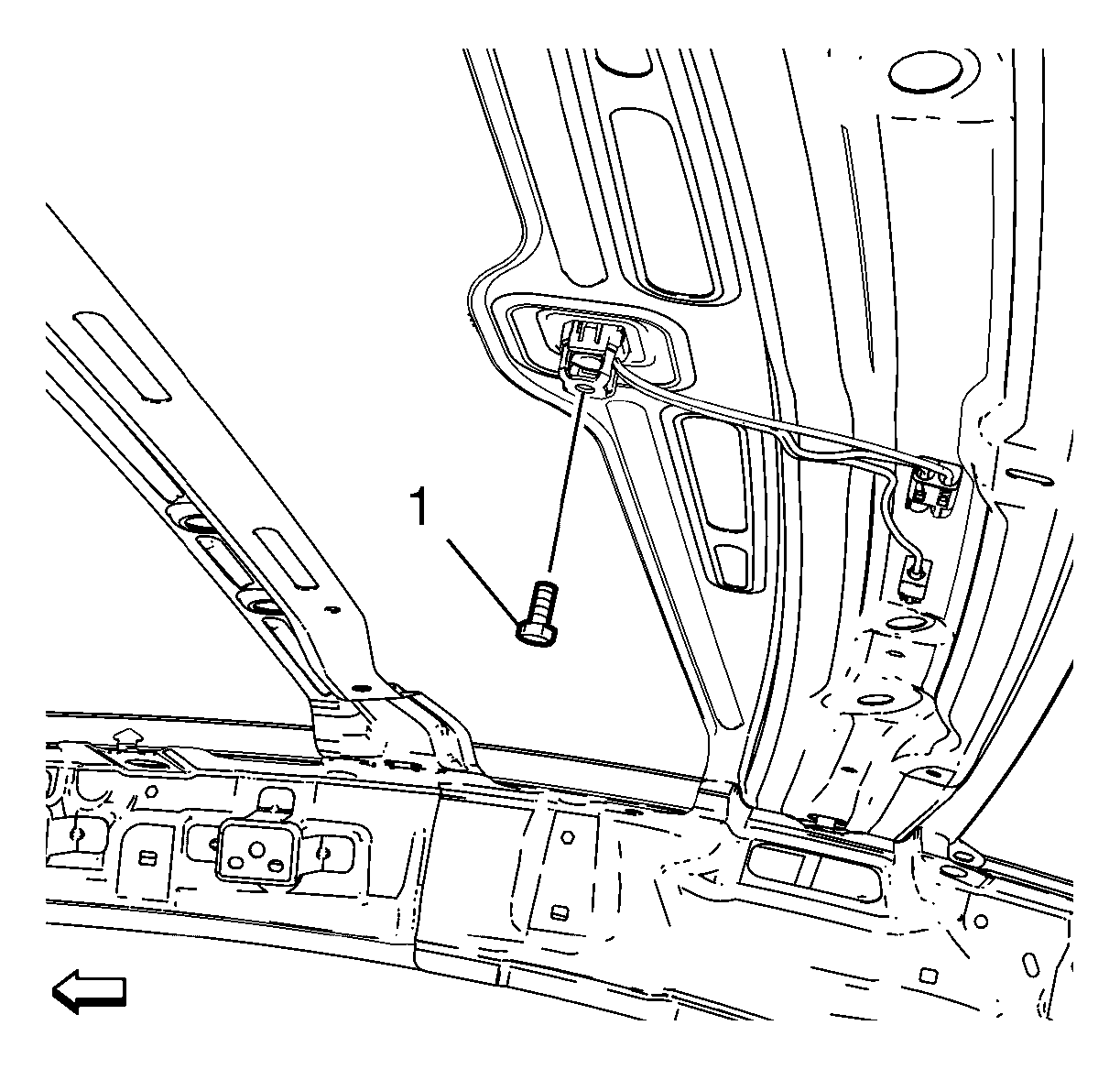

    3. Fig 2: Radio Antenna Base Bolt
    GM2371593Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the radio antenna base bolt (1) and tighten to 10 N.m (89 lb in).
  4. Install the headlining trim panel. Refer to Headlining Trim Panel Replacement (with Sunroof) , Headlining Trim Panel Replacement (without Sunroof) .
