Installation Procedure

  1. Remove the CH-6015  plugs from fuel feed tank pipe and fuel feed pipe.

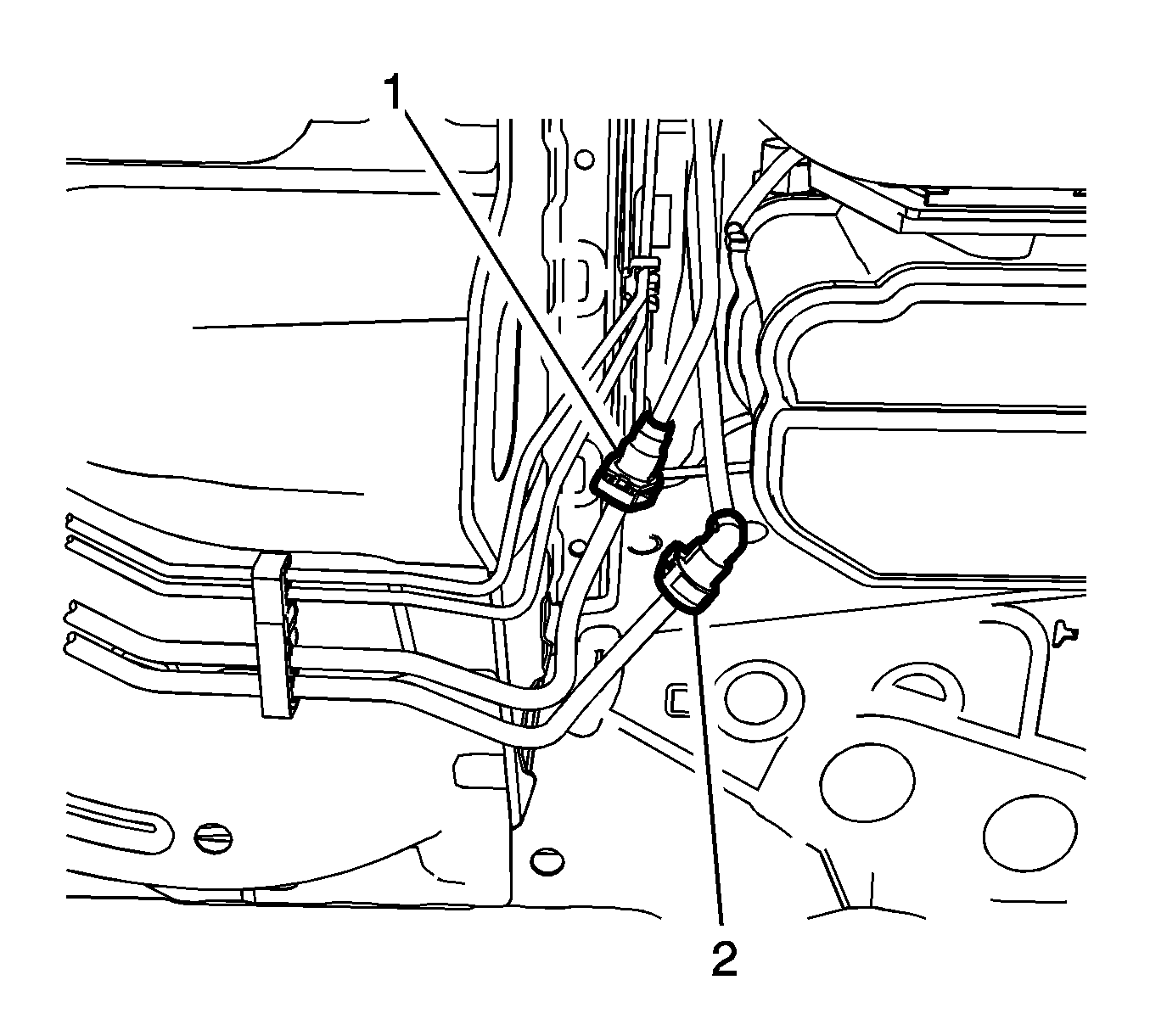

    2. Fig 1: Fuel Tank Feed Pipe Connector
    GM2672365Courtesy of GENERAL MOTORS COMPANY
  2. Install the fuel feed pipe and secure with the rear fuel pipe clip.
  3. Connect the fuel tank feed pipe connector (1) to the fuel feed pipe. Refer to Plastic Collar Quick Connect Fitting Service .

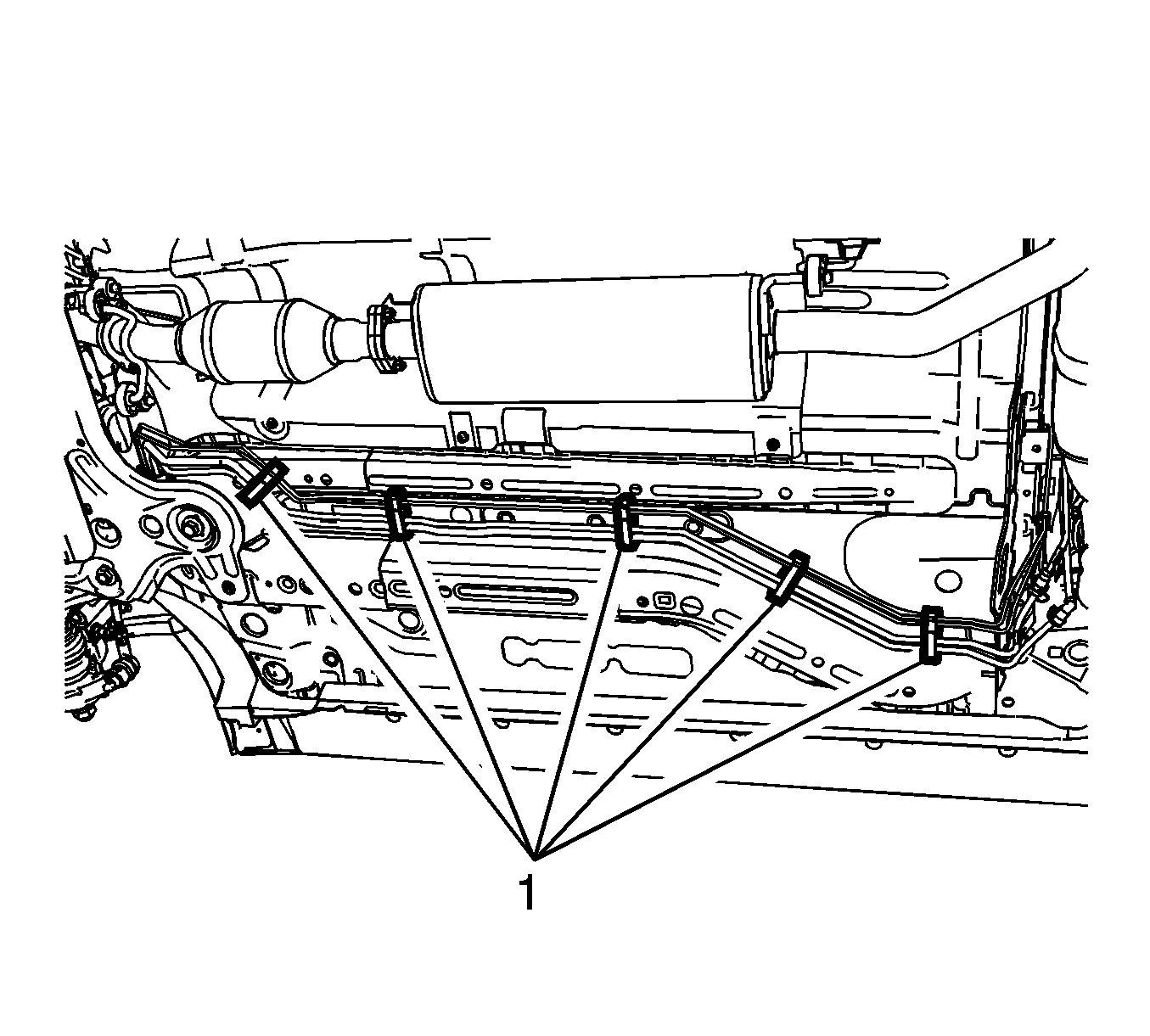

    4. Fig 2: Fuel Pipe Clips
    GM2672361Courtesy of GENERAL MOTORS COMPANY
  4. Close the 5 fuel pipe clips (1).

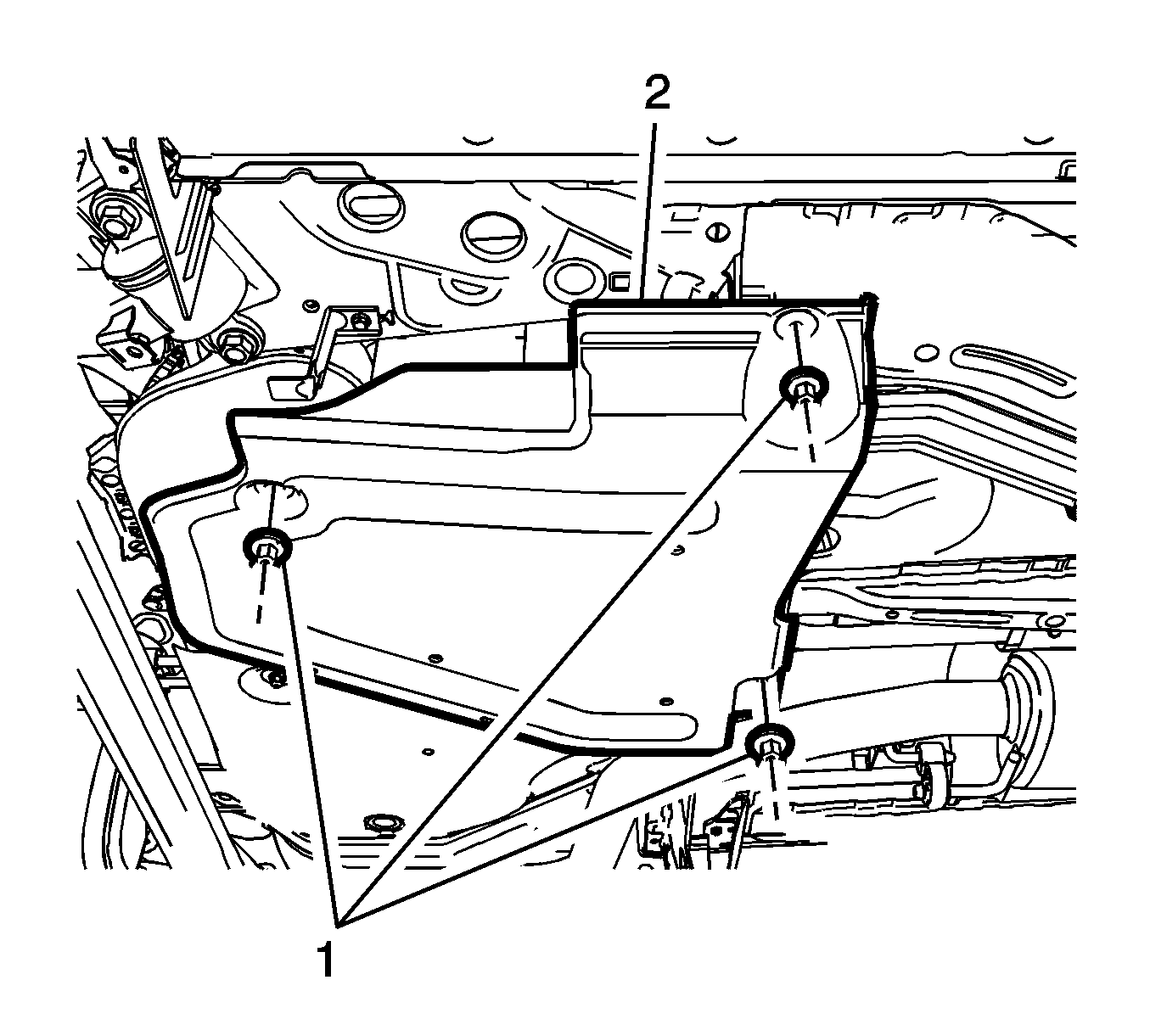

    5. Fig 3: EVAP Canister Cover & Fasteners
    GM2672350Courtesy of GENERAL MOTORS COMPANY
  5. Install the EVAP canister cover (2) and tighten the EVAP canister cover fasteners (1) to 9 N.m (71 lb in).

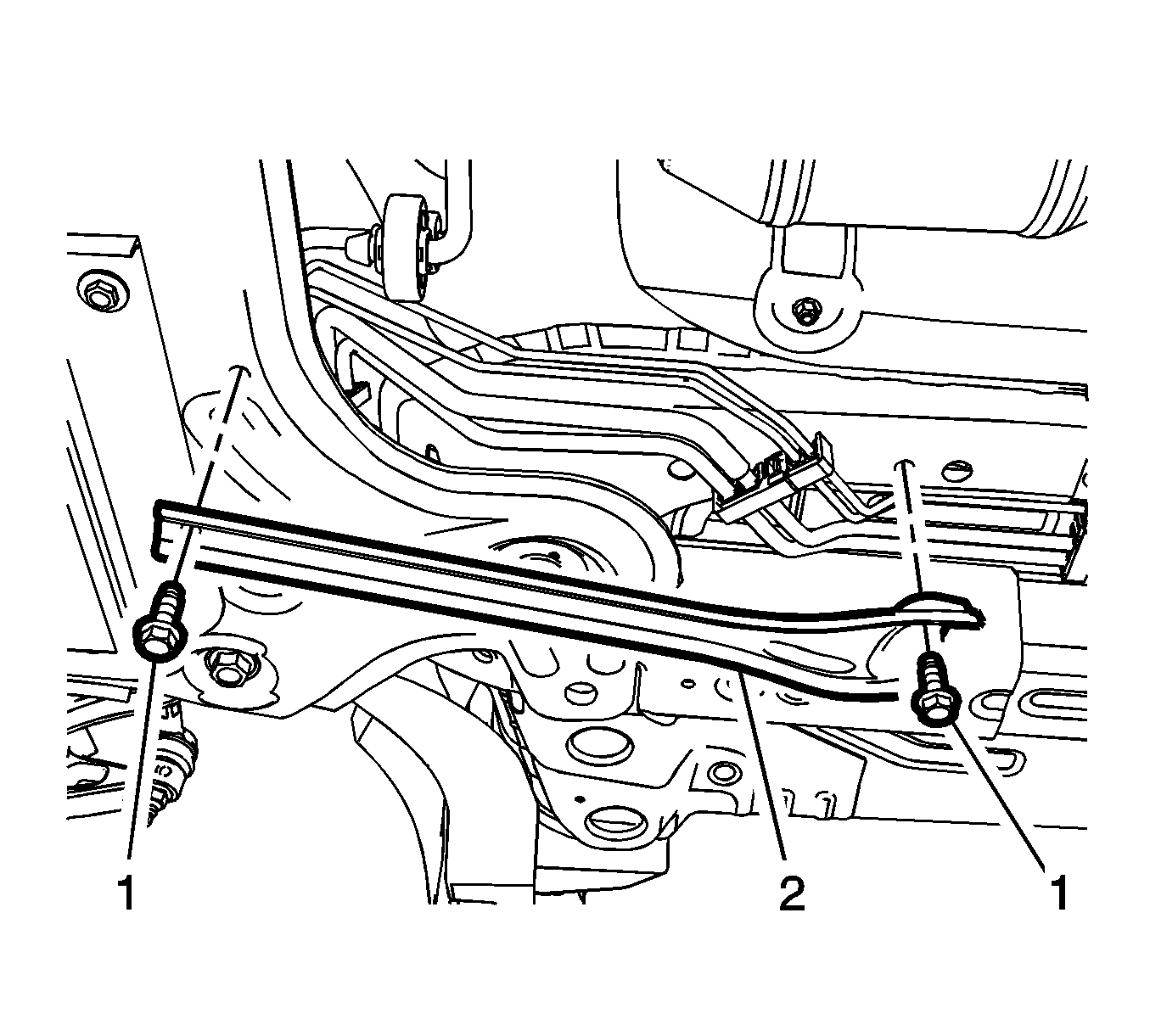

    6. Fig 4: Frame Reinforcement & Fasteners
    GM2672339Courtesy of GENERAL MOTORS COMPANY
  6. Install the frame reinforcement (2) and tighten the frame reinforcement fasteners (1) to 60 N.m (44 lb ft).
  7. Lower the vehicle.

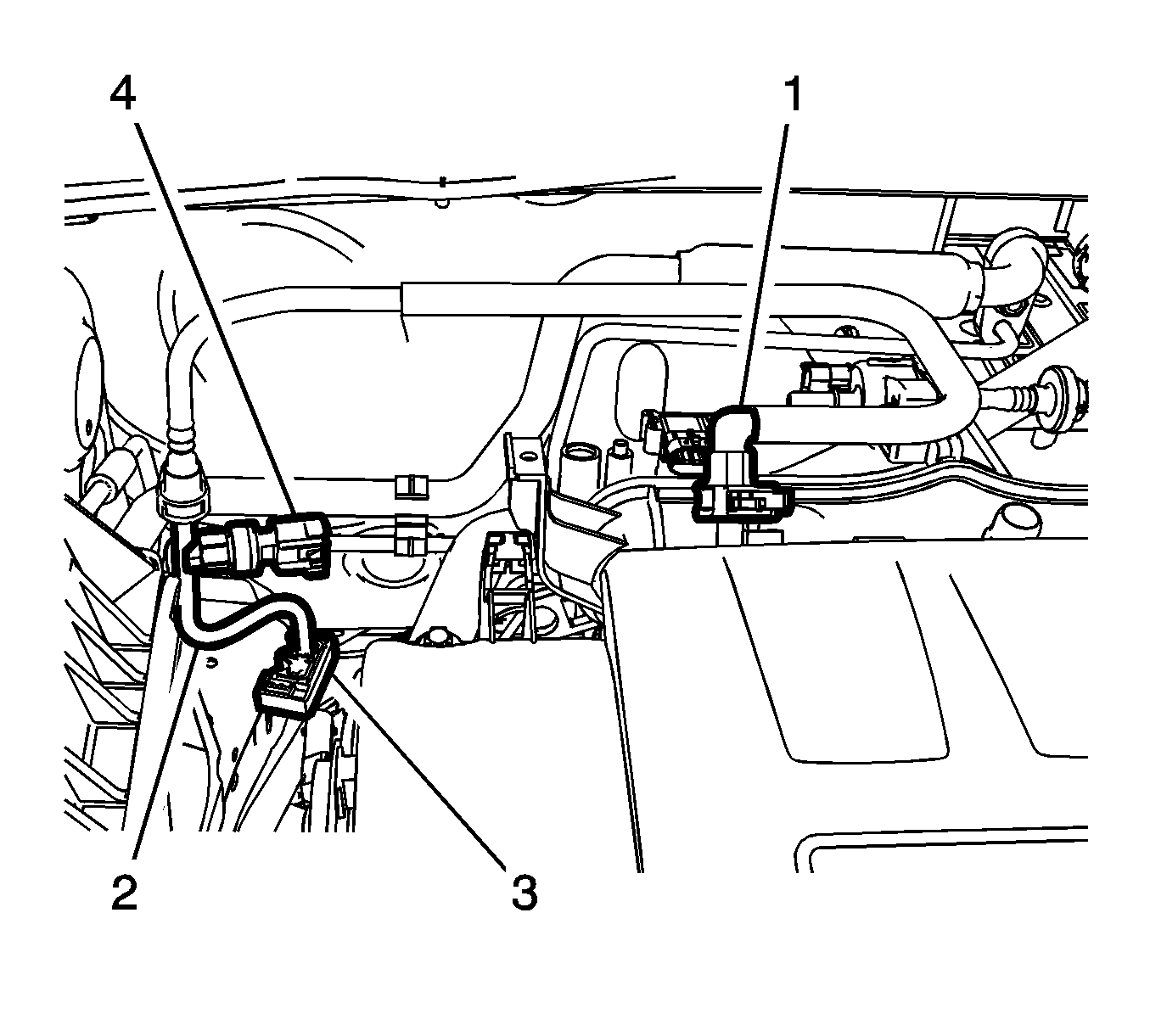

    8. Fig 5: Fuel Feed System Components
    GM2672203Courtesy of GENERAL MOTORS COMPANY
  8. Connect the electrical wiring harness connector to the fuel pressure sensor (4).
  9. Clip the fuel feed pipe (2) into the retainer clip (3).
  10. Remove the CH-807  plugs from the fuel feed pipe connectors.
  11. Connect the front fuel feed pipe connector (1) to the fuel injector rail and the fuel feed pipe(2). Refer to Plastic Collar Quick Connect Fitting Service .
  12. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
