Removal Procedure

Special Tools

CH-6614  Chain Pipe Cutter

For equivalent regional tools, refer to Special Tools .

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle

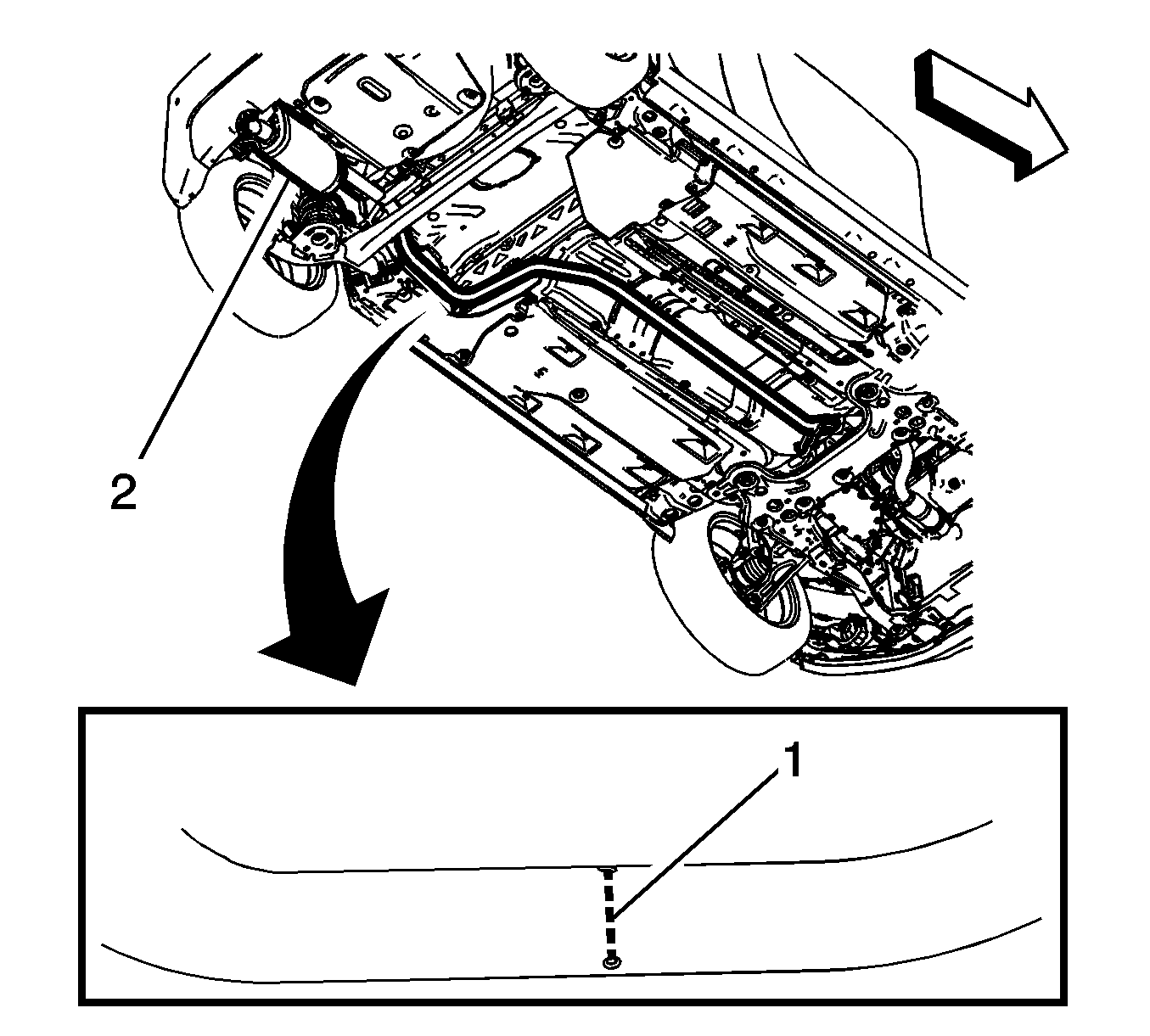

Fig 1: Rear Muffler Cutting Position
Courtesy of GENERAL MOTORS COMPANY
2. Cut the exhaust rear muffler (2) with the CH-6614  pipe cutter at position (1).
Fig 2: Rear Exhaust Muffler & Isolators
Courtesy of GENERAL MOTORS COMPANY
3. Remove the rear exhaust muffler (2) from the exhaust isolators (1).
4. Sand smooth the front exhaust pipe for ease of installation.
5. Remove the exhaust rear muffler.
Fig 3: 3-Way Catalytic Converter & Exhaust Gasket
Courtesy of GENERAL MOTORS COMPANY
6. Remove the exhaust front pipe fasteners (1) and discard the gasket (2).
7. Remove the 3-way catalytic converter (4) from the exhaust isolators (3).
Fig 4: Intermediate Exhaust Components
Courtesy of GENERAL MOTORS COMPANY
8. Lower the intermediate exhaust front muffler pipe (5).
9. Remove and transfer the catalytic converter, if necessary.
