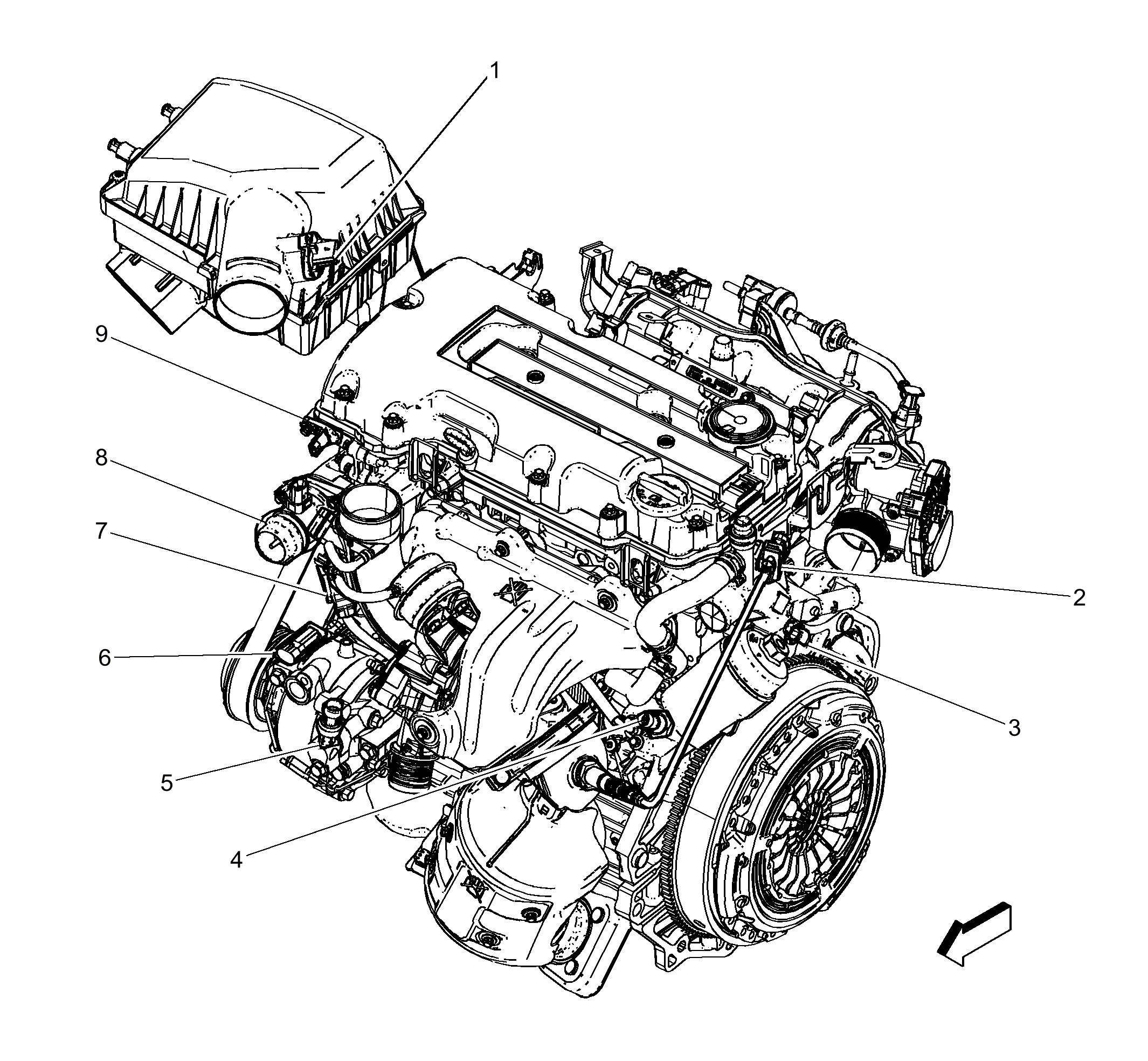

Front of Engine Components - 1.4L (LUV)
Front of Engine Components - 1.4L (LUV)
| Items |
|---|
| 1: B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor |
| 2: B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 (LUV) |
| 3: B34A Engine Coolant Temperature Sensor 1 B34A Engine Coolant Temperature Sensor 1 |
| 4: B37 Engine Oil Pressure Switch B37 Engine Oil Pressure Switch (LUV) |
| 5: B1 A/C Refrigerant Pressure Sensor (C60) B1 A/C Refrigerant Pressure Sensor (C60) |
| 6: Q2 A/C Compressor Clutch (C60) Q2 A/C Compressor Clutch (C60) |
| 7: Q42 Turbocharger Wastegate Solenoid Valve (LUV) Q42 Turbocharger Wastegate Solenoid Valve (LUV) |
| 8: E41 Engine Coolant Thermostat Heater E41 Engine Coolant Thermostat Heater (LUV) |
| 9: B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust |
