Front Side Door Window Rear Guide Replacement

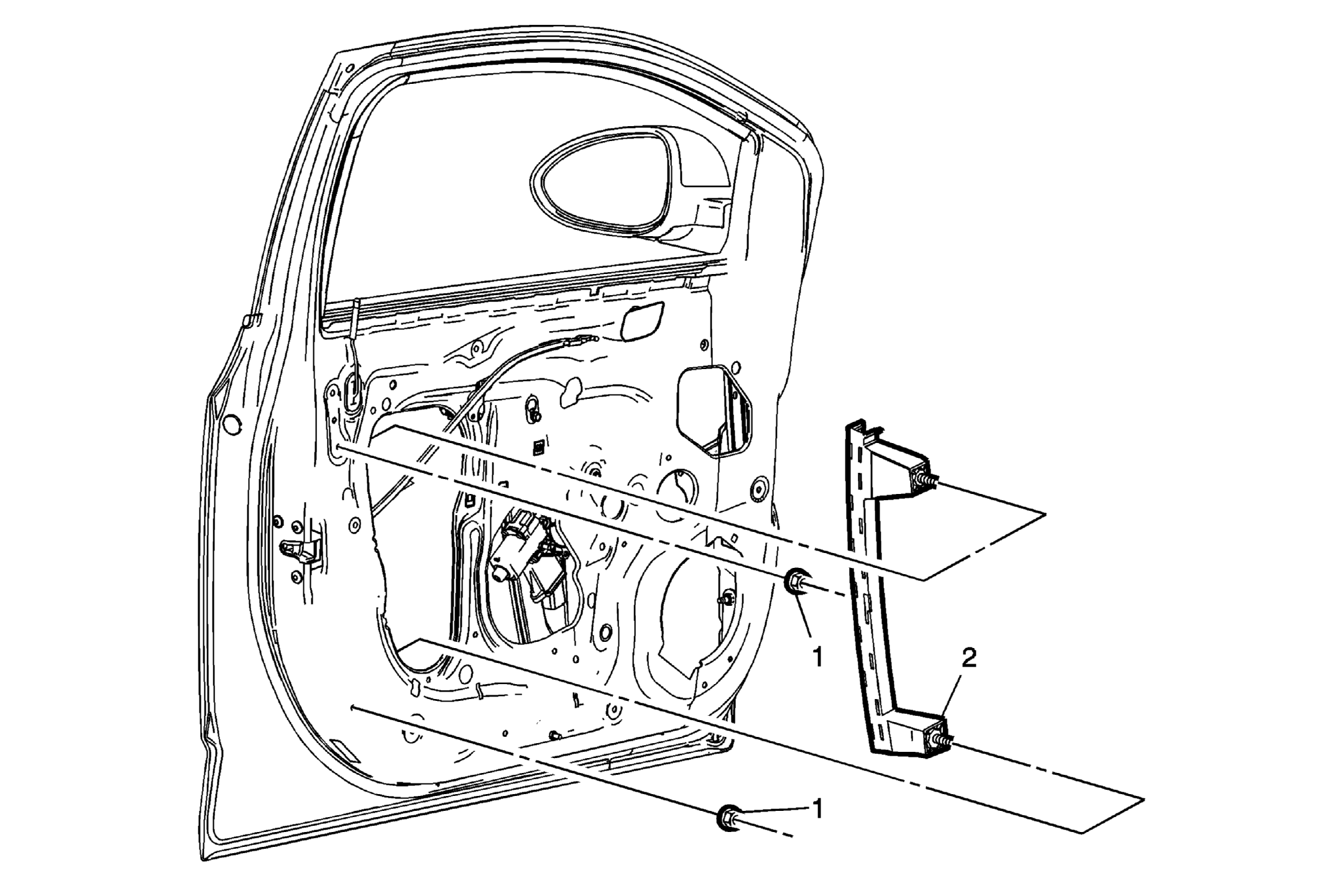

Fig 1: Front Side Door Window Rear Guide

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Replacement .
1	Front Side Door Window Rear Guide Nut (Qty :2) CAUTION: Refer to Fastener Caution . Procedure Remove the front side door water deflector. Do not remove the window from the vehicle, raise the window to the fully up position. Pull the weatherstrip out from the inner channel of the guide. Tighten 11 N.m (97 lb in)
2	Front Side Door Window Rear Guide TIP: Inspect the window for proper operation before installing the trim panel.

Callout

Component Name

Preliminary Procedure
Remove the front side door trim panel. Refer to Front Side Door Trim Replacement .

Front Side Door Window Rear Guide Nut (Qty :2)

CAUTION:

Procedure

Remove the front side door water deflector.
Do not remove the window from the vehicle, raise the window to the fully up position.
Pull the weatherstrip out from the inner channel of the guide.

Tighten
11 N.m (97 lb in)

Front Side Door Window Rear Guide
TIP: Inspect the window for proper operation before installing the trim panel.
