Windshield Washer Solvent Container Level Sensor Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 GMC Sierra 3500 HD, 2016 GMC Sierra 2500 HD, 2016 GMC Sierra 1500, 2016 Chevrolet Silverado 3500 HD, and 2016 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

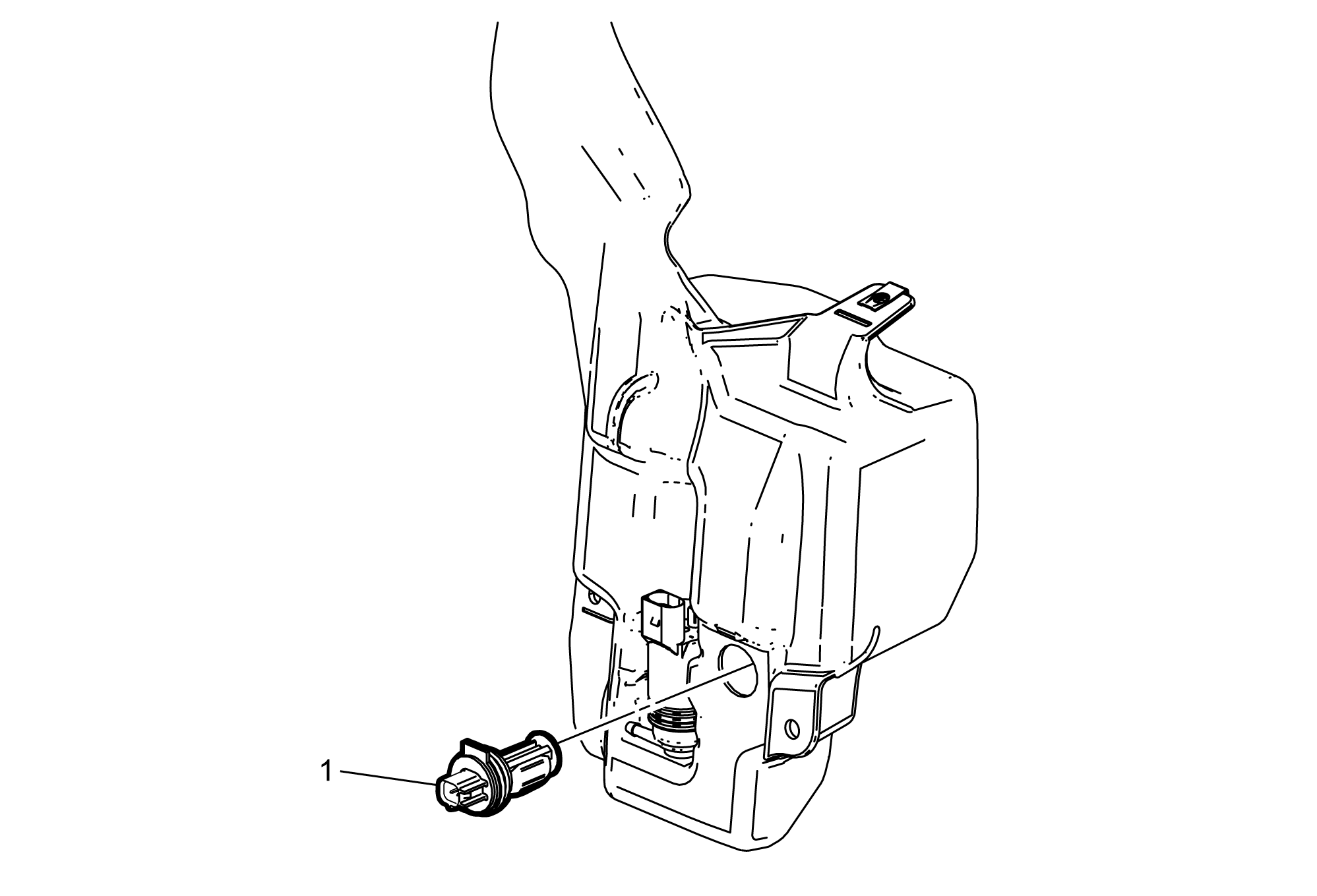

Fig 1: Windshield Washer Solvent Container Level Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement (LD) Windshield Washer Solvent Container Replacement (Diesel) Windshield Washer Solvent Container Replacement (HD) .
1	Windshield Washer Solvent Level Sensor Procedure Disconnect the electrical connector from the windshield washer solvent level sensor. Place a clean suitable drain pan under the windshield washer solvent container to secure the windshield washer solvent when the level sensor and grommet are removed. Using two flat-bladed tools, place the ends of the flat blades under each side of the windshield washer solvent level sensor grommet. Twisting in opposite directions, pry outward, the level sensor from the washer solvent container. Remove and discard the windshield washer level sensor grommet and replace with new.

Callout

Component Name

Preliminary Procedure
Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement (LD) Windshield Washer Solvent Container Replacement (Diesel) Windshield Washer Solvent Container Replacement (HD) .

Windshield Washer Solvent Level Sensor

Procedure

Disconnect the electrical connector from the windshield washer solvent level sensor.
Place a clean suitable drain pan under the windshield washer solvent container to secure the windshield washer solvent when the level sensor and grommet are removed.
Using two flat-bladed tools, place the ends of the flat blades under each side of the windshield washer solvent level sensor grommet.
Twisting in opposite directions, pry outward, the level sensor from the washer solvent container.
Remove and discard the windshield washer level sensor grommet and replace with new.
