Serial Data Communication Enable

WARNING: This page is about a different car, the 2012 GMC Sierra, 2012 GMC Cab & Chassis Sierra, 2012 Chevrolet Silverado, and 2012 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

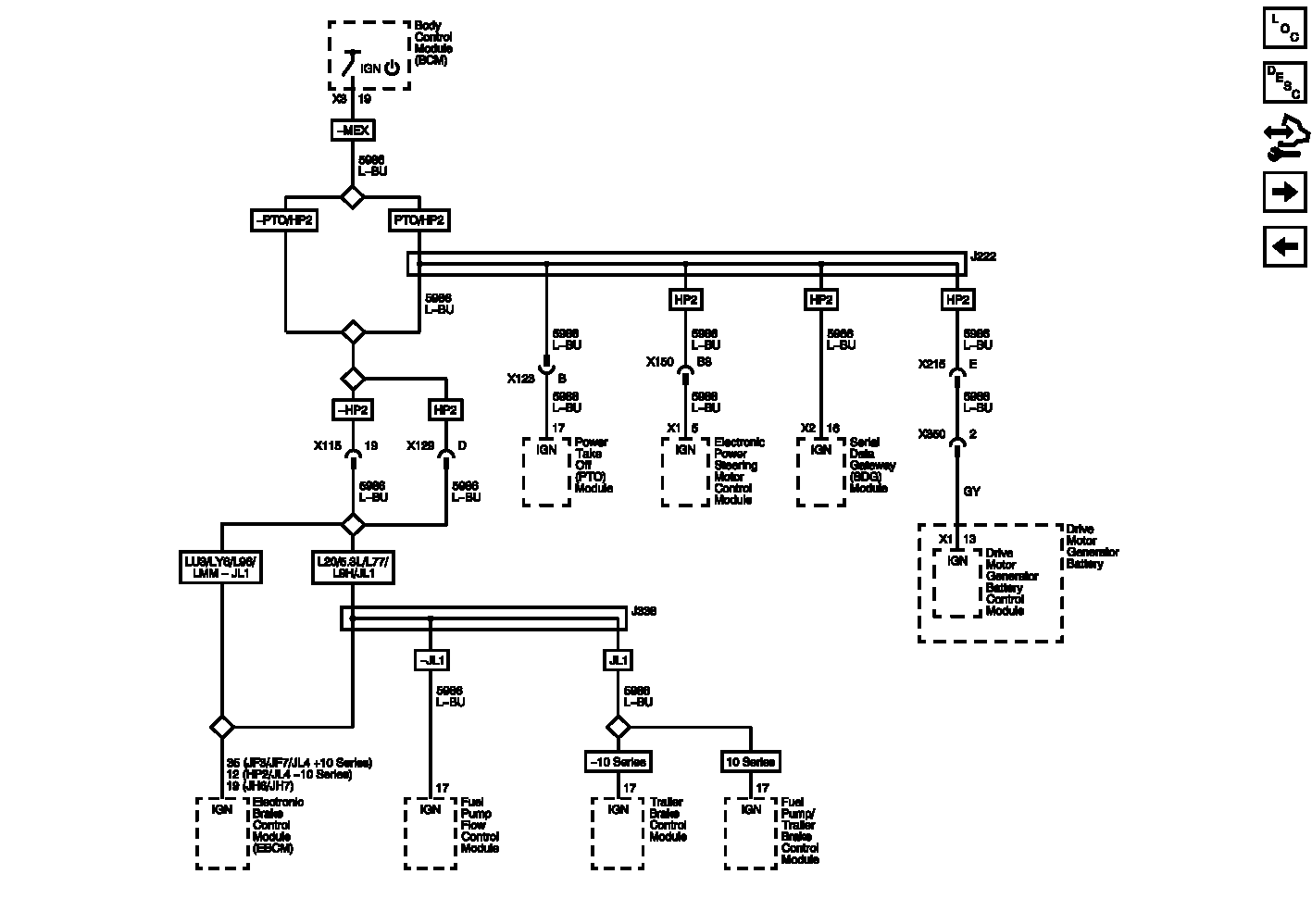

Fig 1: Serial Data Communication Enable Wiring Schematic
GM2608814Courtesy of GENERAL MOTORS COMPANY
