Rear Toe Adjustment

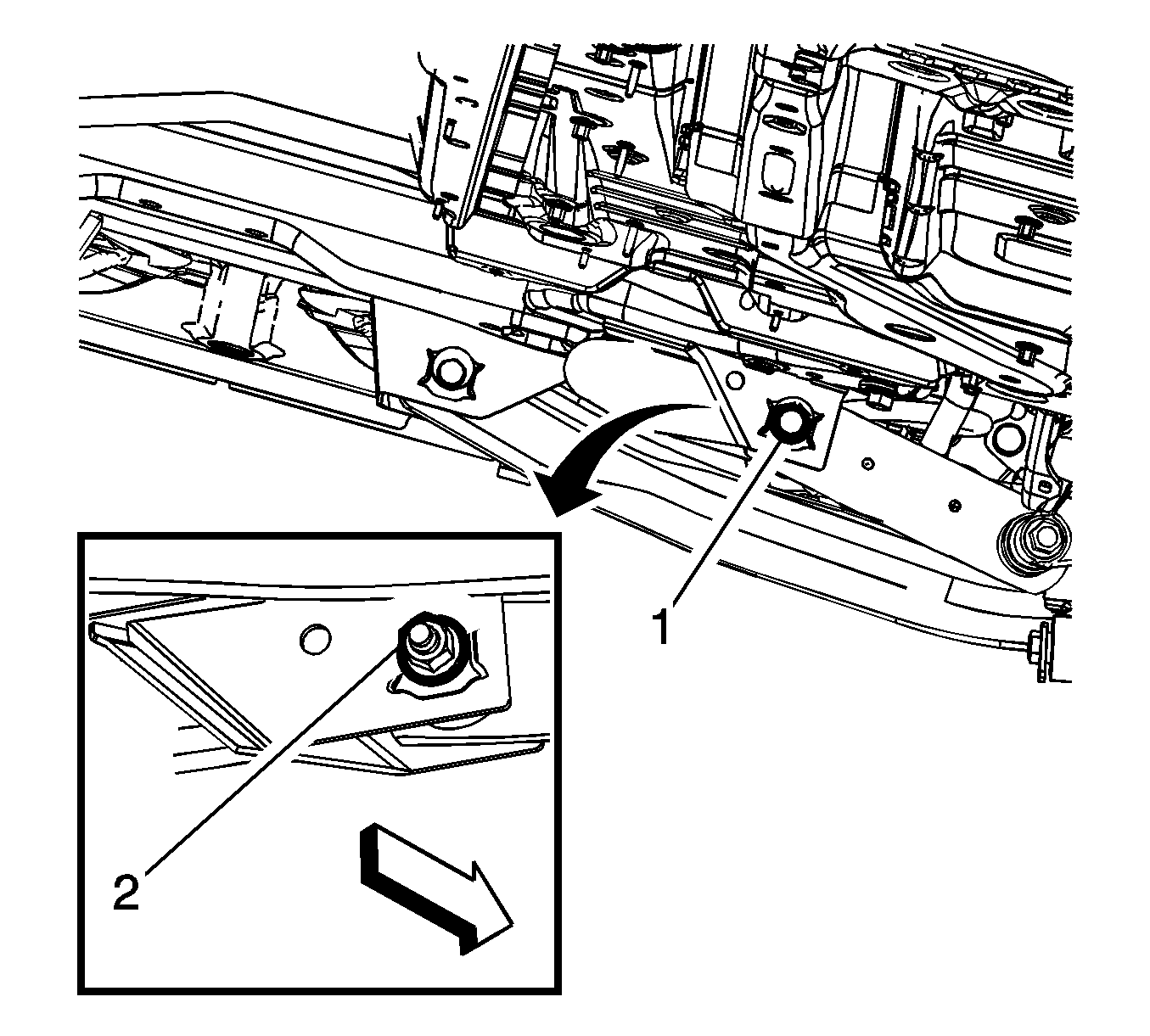

    Fig 1: Control Arm Bolt
    GM2778779Courtesy of GENERAL MOTORS COMPANY
  1. Verify the alignment on an alignment rack. Refer to Wheel Alignment Measurement .
    2. CAUTION:

    This bolt is designed to permanently stretch when tightened, and therefore MUST be replaced anytime it is removed. The correct part number fastener must be used to replace this type of fastener. Do not use a bolt that is stronger in this application. If the correct bolt is not used, the parts will not be tightened correctly. The system or the components may be damaged.

  2. Remove and discard the control arm bolt (1). DO NOT re-use, replace with NEW only.
  3. Install the NEW control arm bolt (1).
  4. Rotate the rear suspension link inner nut (2) in order to adjust the toe angle. Refer to Wheel Alignment Measurement .
    5. NOTE:

    Do not tighten the NEW bolts. Leave the NEW bolts loose to allow for adjustment.

  5. Hand tighten the rear suspension link inner nut (2), but do not tighten the nut (2) to the specification yet.
  6. Verify the rear toe angle and adjust as necessary.
    7. CAUTION:

    Refer to Fastener Caution .

    NOTE:

    Hold the suspension bolt so as not to allow it to rotate in either direction.

  7. Tighten the rear suspension link inner nut (2) to:

    Tighten

    • First Pass 90 (66 lb ft)
    • Final Pass plus 60 degrees
  8. Tighten the rear suspension link outer nut to:

    Tighten

    • First Pass 115 (85 lb ft)
    • Final Pass plus 90 degrees
  9. Lower the vehicle.
