Left Rear of Engine Components (LCV)

Left Rear of Engine Components (LCV)

Items
1:  X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X4X50A Fuse Block - Underhood X5X50A Fuse Block - Underhood X6
2:  K20 Engine Control Module K20 Engine Control Module X1K20 Engine Control Module X2 (LCV)K20 Engine Control Module X2 (LTG, LUK)K20 Engine Control Module X3 (LCV, LTG)K20 Engine Control Module X3 (LUK)
3:  Q29 Secondary Air Injection Solenoid Valve (NU6/LCV) Q29 Secondary Air Injection Solenoid Valve (NU6)
4:  Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LCV, LTG)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LUK)
5:  B75C Multifunction Intake Air Sensor (LCV, LTG) B75C Multifunction Intake Air Sensor (LCV, LTG)
6:  Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake (LCV, LTG)Q6F Camshaft Position Actuator Solenoid Valve - Intake (LUK)
7:  M64 Starter Motor M64 Starter Motor (LCV, LTG)M64 Starter Motor (LUK)
8:  G21 Secondary Air Injection Pump (LCV, LUK) G21 Secondary Air Injection Pump (LCV, LUK)
9:  K43 Power Steering Control Module (NJ1) K43 Power Steering Control Module X1K43 Power Steering Control Module X2K43 Power Steering Control Module X3

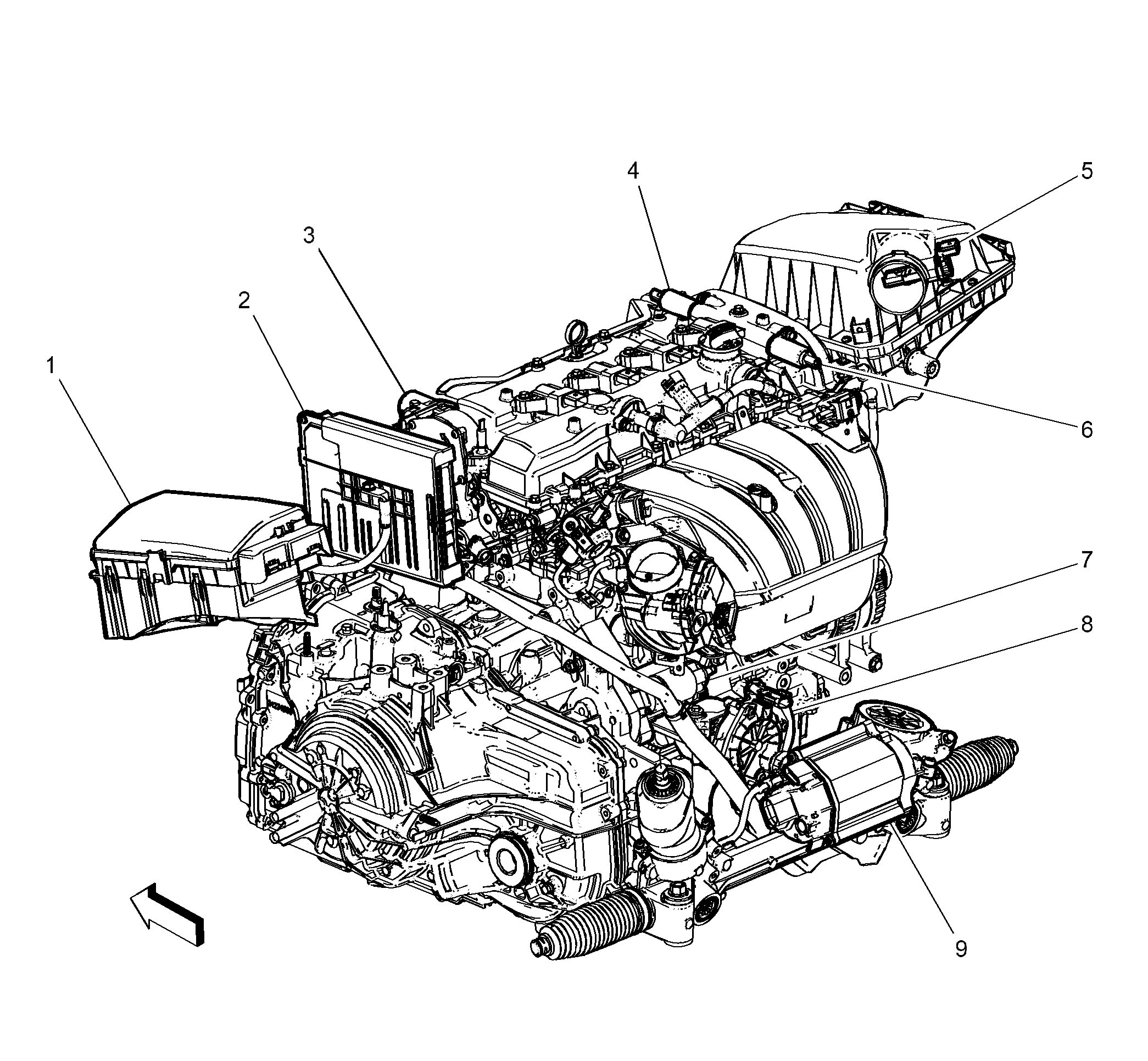

Fig 1: Left Rear of Engine Components (LCV)

Courtesy of GENERAL MOTORS COMPANY
