Power Steering Fluid Reservoir Replacement

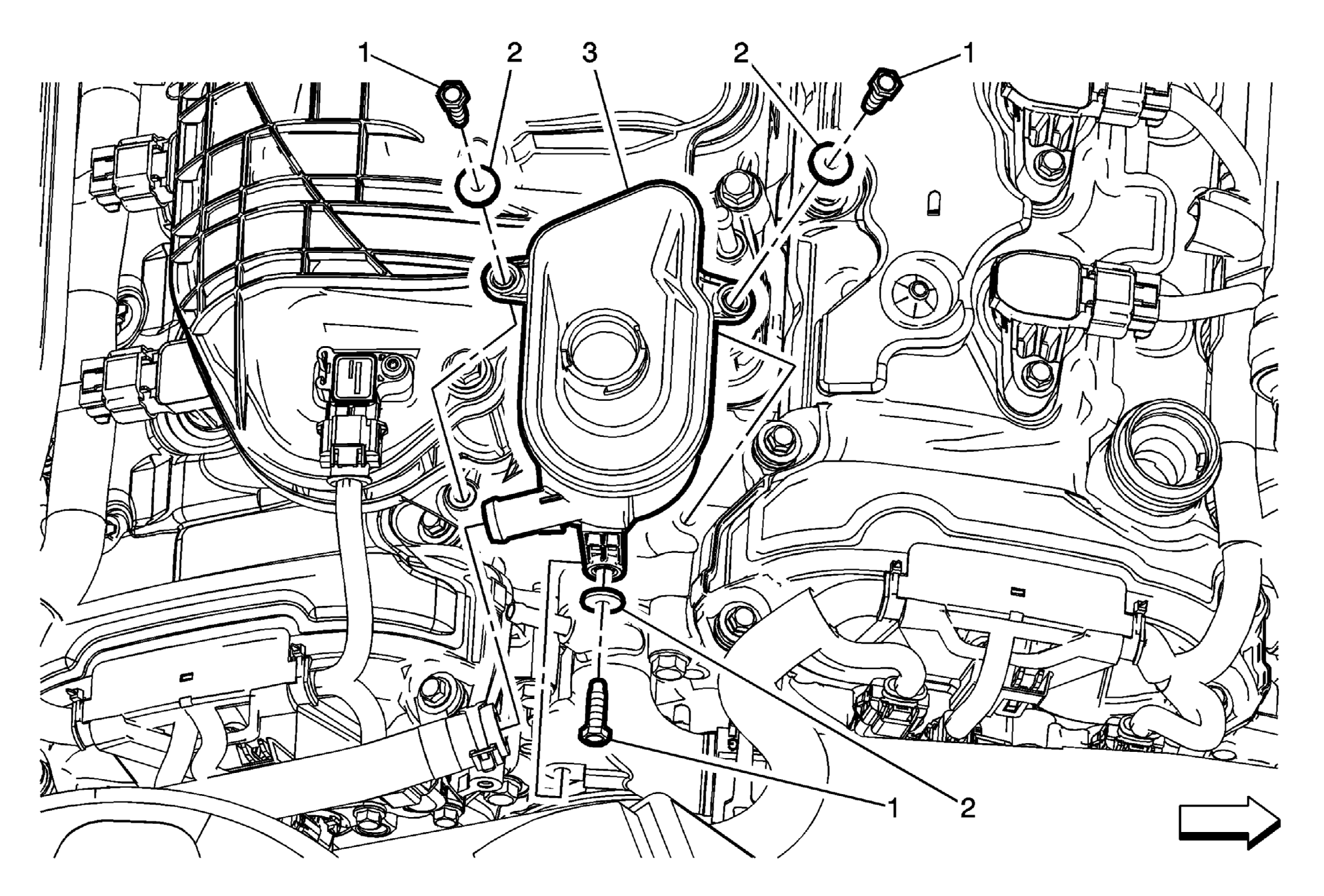

Fig 1: Power Steering Fluid Reservoir Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Place drain pans under the vehicle. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Remove as much power steering fluid from the power steering fluid reservoir as possible. Position the surge tank inlet hose away from the power steering fluid reservoir. Refer to Radiator Surge Tank Inlet Hose Replacement . Disconnect the power steering fluid reservoir hose from the power steering fluid reservoir.
1	Power Steering Fluid Reservoir Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Power Steering Fluid Reservoir Washer (Qty: 3)
3	Power Steering Fluid Reservoir Procedure Fill and bleed the power steering system. Refer to Power Steering System Bleeding . Clean any excess power steering fluid from the vehicle. Remove the drain pans.
