Bottom Center of the Instrument Panel (without D55)

Bottom Center of the Instrument Panel (without D55)

Component Name Callout
Instrument Panel 1
Accessory Power Outlet- I/P 2 2
Accessory Power Outlet- I/P 1 3
Accessory Power Outlet- Center Seat 4

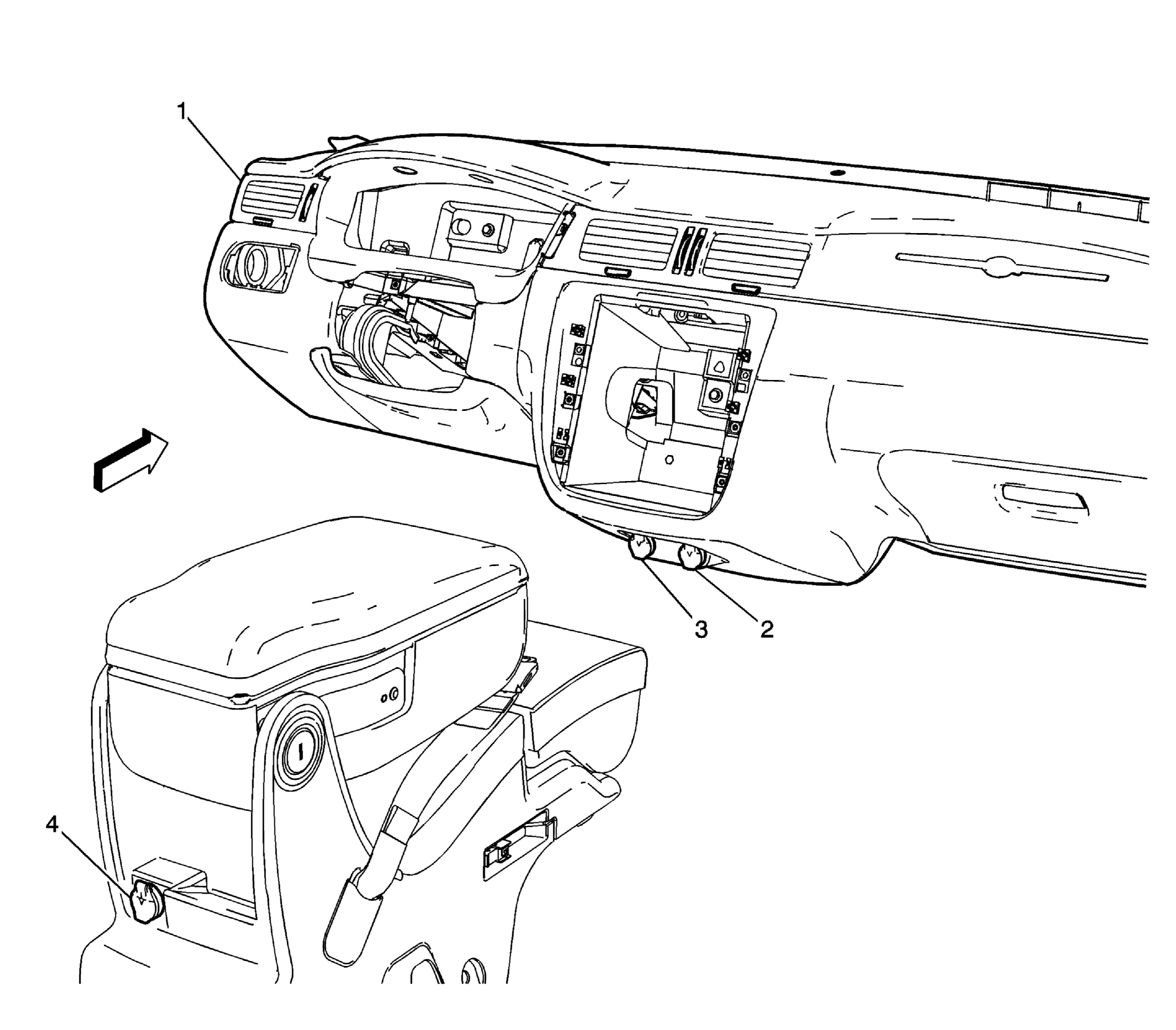

Fig 1: Auxiliary Power Outlets Sedan (w/Column Shifter)
GM1700264Courtesy of GENERAL MOTORS COMPANY
