Impala LS
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Electrical Component Locations
>>
Electrical Component Locator - Ground Views
>>
Ground Views
>>
G302
Ground Views: G302
G302
Component Name
Callout
X302
1
X360 (9C1 or 9C3)
2
G302
3
X356
4
X313
5

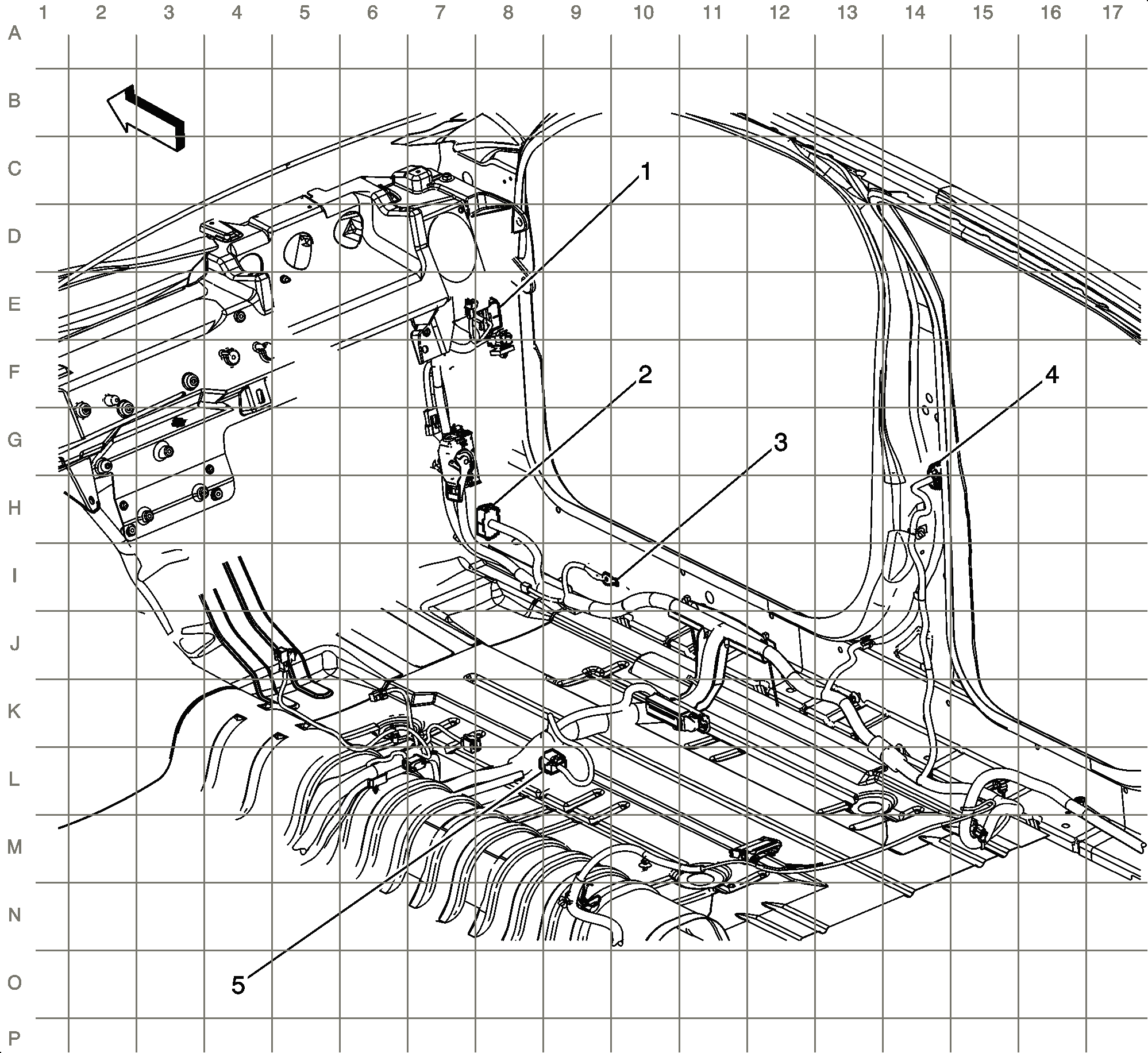

Fig 1: Body Harness Ground View - Right Front Passenger Compartment
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
