Sunroof Switch Replacement (Impala)

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

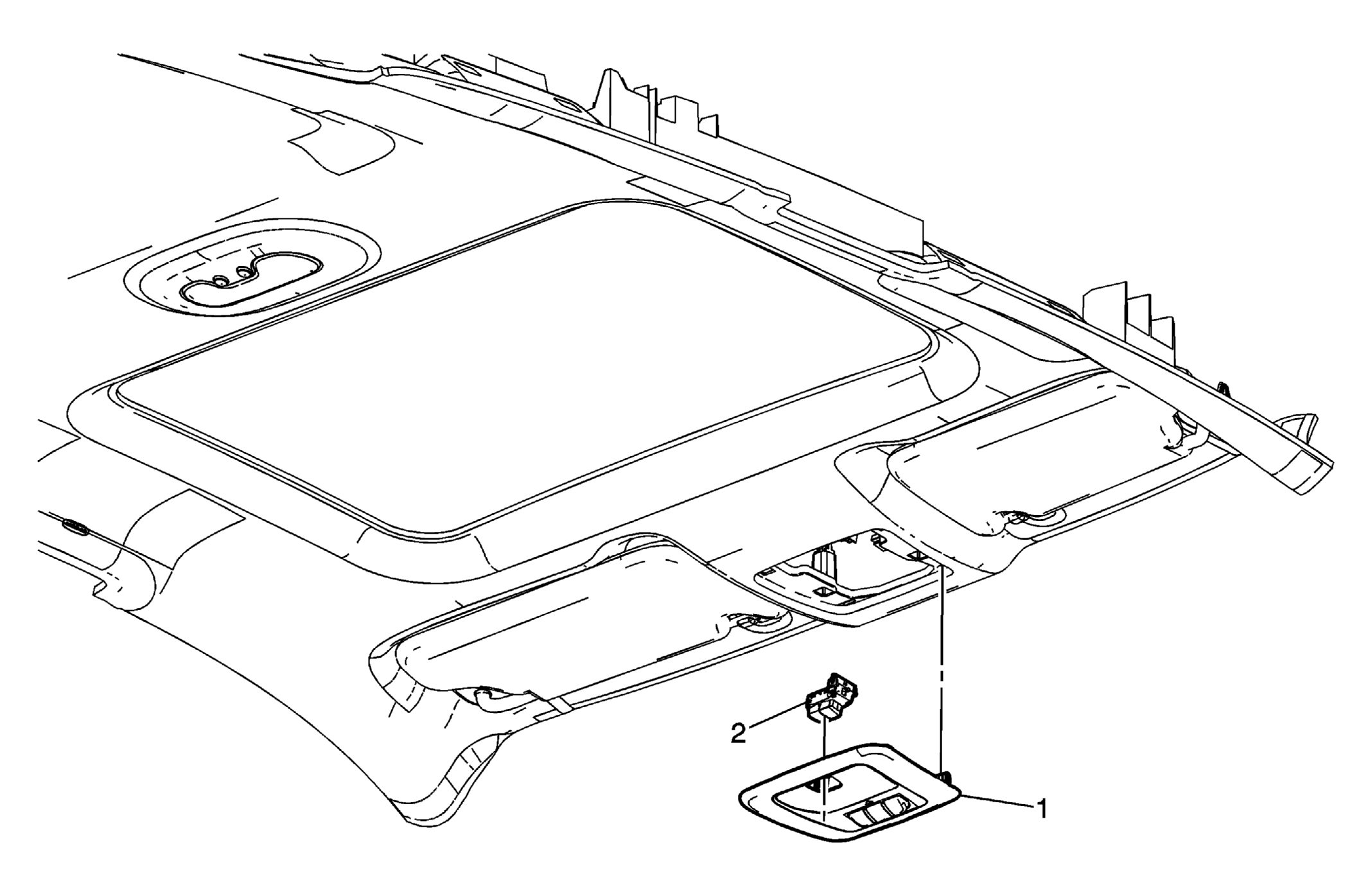

Fig 1: Replacing Sunroof Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Overhead Console Assembly Refer to Console Replacement - Overhead Tip: Disconnect the electrical connector.
2	Sunroof Switch Assembly
