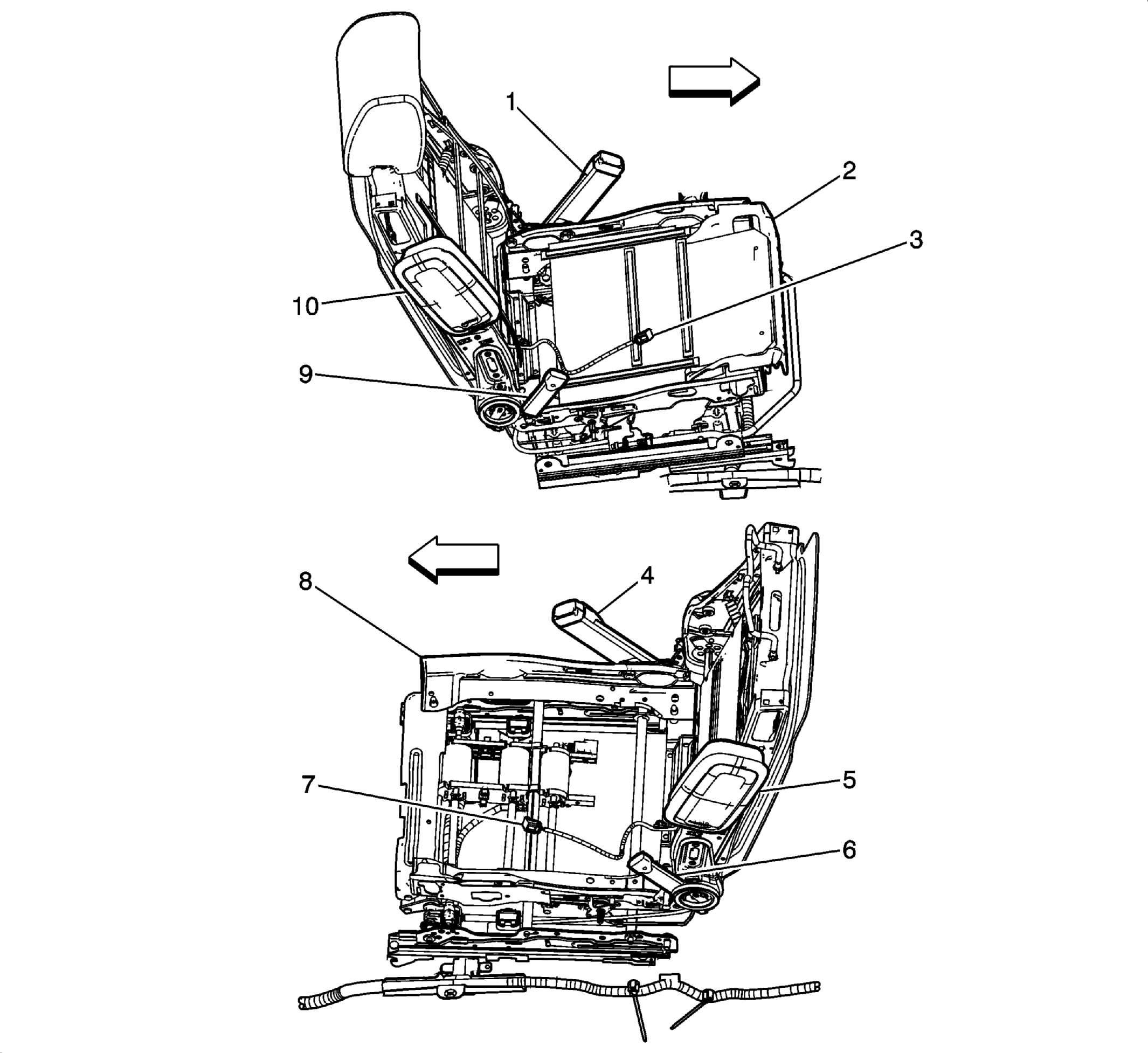

Front Seat Airbag Components
Front Seat Airbag Components
| Component Name | Callout |
|---|---|
| Seat Belt Buckle- Passenger | 1 |
| Passenger Seat | 2 |
| X315 | 3 |
| Seat Belt Buckle- Driver | 4 |
| Inflatable Restraint Side Impact Module- Left | 5 |
| Seat Belt Anchor- Driver | 6 |
| X316 | 7 |
| Driver Seat | 8 |
| Seat Belt Anchor- Passenger | 9 |
| Inflatable Restraint Side Impact Module- Right | 10 |
