Removal Procedure

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the drive belt idler pulley. Refer to Drive Belt Idler Pulley Replacement .
  3. Remove the right engine mount strut. Refer to Engine Mount Strut Replacement - Right Side .

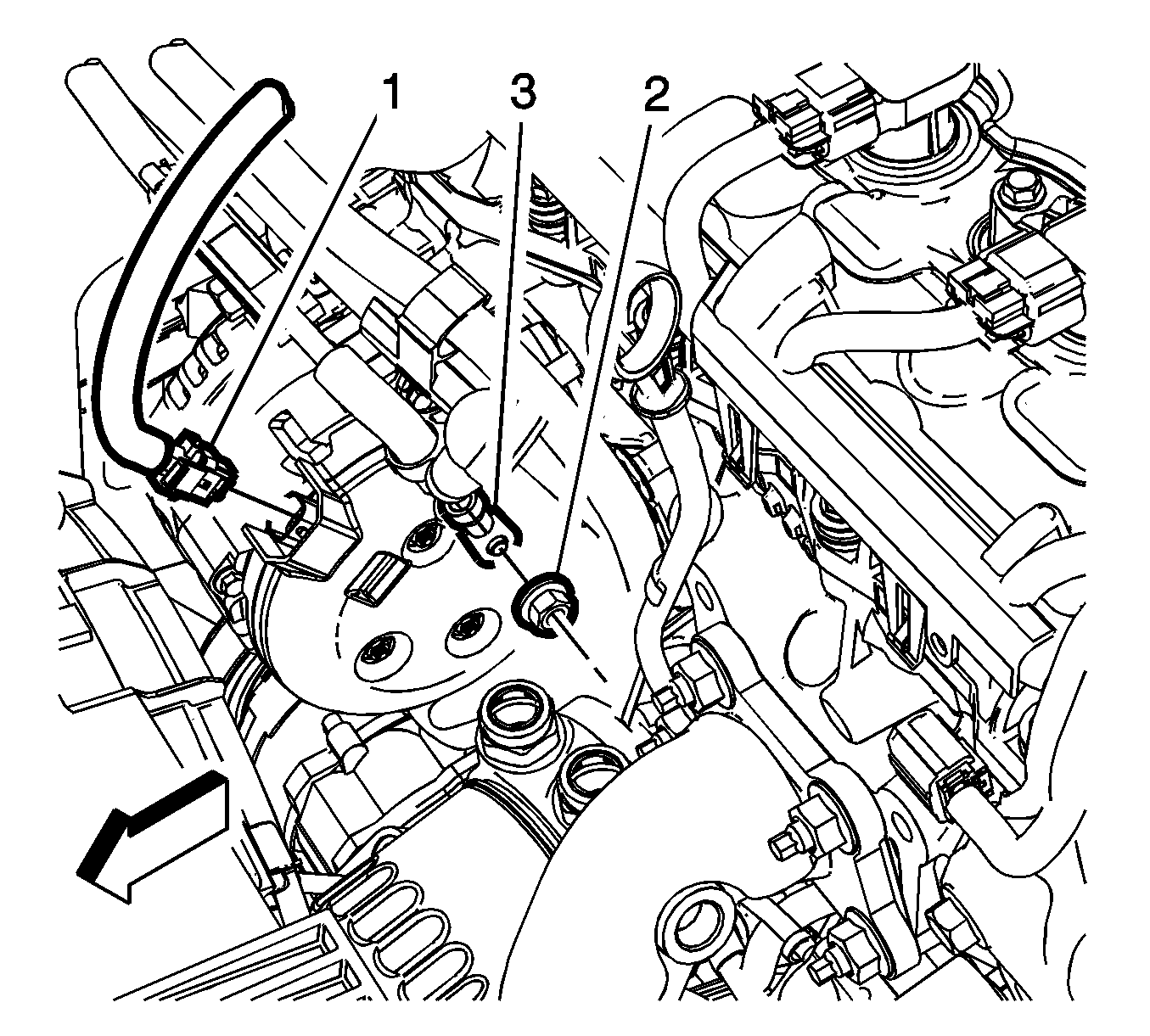

    4. Fig 1: Battery Positive Cable And Fastener
    GM2632488Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect the engine harness connector (1) and remove the battery positive fastener (2).
  5. Remove the battery positive cable (3).

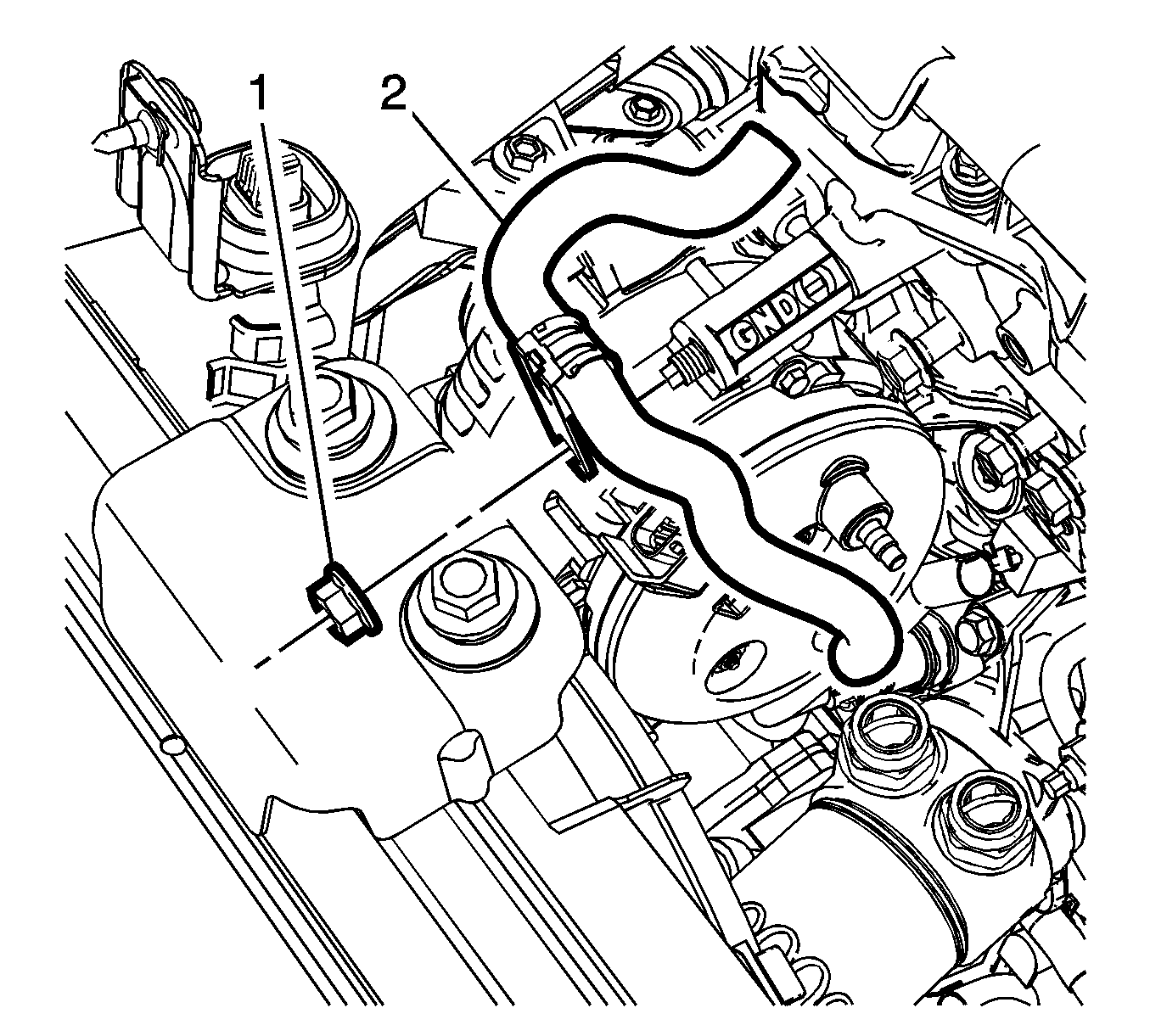

    6. Fig 2: Engine Harness And Generator Fastener
    GM2632484Courtesy of GENERAL MOTORS COMPANY
  6. Remove the generator fastener (1) and the engine harness (2), from the generator.

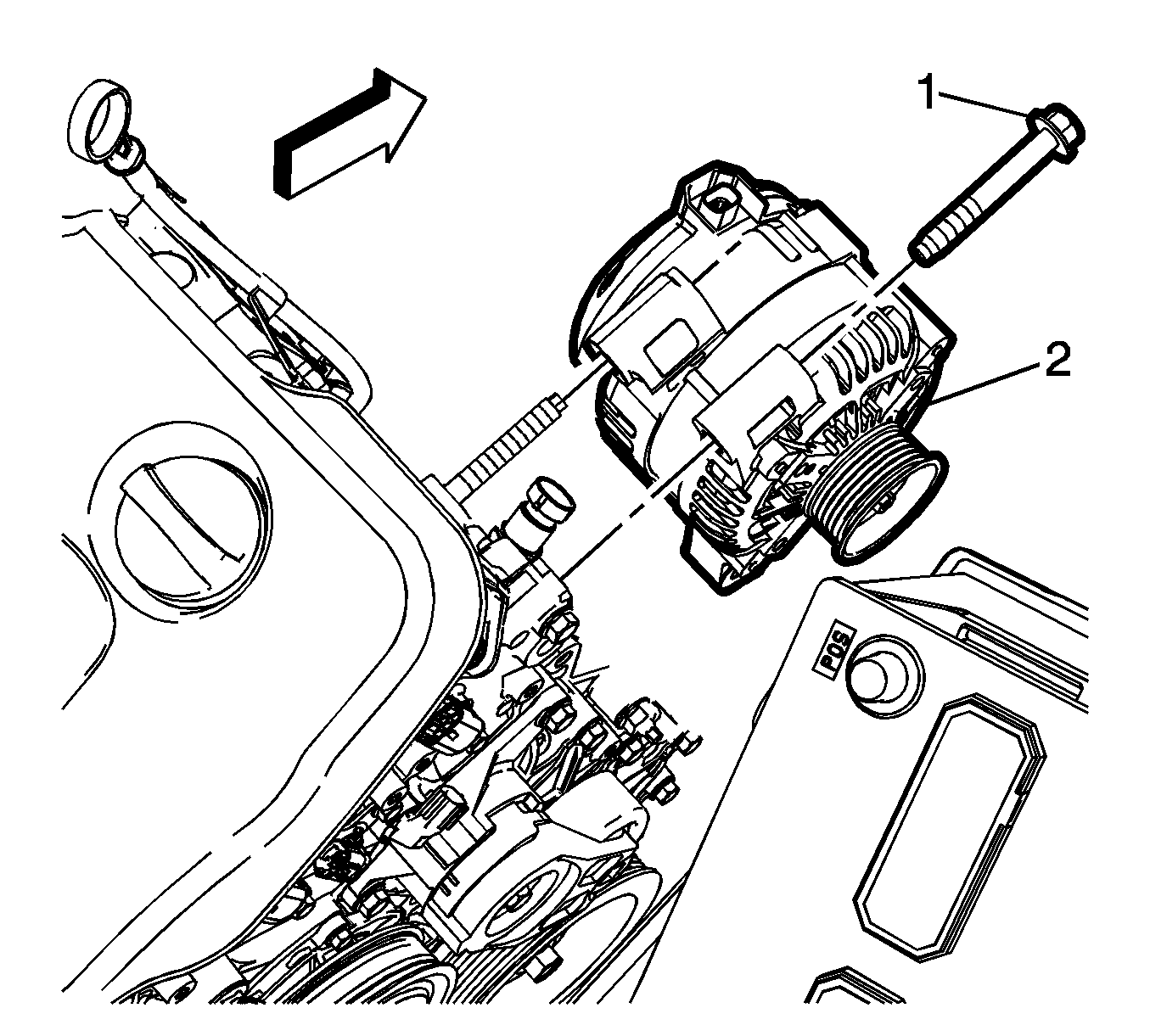

    7. Fig 3: Generator And Fastener
    GM2632483Courtesy of GENERAL MOTORS COMPANY
  7. Remove the generator mounting fastener (1) and remove the generator (2).
