Removal Procedure

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the accessory wiring junction block. Refer to Accessory Wiring Junction Block Replacement .
  3. Remove the right front diagonal brace. Refer to Front Fender Upper Diagonal Brace Replacement .
    4. Fig 1: Battery Positive Clamp
    GM2632490Courtesy of GENERAL MOTORS COMPANY
  4. Open the positive battery cable terminal cover and release the positive cable clamp (1).
  5. Remove the positive battery cable from the battery.

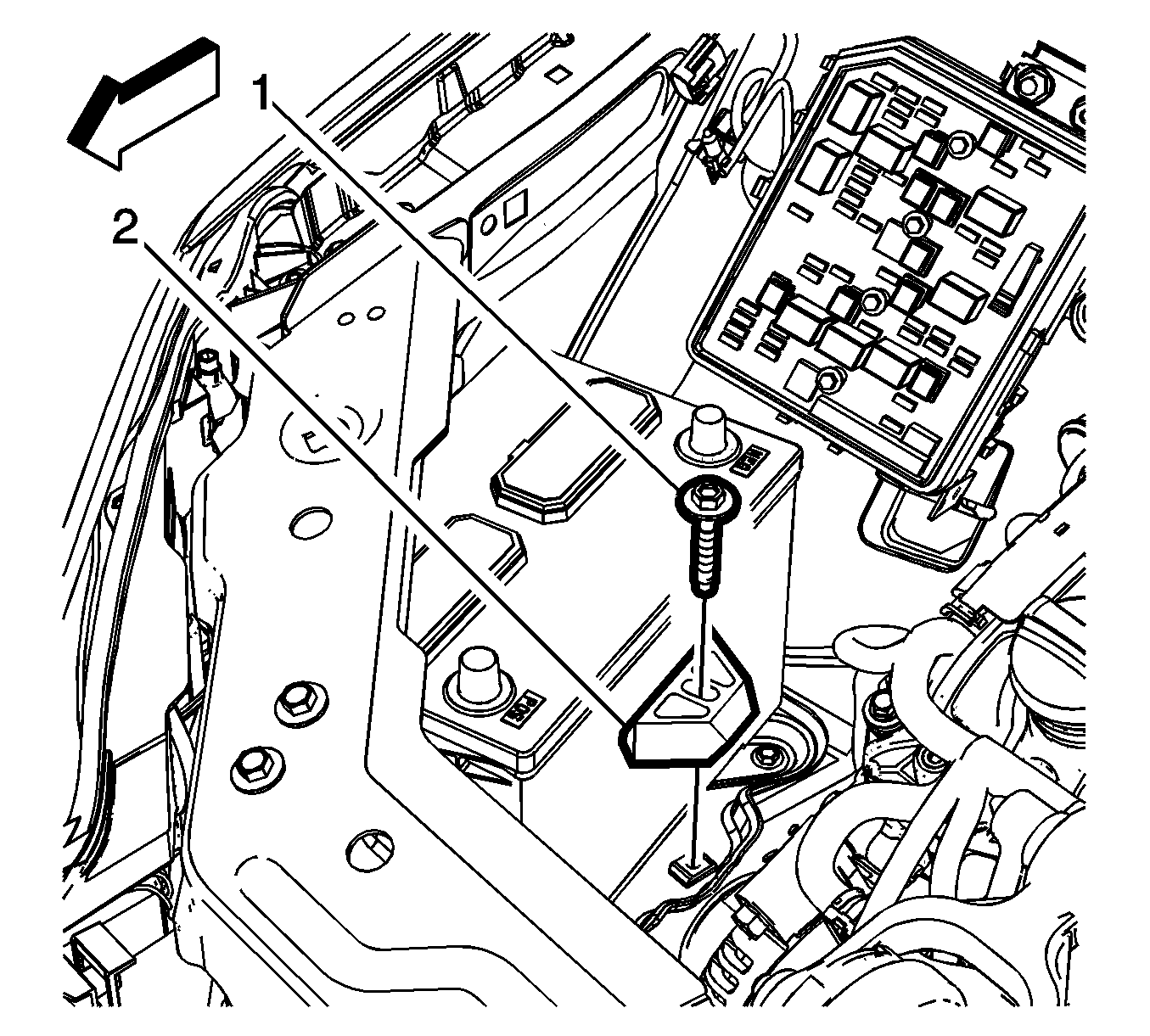

    6. Fig 2: Retainer And Fastener
    GM2632463Courtesy of GENERAL MOTORS COMPANY
  6. Remove the battery hold down fastener (1) and hold down retainer (2).
    7. Fig 3: Battery
    GM2632461Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not tip the battery more than 40 degrees during removal.

  7. Remove the battery (1).

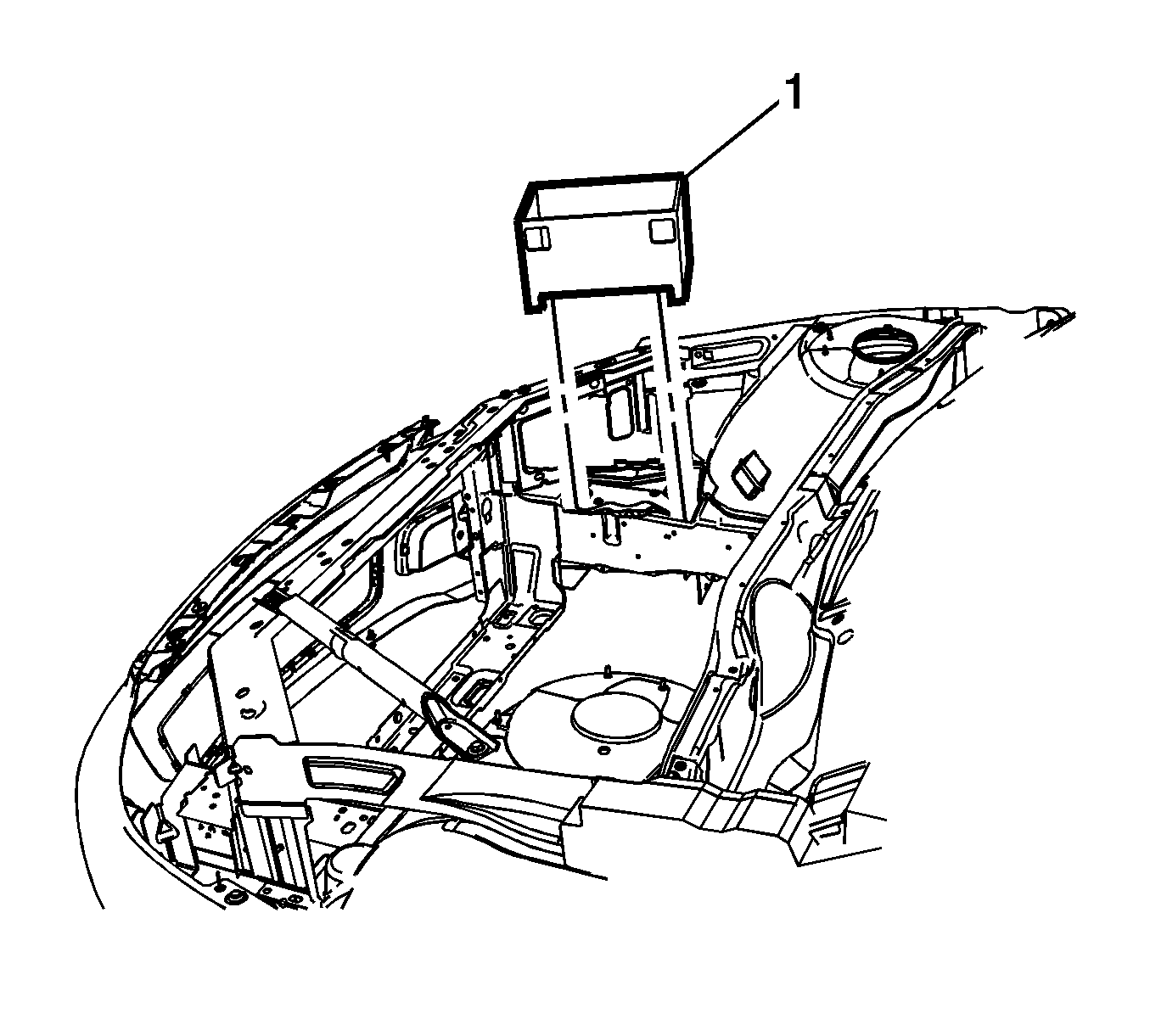

    8. Fig 4: Battery Insulator
    GM2716310Courtesy of GENERAL MOTORS COMPANY
  8. Remove the battery insulator.
