Installation Procedure

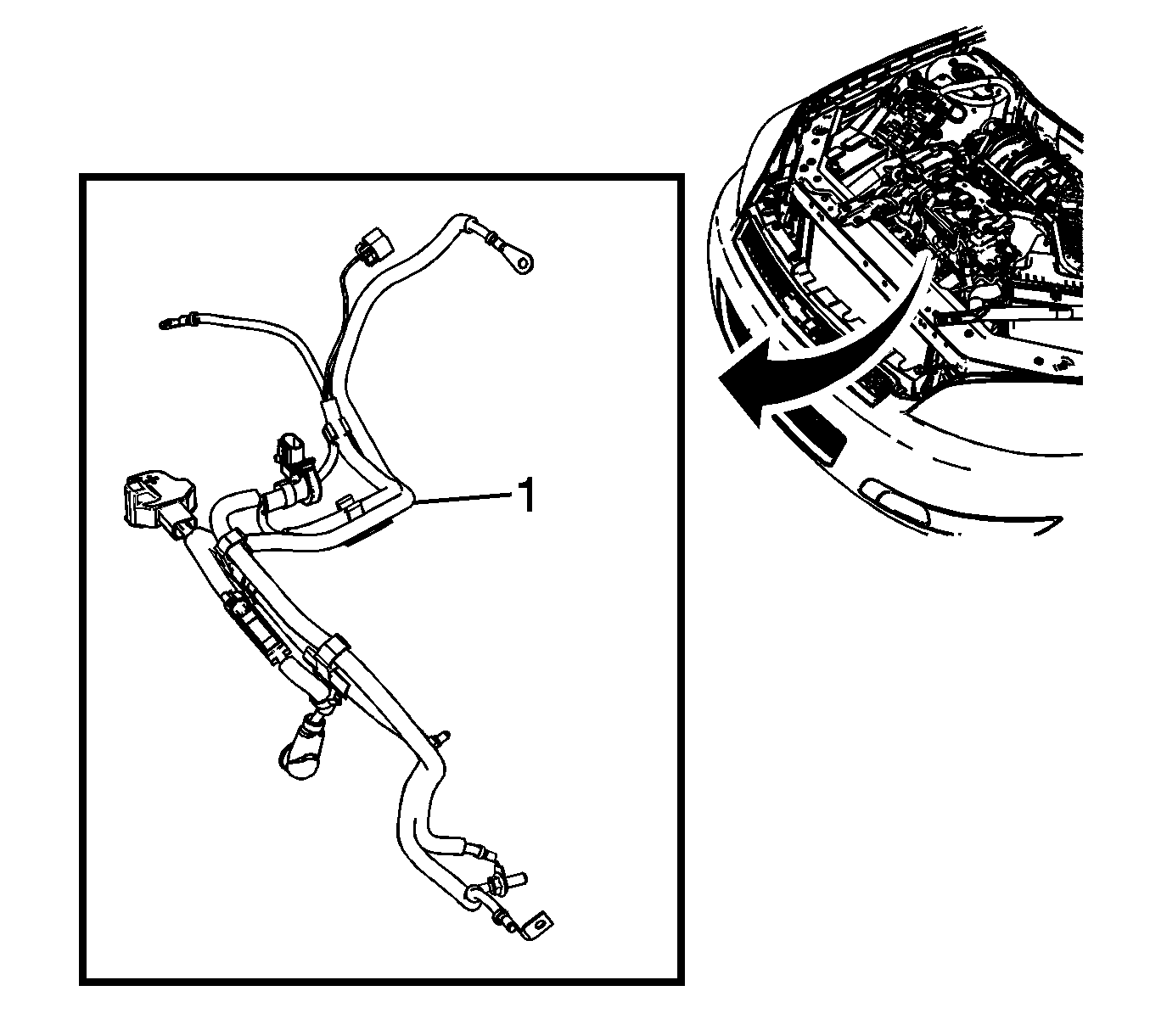

    Fig 1: Battery Positive And Negative Cable
    GM2632465Courtesy of GENERAL MOTORS COMPANY
  1. Route the battery positive and negative cable (1) into the front engine compartment.

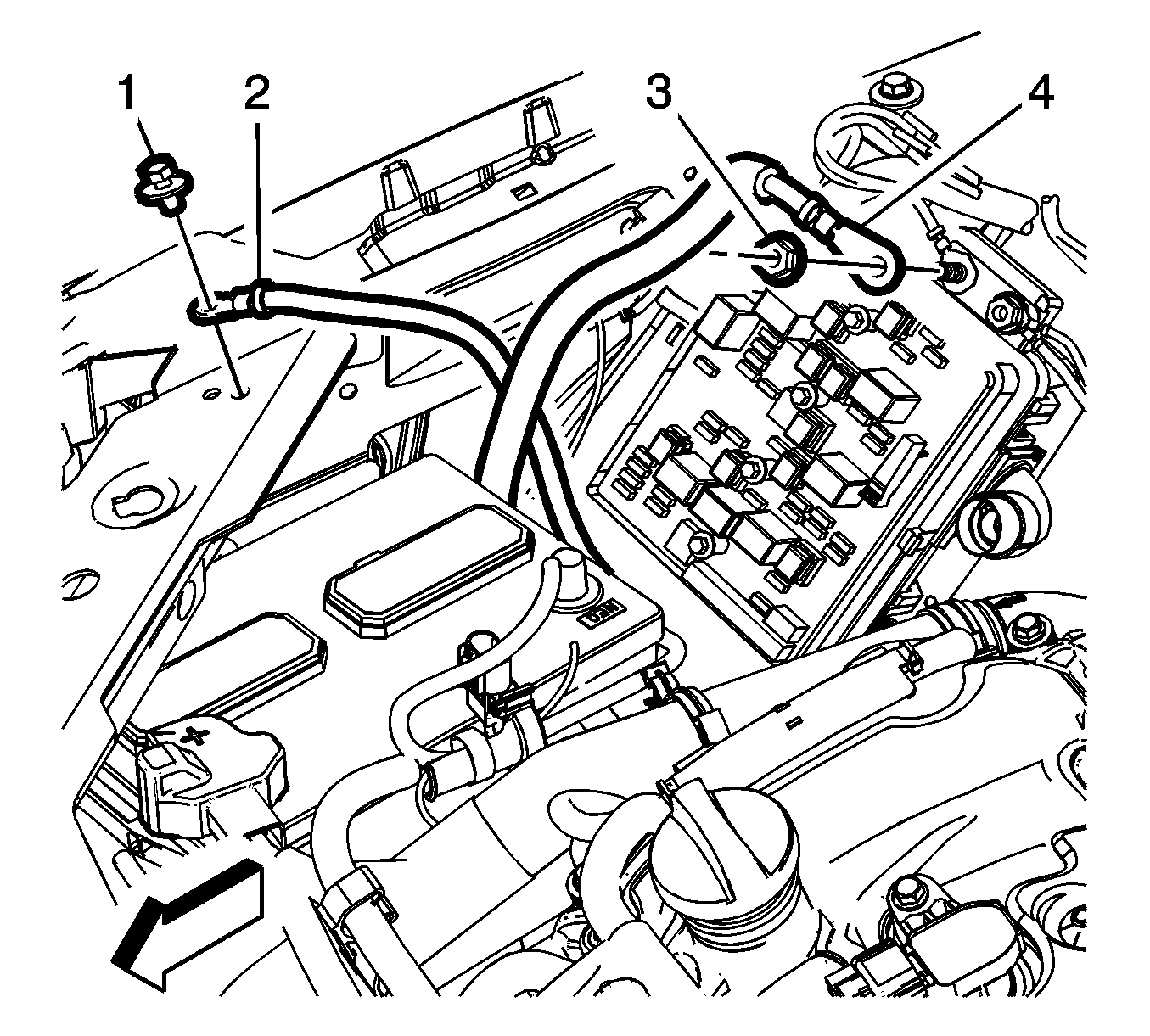

    2. Fig 2: Battery Negative Cable, Battery Positive Cable And Fasteners
    GM2632468Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the battery negative cable ground terminal (2) to the upper tie bar and tighten the fastener (1) to 10 N.m (89 lb in).
  3. Install the battery positive cable terminal (4) to the underhood fuse block stud (1) and tighten the fastener (3) to 15 N.m (11 lb ft).
  4. Install the underhood fuse block cover.
    5. Fig 3: Battery Positive Clamp
    GM2632490Courtesy of GENERAL MOTORS COMPANY
  5. Connect the battery positive cable clamp (1) to the battery post and reinstall the protective boot.

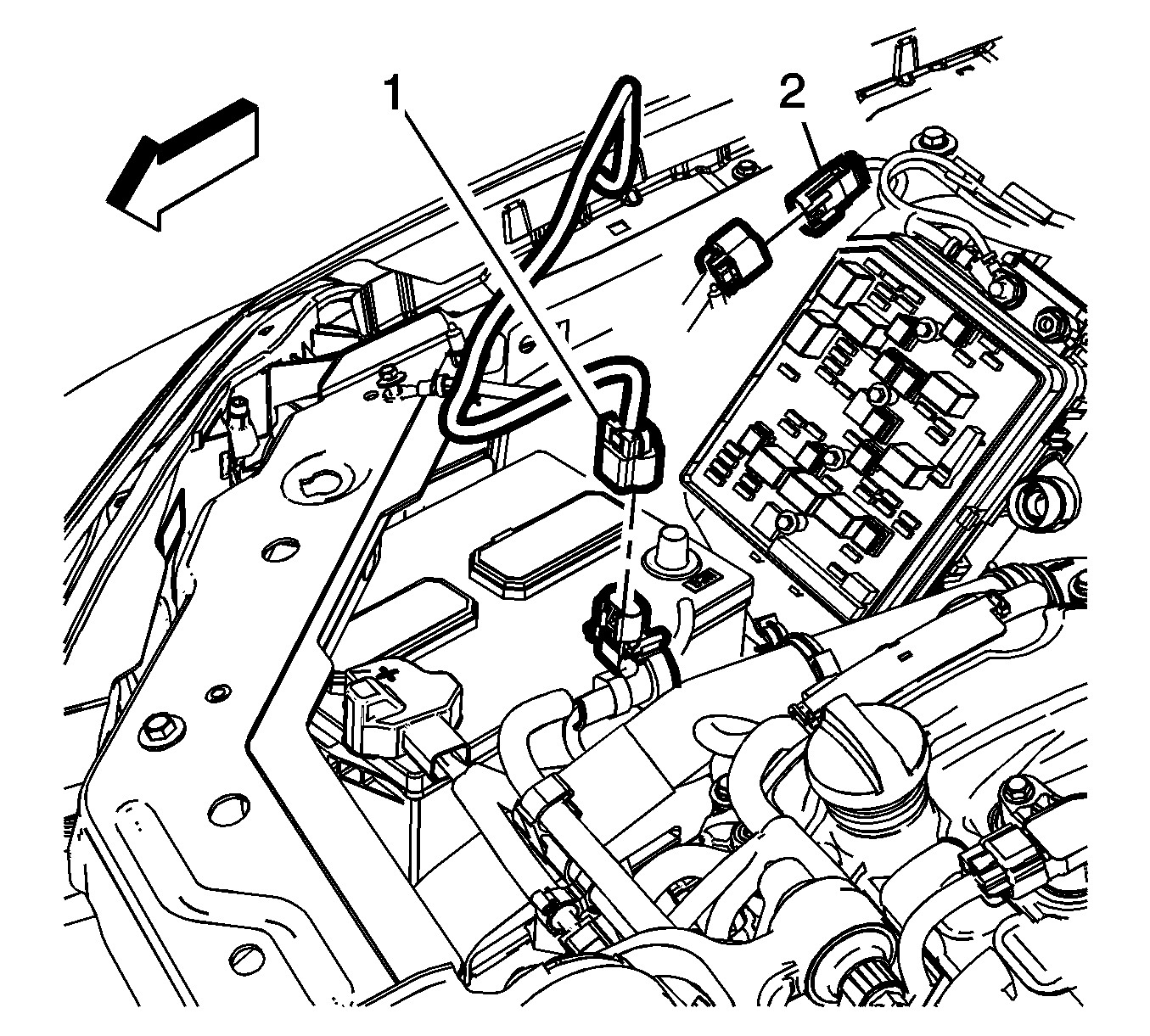

    6. Fig 4: Battery Current Sensor And Instrument Panel Harness Connector
    GM2632469Courtesy of GENERAL MOTORS COMPANY
  6. Connect the battery current sensor connector (1) and the instrument panel harness connector (2).
    7. Fig 5: Battery Positive Cable And Fastener
    GM2632488Courtesy of GENERAL MOTORS COMPANY
  7. Install the battery positive terminal (3) to the back of the generator and tighten the fastener (2) to 20 N.m (15 lb ft).
  8. Install the protective boot onto the generator stud.

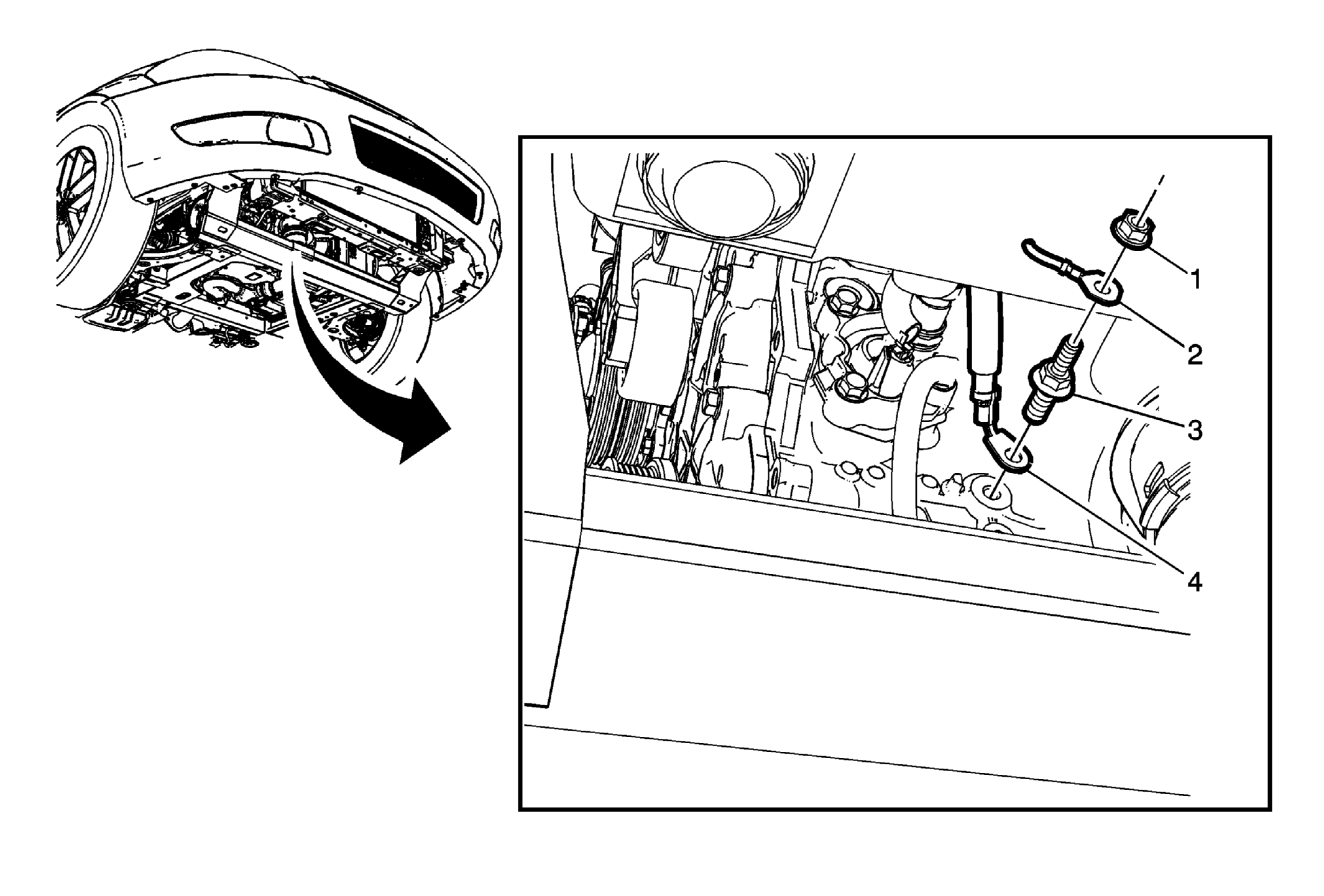

    9. Fig 6: Battery Negative Cable Terminal, Engine Harness Ground Terminal, Fastener And Stud
    GM2648770Courtesy of GENERAL MOTORS COMPANY
  9. Install the battery negative cable terminal (4) and the stud (3) to the engine block. Tighten the stud (3) to 50 N.m (37 lb ft).
  10. Install the engine harness terminal (2) to the stud (3) and tighten the fastener (1) to 20 N.m (15 lb ft).

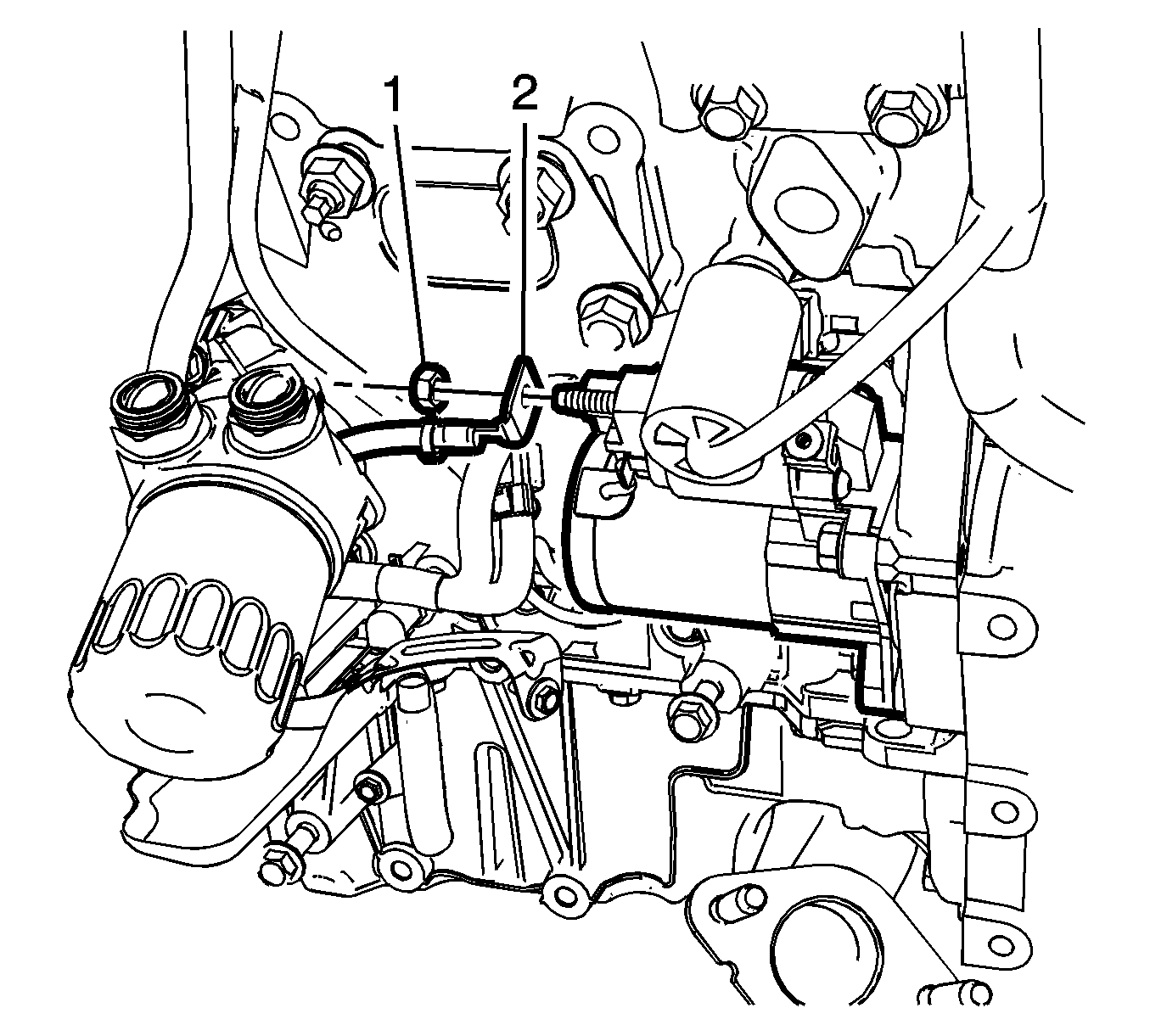

    11. Fig 7: Battery Positive Cable And Fastener
    GM2632477Courtesy of GENERAL MOTORS COMPANY
  11. Install the battery positive terminal (2) to the starter and tighten the fastener (1) to 10 N.m (89 lb in).

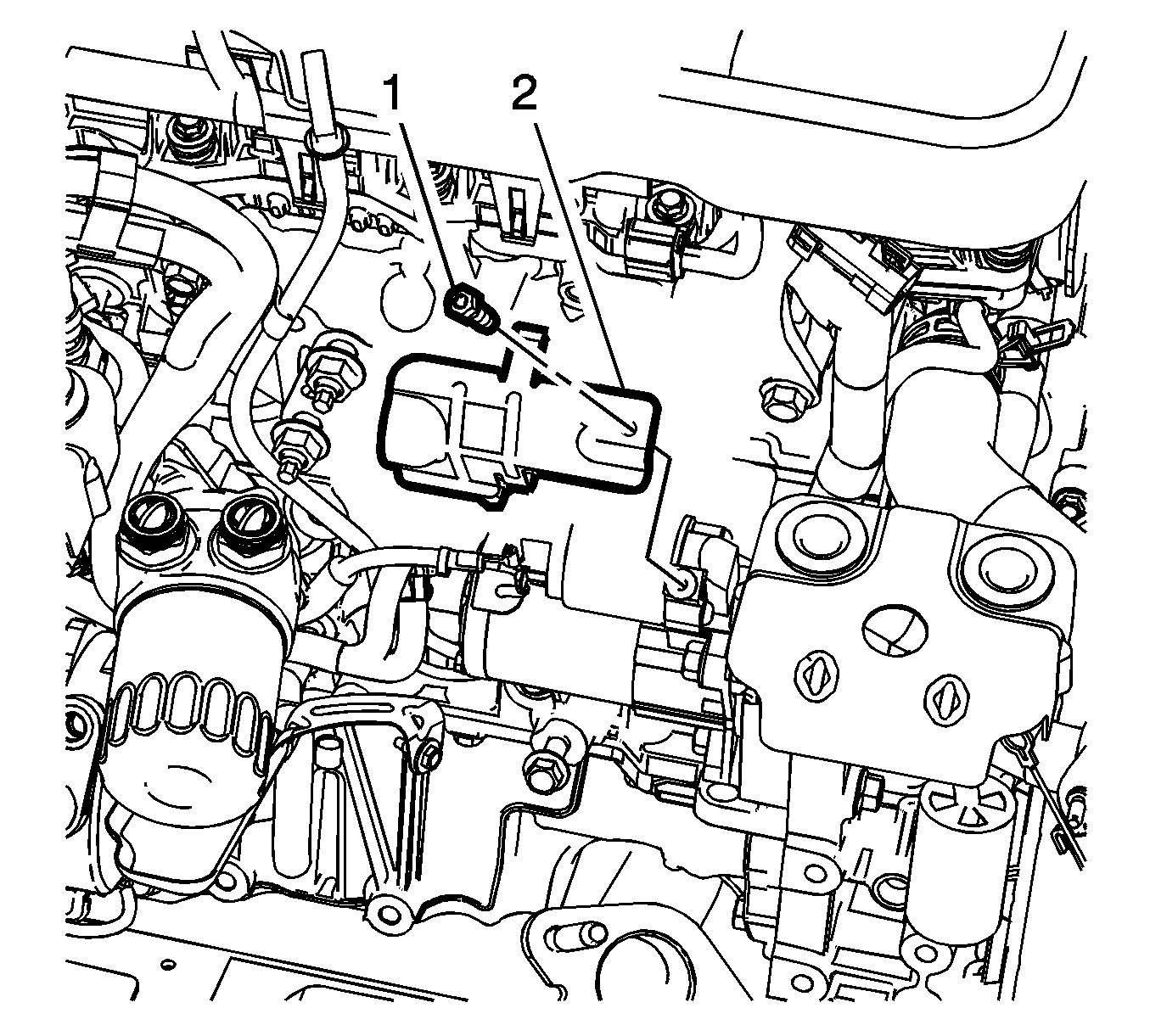

    12. Fig 8: Starter Heat Shield And Fastener
    GM2632479Courtesy of GENERAL MOTORS COMPANY
  12. Install the starter heat shield (2) and tighten the fastener (1) to 5 N.m (44 lb in).
  13. Connect the engine coolant temperature (ECT) sensor.
  14. Install the air conditioning compressor. Refer to Air Conditioning Compressor Replacement .
  15. Install the radiator air lower baffle and deflector. Refer to Radiator Air Lower Baffle and Deflector Replacement .
  16. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
