Rear Side Door Window Switch Replacement

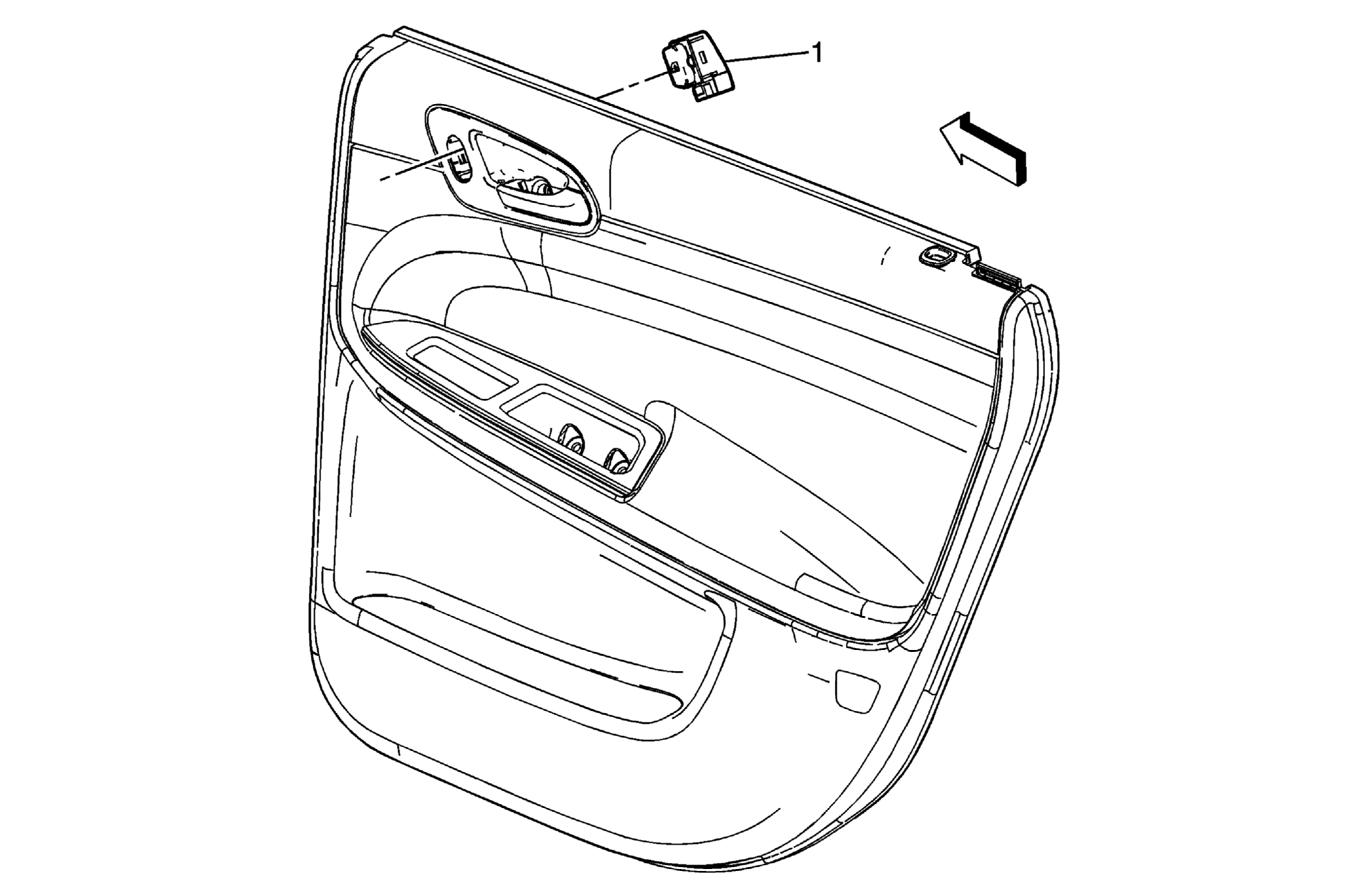

Fig 1: View Of Rear Side Door Window Switch

Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Window Switch Replacement

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications . Preliminary Procedure  Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement .
1	Rear Side Door Window Switch Assembly TIP:  Disconnect the electrical connector.
