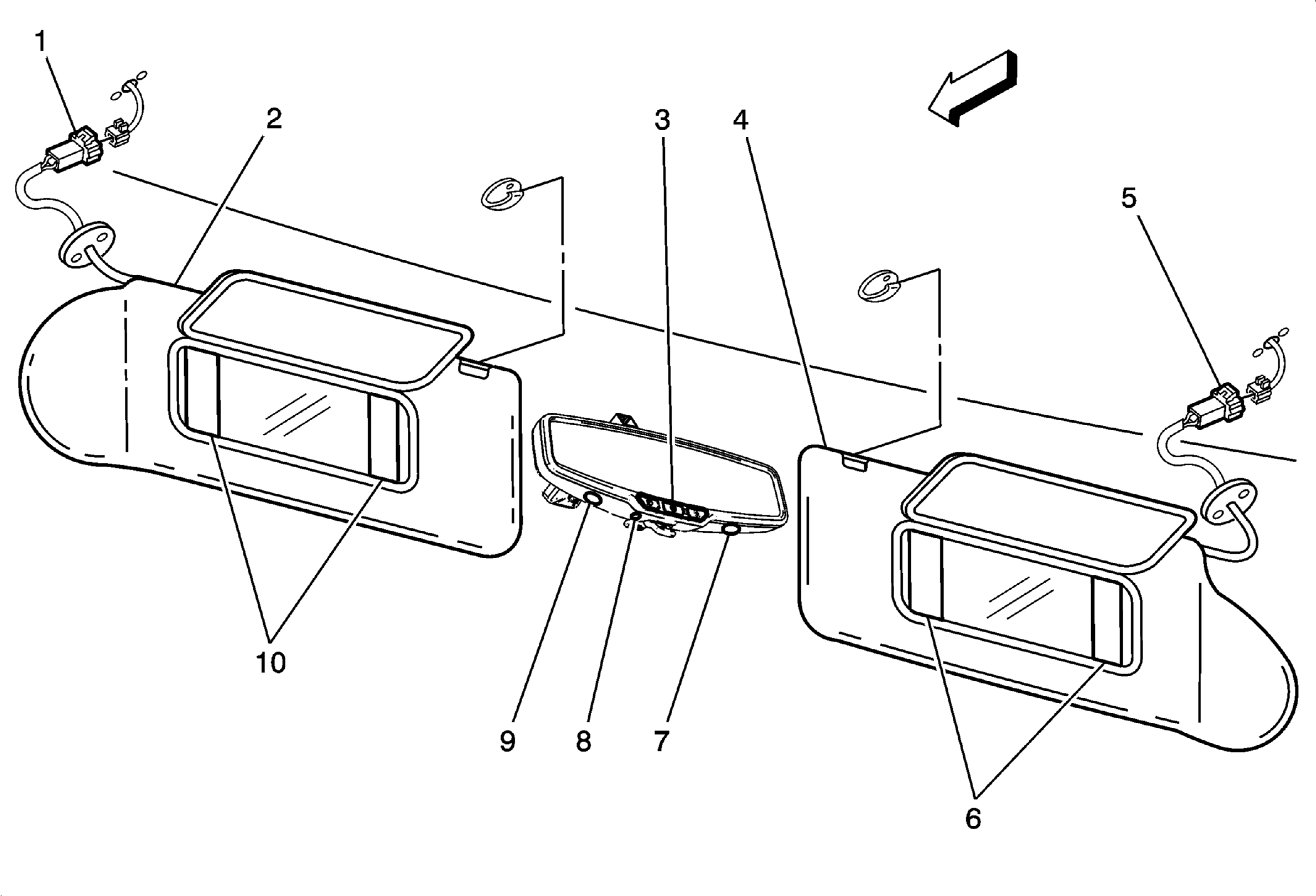

Above the Windshield Components
Above the Windshield Components
| Component Name | Callout |
|---|---|
| Sunshade Connector- Left (DH6) | 1 |
| Sunshade- Left (DH6) | 2 |
| OnStar Button Assembly | 3 |
| Sunshade- Right (DH6) | 4 |
| Sunshade Connector- Right (DH6) | 5 |
| Sunshade Lamps- Right | 6 |
| Reading Lamp- Right | 7 |
| Inside Rearview Mirror (ISRVM) | 8 |
| Reading Lamp- Left | 9 |
| Sunshade Lamps- Left | 10 |
