Data Link, Starting and Charging, Engine Controls, AT Shift Lock Controls, Cruise Control, ABS, Brake Warning, Headlights/DRL and Fog Lights References

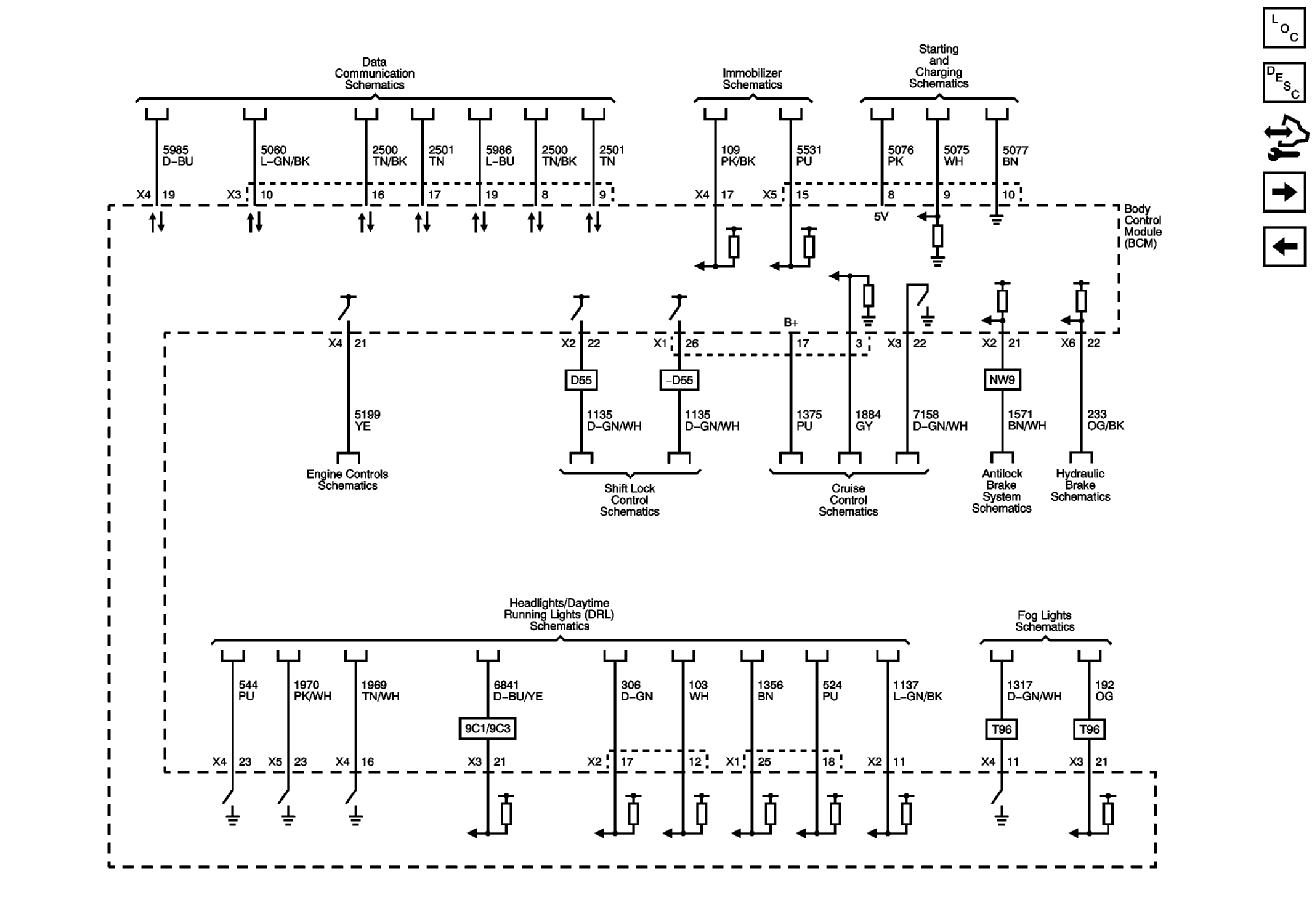

Fig 1: Data Link, Starting and Charging, Engine Controls, AT Shift Lock Controls, Cruise Control, ABS, Brake Warning, Headlights/DRL and Fog Lights References Wiring Schematic

Courtesy of GENERAL MOTORS COMPANY
