Roof Rail Components

Roof Rail Components

Component Name Callout
Inflatable Restraint Roof Rail Module- Right 1
Inflatable Restraint Roof Rail Module- Left 2
Driver Seat 3

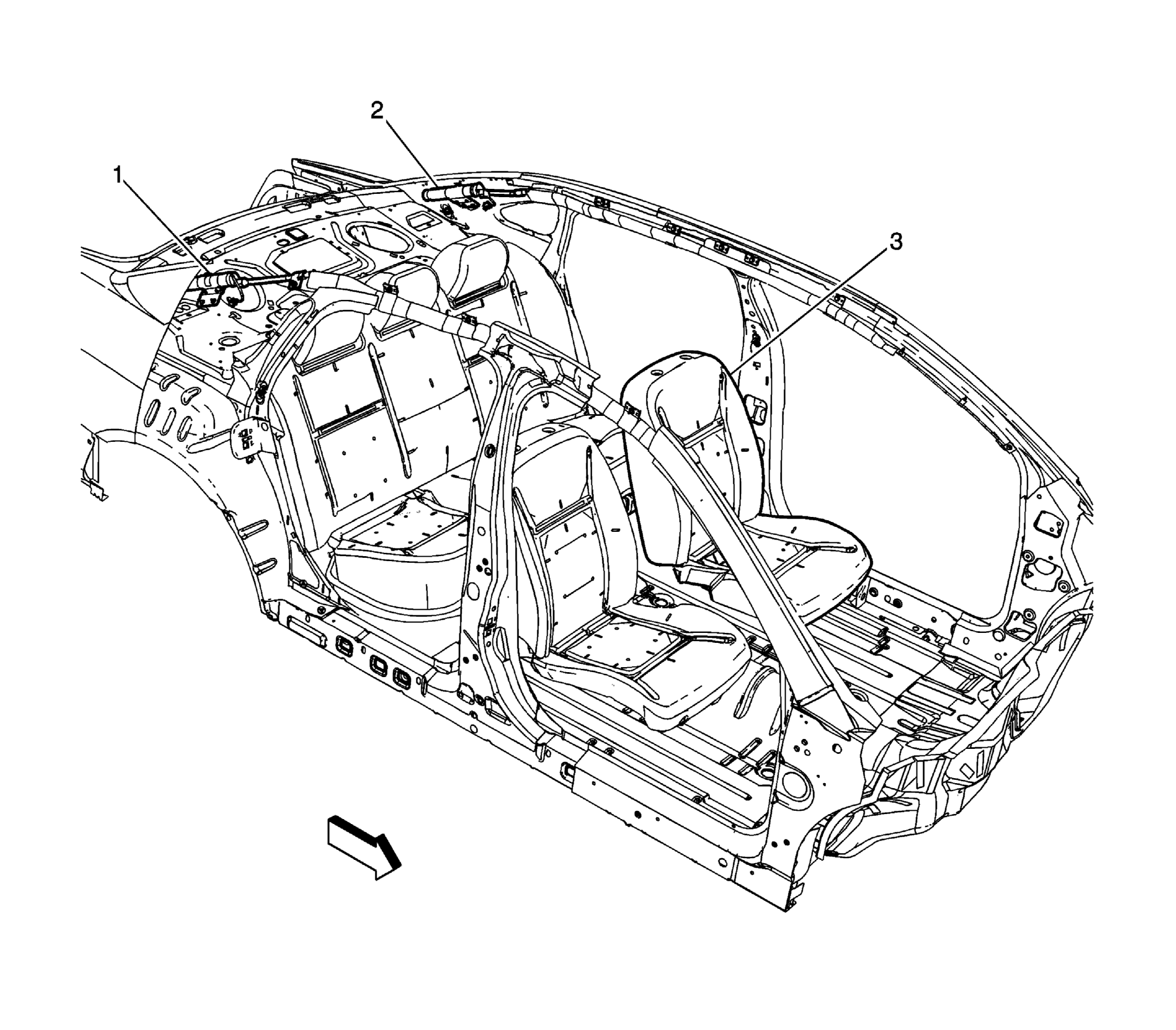

Fig 1: Roof Rail Air Bags (AY1)
GM1700284Courtesy of GENERAL MOTORS COMPANY
