Installation Procedure

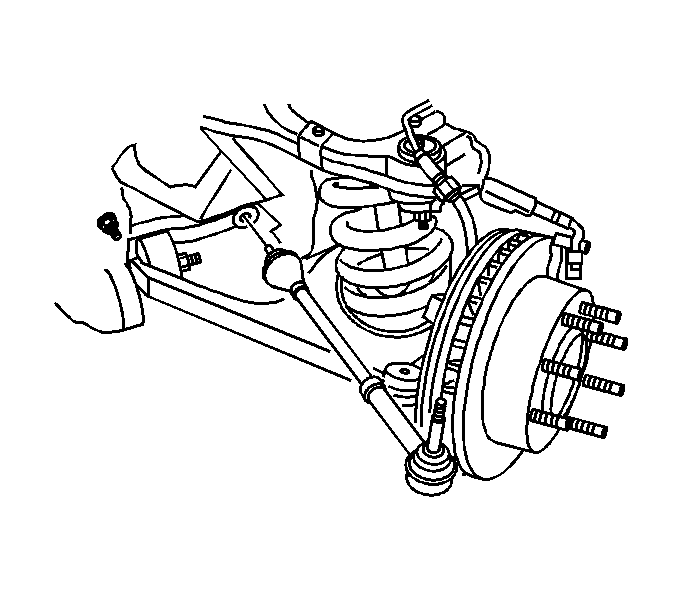

    Fig 1: Inner Tie Rod
    GM836031Courtesy of GENERAL MOTORS COMPANY
  1. Lubricate the inner tie rod threads with a suitable chassis lubricant before installing the outer tie rod.
  2. Install the inner tie rod to the vehicle.
    3. Fig 2: Inner Tie Rod To Relay Rod Retaining Nut
    GM832413Courtesy of GENERAL MOTORS COMPANY
  3. Install the inner tie rod to relay rod retaining nut.
    4. Fig 3: Identifying Inner Tie Rod To Relay Rod Retaining Nut
    GM858410Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  4. Tighten the inner tie rod to relay rod retaining nut using J 34028  inner tie rod wrench and tighten to 112 N.m (83 lb ft).
  5. Install the outer tie rod. Refer to Steering Linkage Outer Tie Rod Replacement .
  6. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation (6-Lug Wheel) , Tire and Wheel Removal and Installation (8-Lug Wheel) .
  7. Lower the vehicle.
  8. Adjust the front toe. Refer to Wheel Alignment Measurement .
