Powertrain Expansion Bus Wiring Schematics

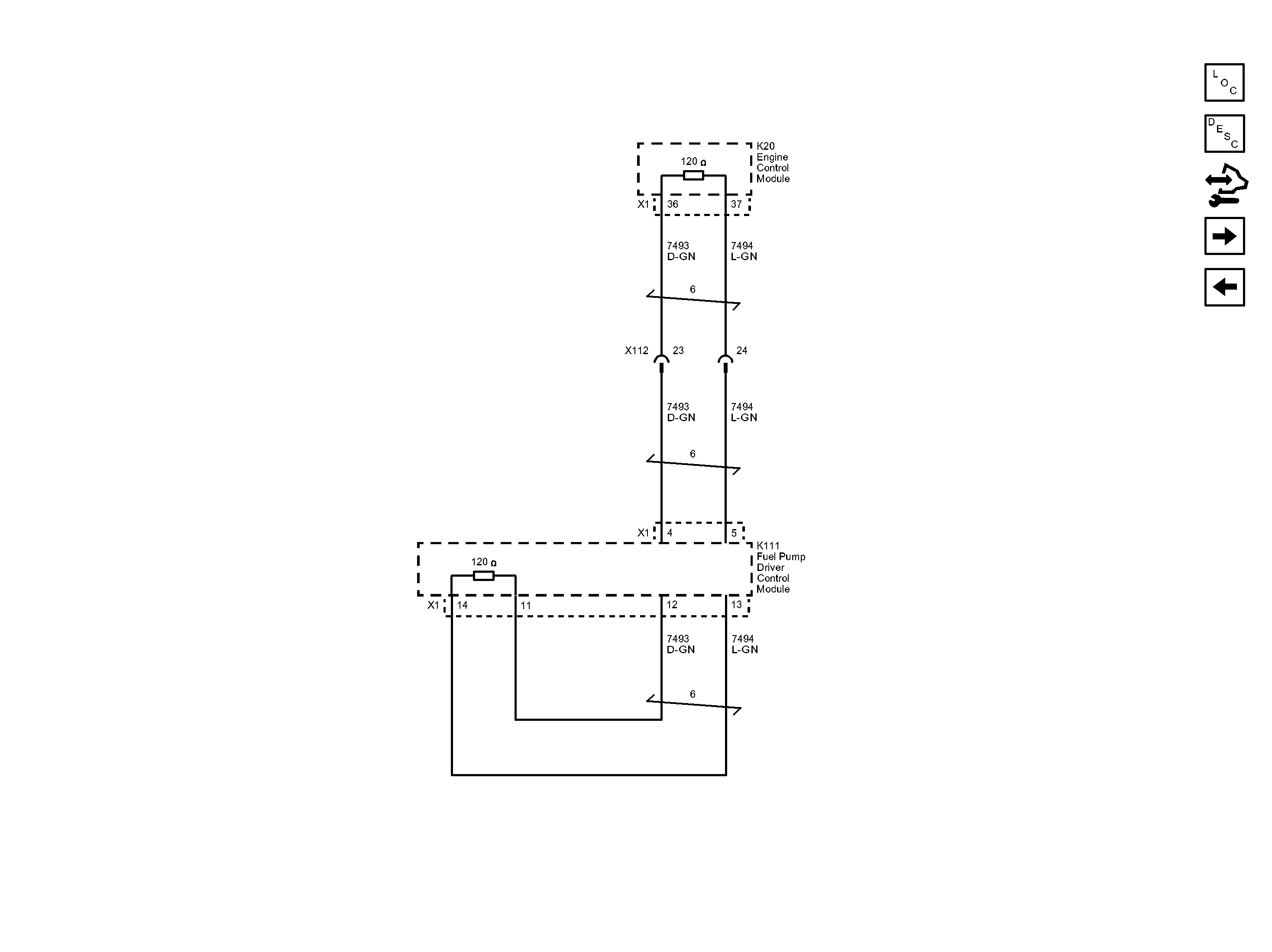

Fig 1: Powertrain Expansion Bus Wiring Schematics

GM2845563

Courtesy of GENERAL MOTORS COMPANY
