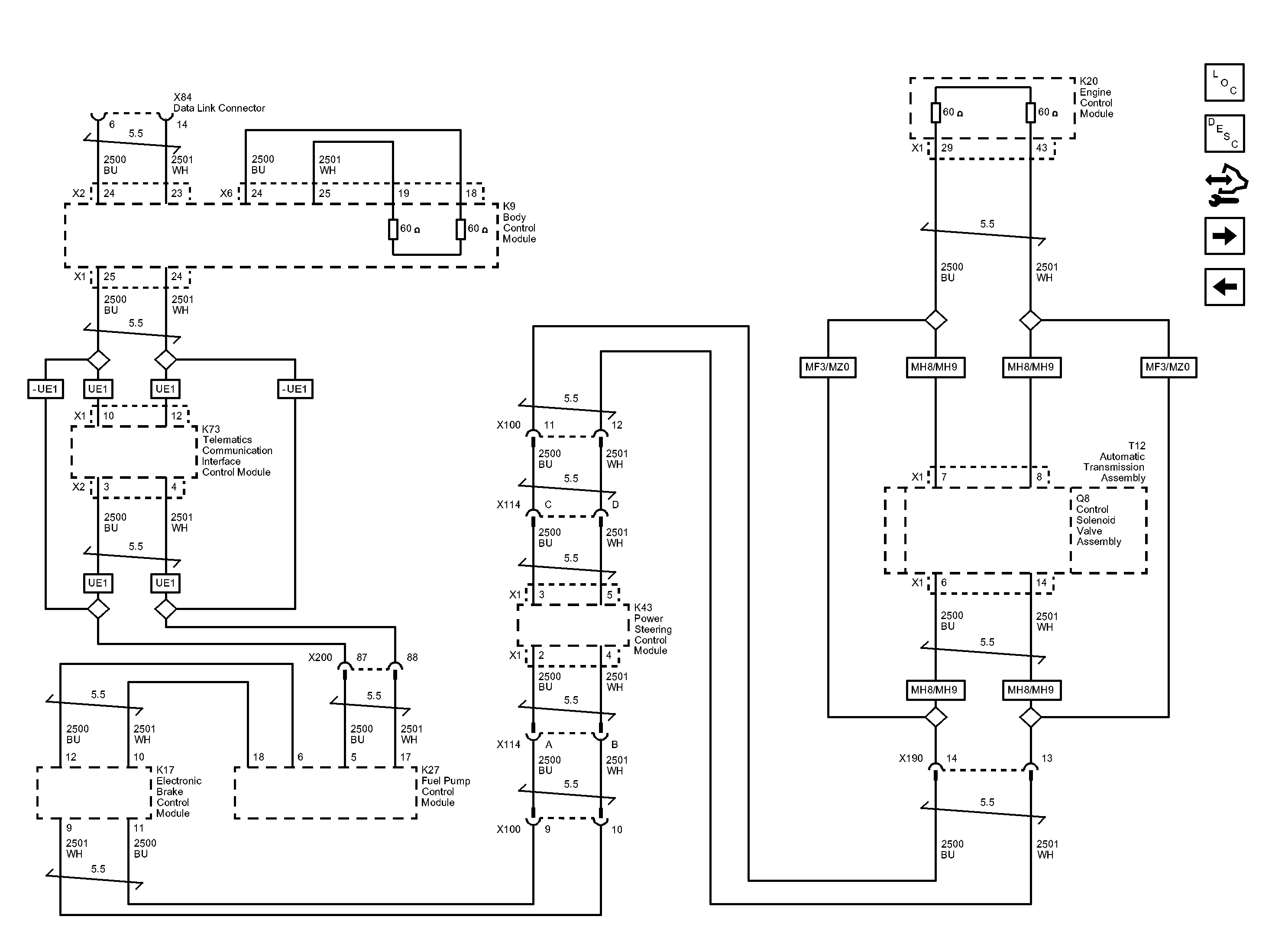

Home >> Chevrolet >> 2013 >> Cruze LT, Standard Trans >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> High Speed GMLAN Wiring Schematics
