Power, Ground, Data Communications, and Subsystem References (1 of 4) Wiring Schematics

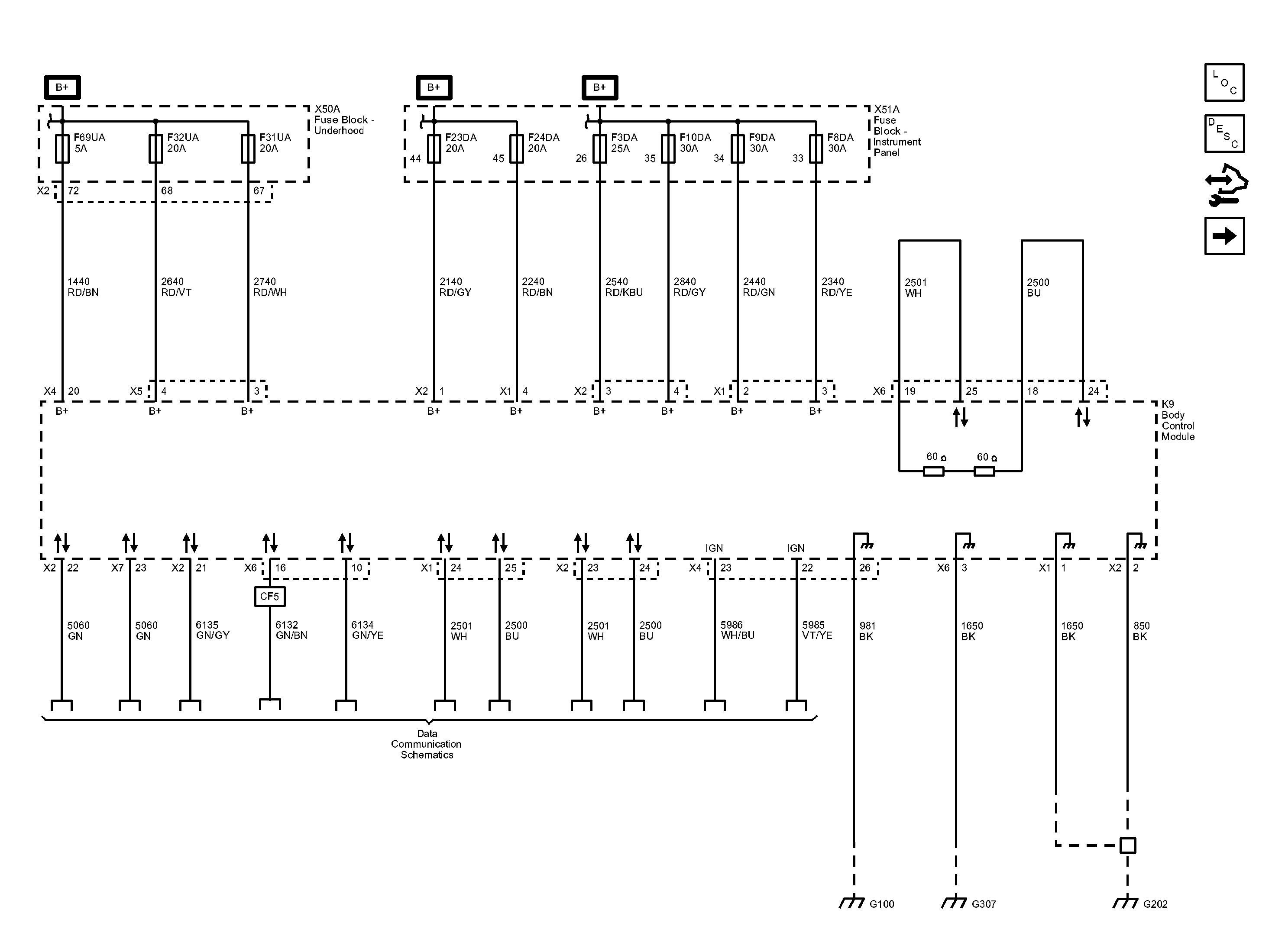

Fig 1: Power, Ground, Data Communications, and Subsystem References (1 of 4) Wiring Schematics
GM2852284Courtesy of GENERAL MOTORS COMPANY
