Rear View Camera (UVC) Wiring Schematics

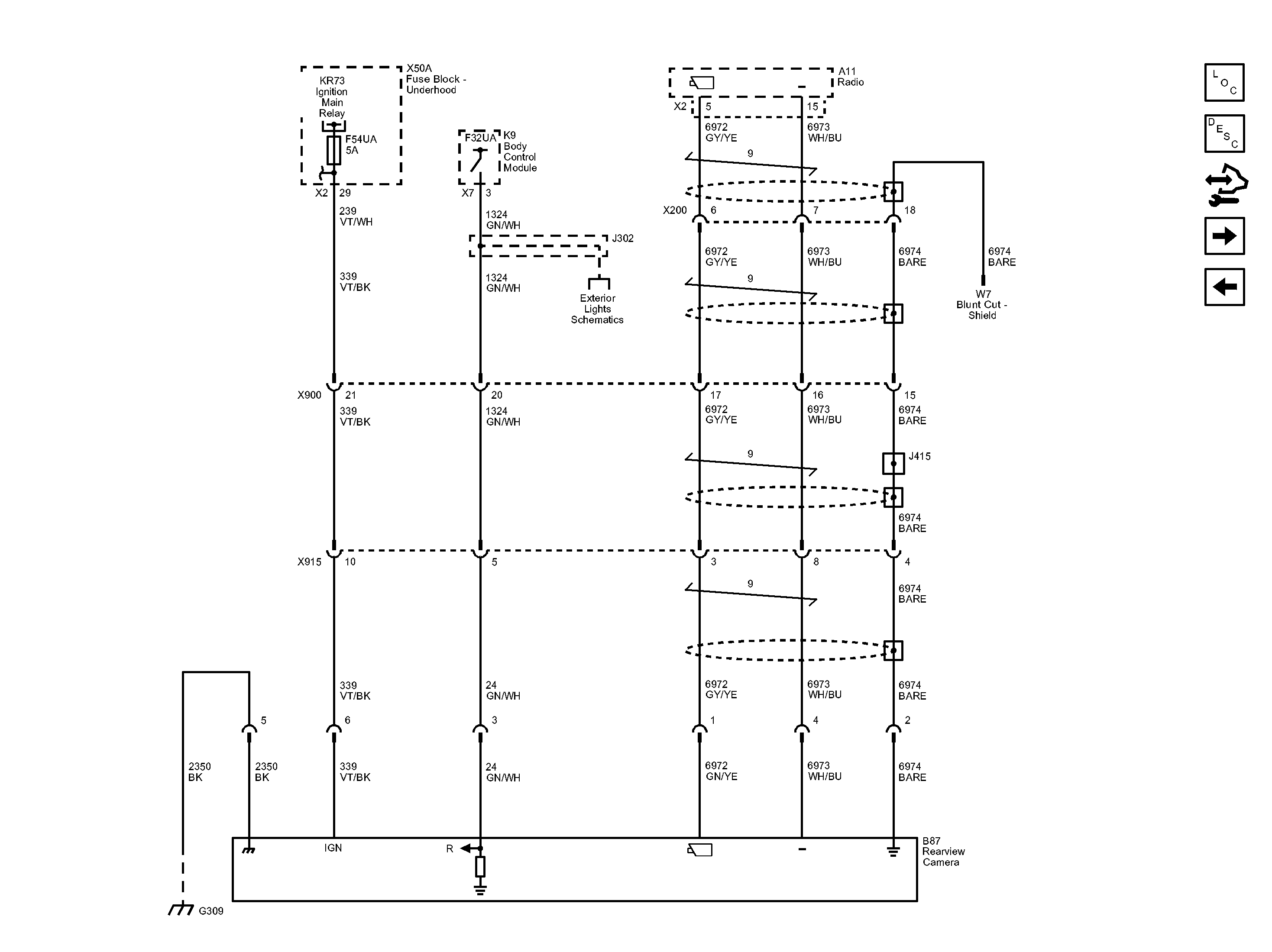

Fig 1: Rear View Camera (UVC) Wiring Schematics

GM2908397

Courtesy of GENERAL MOTORS COMPANY
