Linear Interconnect Network (LIN) Serial Data Wiring Schematics

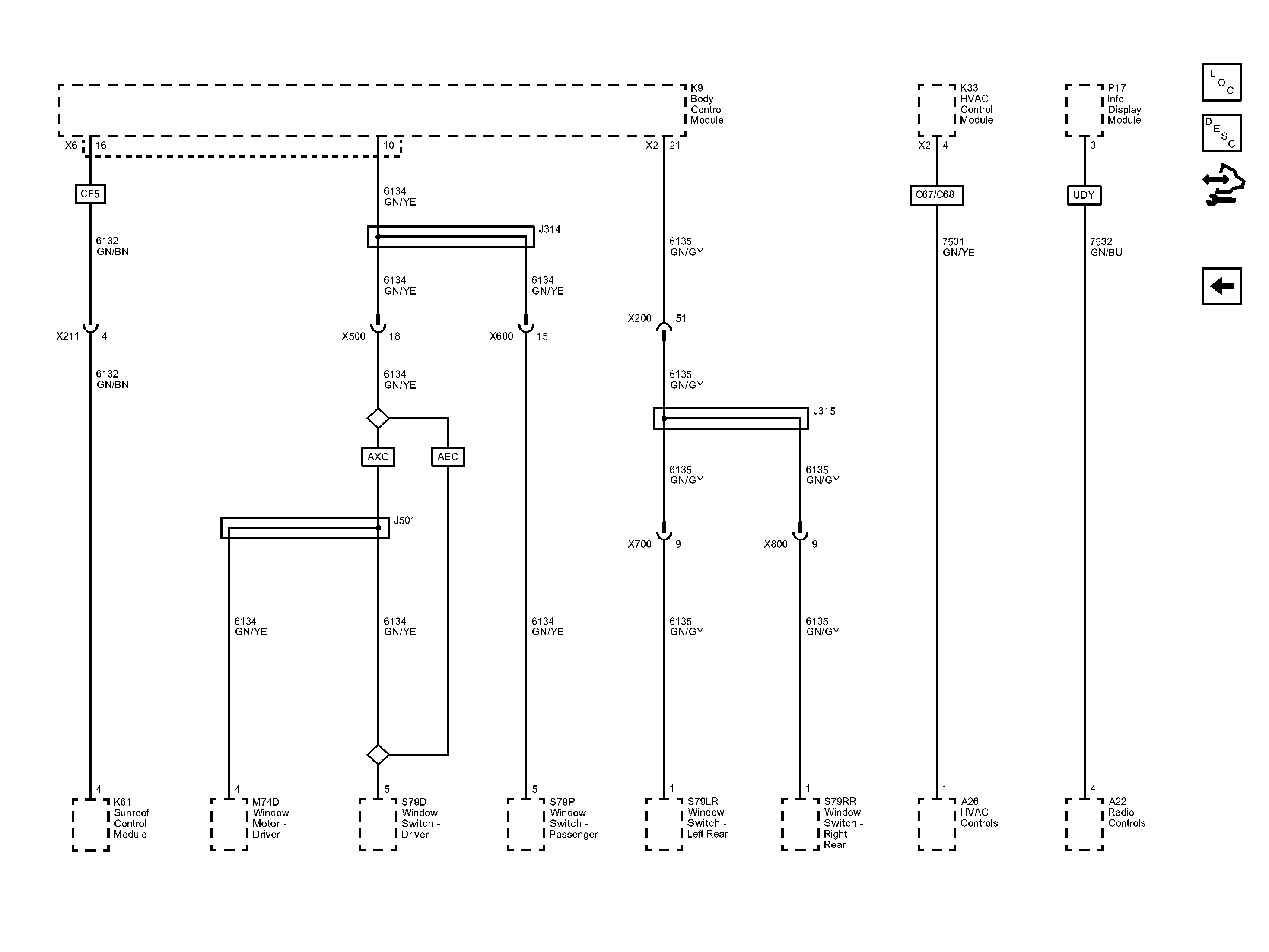

Fig 1: Linear Interconnect Network (LIN) Serial Data Wiring Schematics

GM2852280

Courtesy of GENERAL MOTORS COMPANY
