Installation Procedure

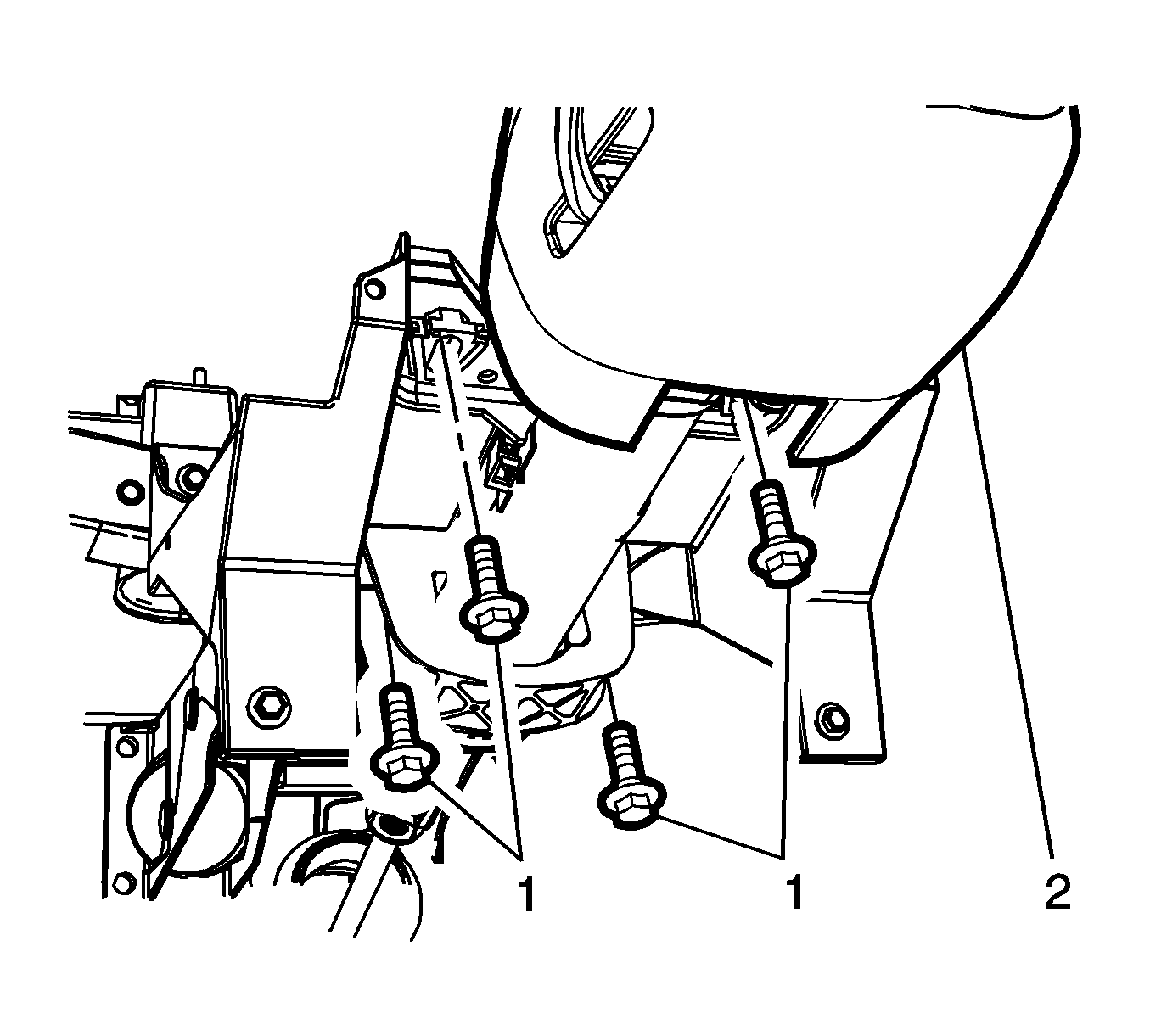

    Fig 1: Upper Steering Column Bracket Bolts
    GM2713436Courtesy of GENERAL MOTORS COMPANY
  1. Position the steering column assembly (2) into the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the upper steering column bracket bolts (1) to the upper reinforcement assembly.

    Tighten

    Tighten the bolts to 25 (18 lb ft).

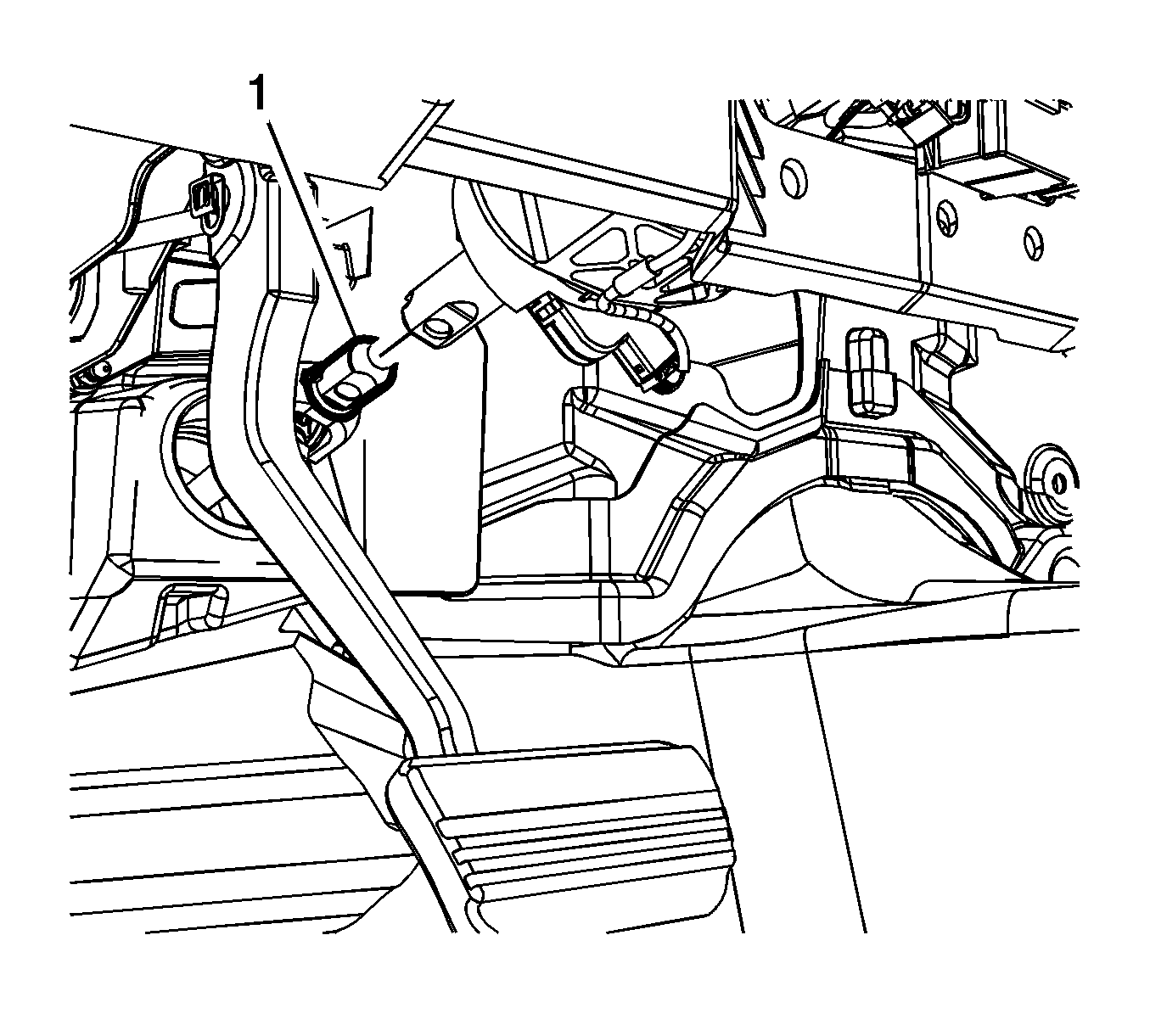

    3. Fig 2: Intermediate Steering Shaft Assembly
    GM2721611Courtesy of GENERAL MOTORS COMPANY
  3. Reconnect the intermediate steering shaft assembly (1) to the steering column.
  4. Remove J 42640  steering column lock pin from the steering column.
  5. Turn the steering wheel as needed to gain access to the intermediate steering shaft nut and bolt.

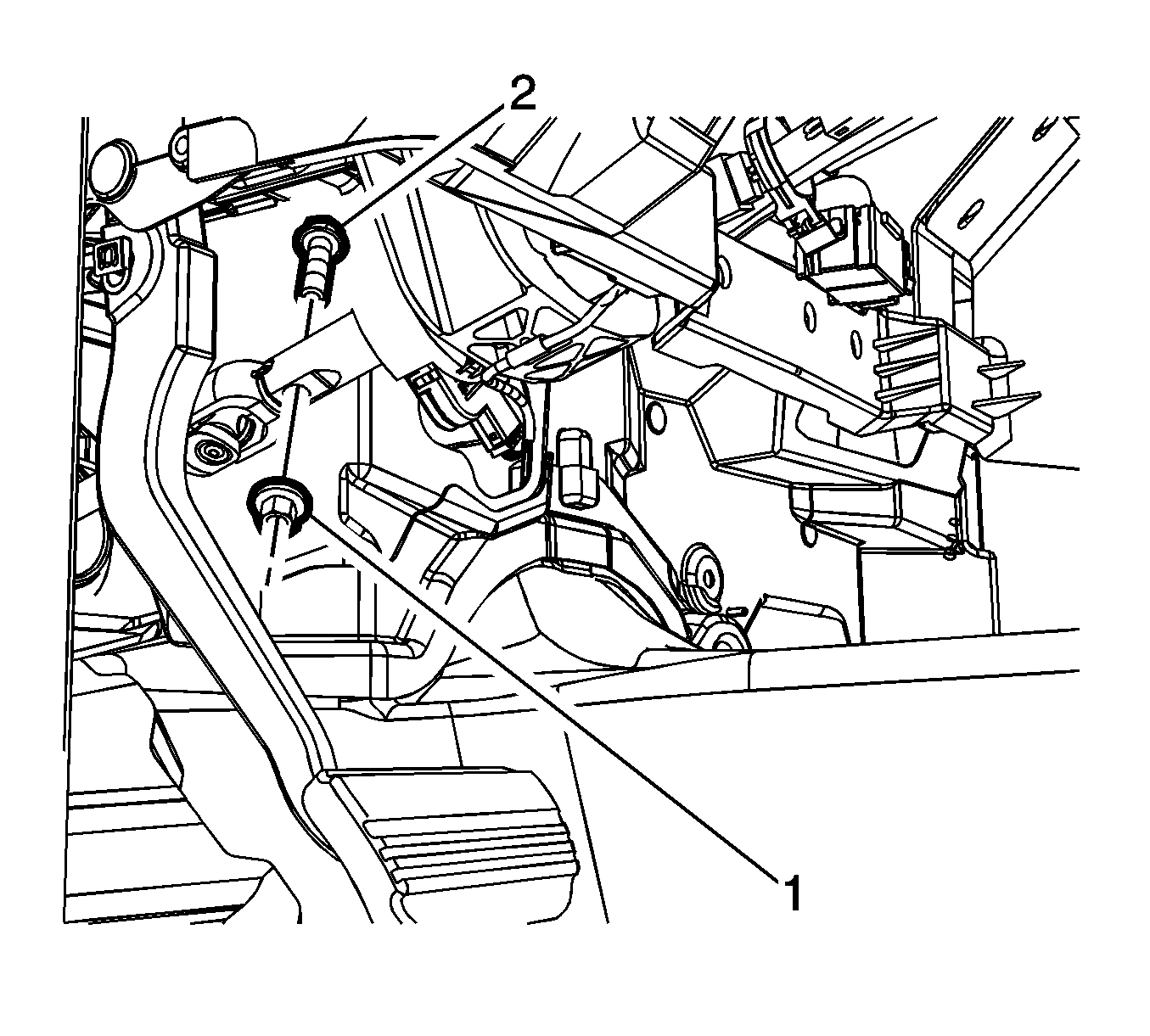

    6. Fig 3: Upper Steering Gear Coupling Nut And Bolt
    GM2721612Courtesy of GENERAL MOTORS COMPANY
  6. Install the intermediate steering shaft nut (1) and (2) bolt.

    Tighten

    Tighten the bolt to 48 (35 lb ft).

  7. Connect all the electrical connectors to the instrument panel (I/P) wiring harness.
  8. Install the driver knee bolster panel. Refer to Driver Knee Bolster Panel Replacement .
  9. Install the left instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement .
  10. Enable the SIR system. Refer to SIR Disabling and Enabling .
