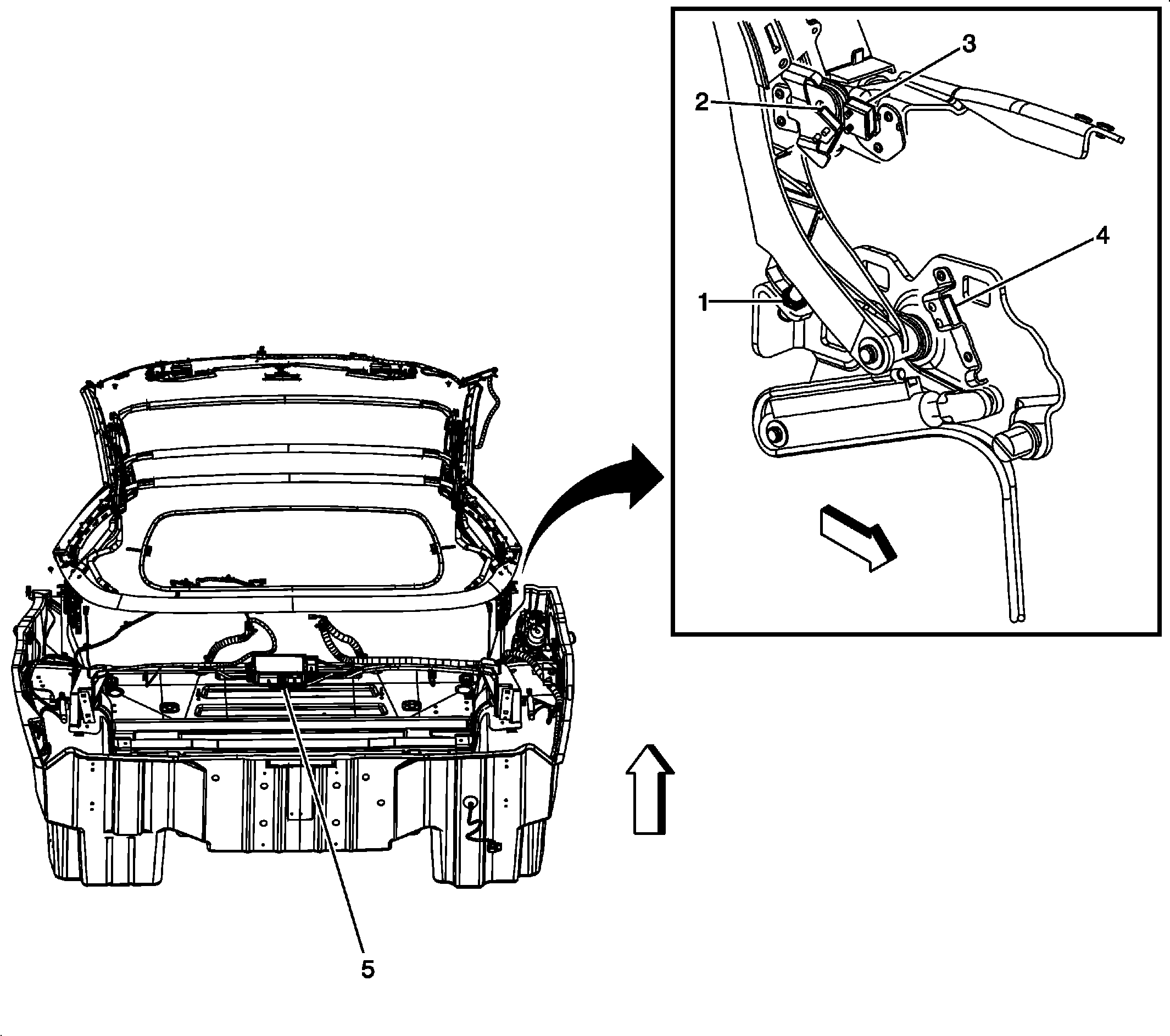

Folding Top Control Module and Switch Position Components (CM7)
Folding Top Control Module and Switch Position Components (CM7)
| Component Name |
Callout |
| Folding Top Closed Position Switch |
1 |
| Folding Top 5 Bow Lowered Switch |
2 |
| Folding Top 5 Bow Raised Switch |
3 |
| Folding Top Open Position Switch |
4 |
| Folding Top Control Module |
5 |
Courtesy of GENERAL MOTORS COMPANY
