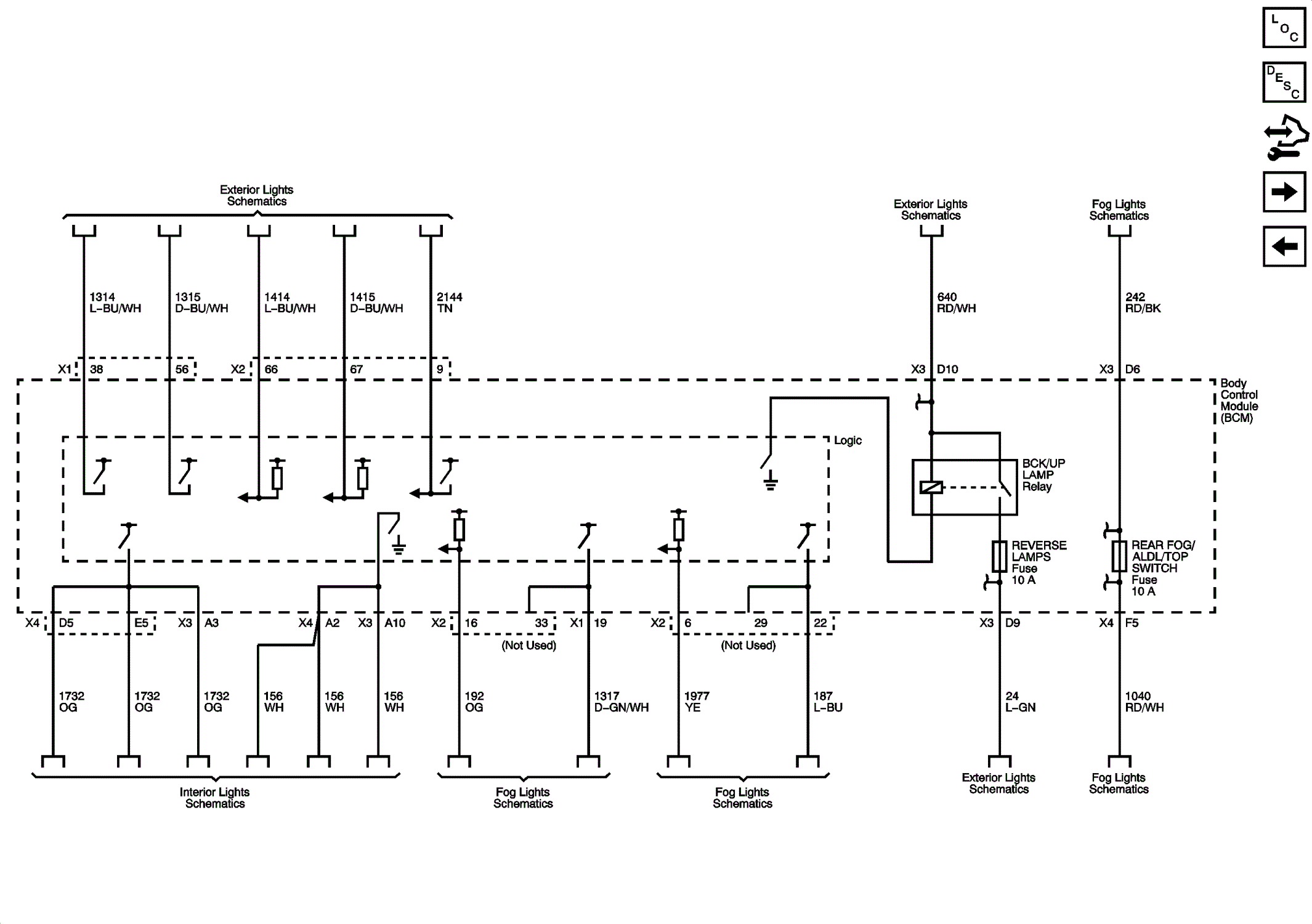

Home >> Chevrolet >> 2013 >> Corvette Base, 2D Convertible, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Body Control System Wiring Schematics >> Lighting References (2 of 2)
