Mass Airflow Sensor Replacement (LS9)

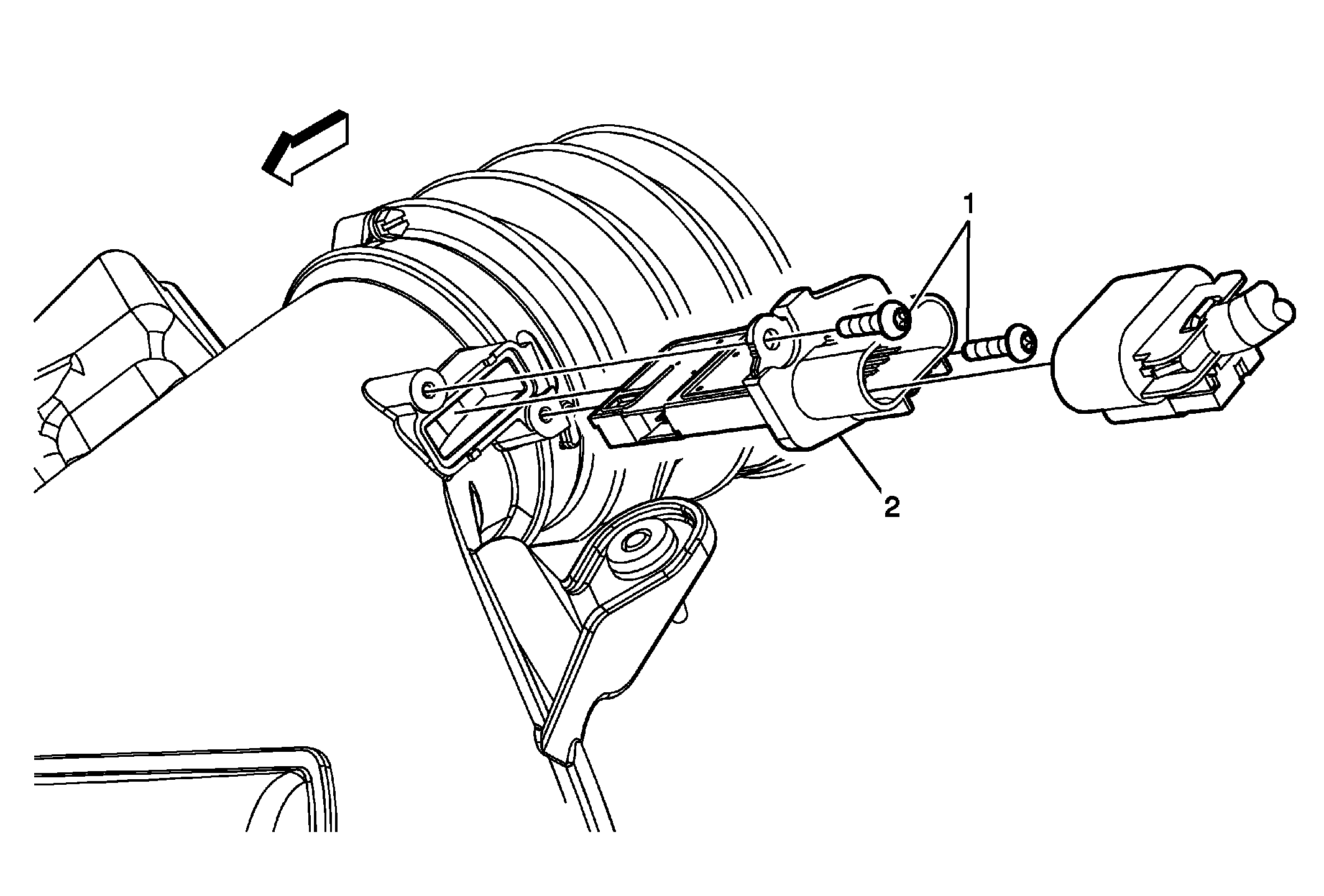

Fig 1: View Of Mass Airflow Sensor
GM2157350Courtesy of GENERAL MOTORS COMPANY
Mass Airflow Sensor Replacement (LS9)

Callout Component Name
1 Mass Airflow Sensor Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
4 N.m (35 lb in)
2 Mass Airflow Sensor
Procedure
Disconnect the mass airflow harness connector.
