Rear Compartment Lift Window Latch Bracket Replacement

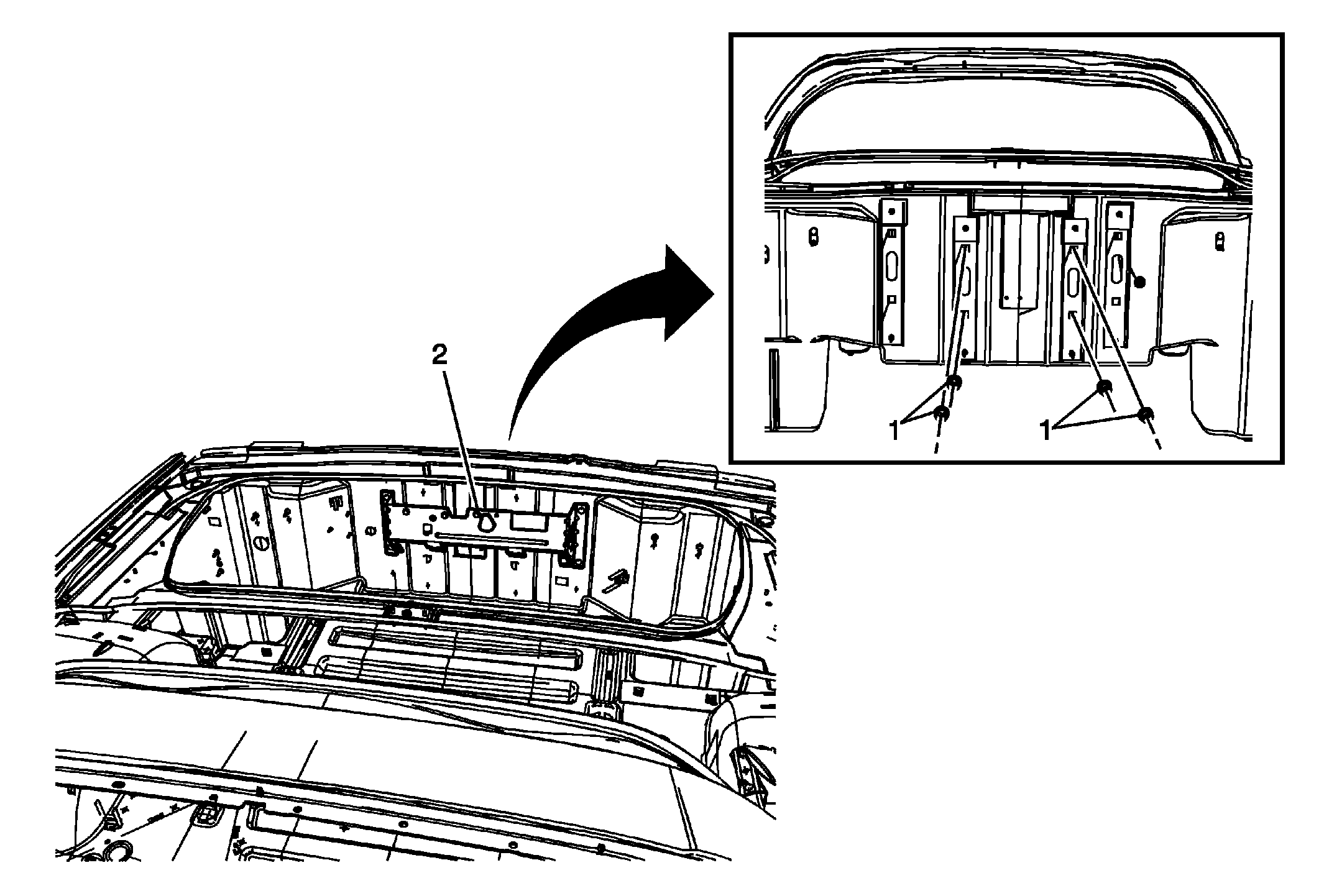

Fig 1: View Of Rear Compartment Lift Window Latch Bracket & Nut

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear compartment lift window latch. Refer to Rear Compartment Lift Window Latch Replacement . Remove the tail lamps. Refer to Tail Lamp Replacement .
1	Rear Compartment Lift Window Latch Bracket Nut CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Rear Compartment Lift Window Latch Bracket

Callout

Component Name

Preliminary Procedures

Remove the rear compartment lift window latch. Refer to Rear Compartment Lift Window Latch Replacement .
Remove the tail lamps. Refer to Tail Lamp Replacement .

Rear Compartment Lift Window Latch Bracket Nut

CAUTION:

Tighten
10 N.m (89 lb in)

Rear Compartment Lift Window Latch Bracket
