Removal Procedure

    Fig 1: View Of Door Trim Panel
    GM63818Courtesy of GENERAL MOTORS COMPANY
  1. Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement - Left Side , or Front Side Door Trim Panel Replacement - Right Side .
    2. Fig 2: Water Deflector At Door Inner Panel
    GM63790Courtesy of GENERAL MOTORS COMPANY
  2. Remove the water deflector.

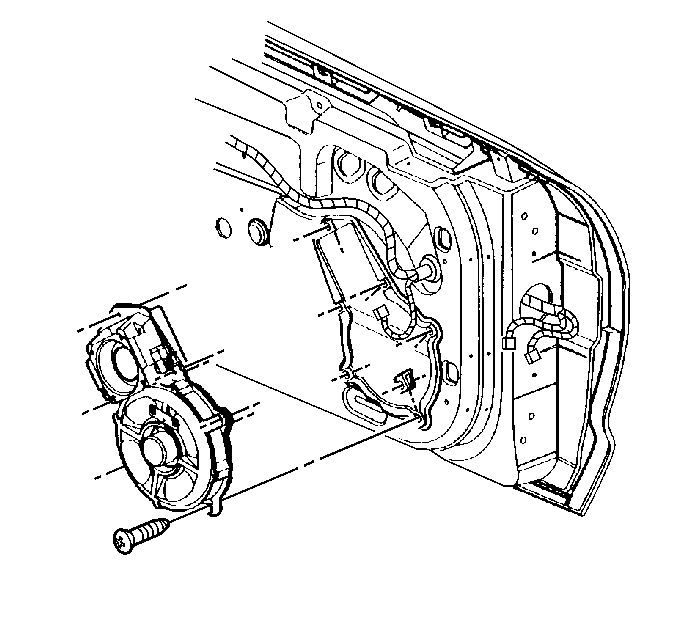

    3. Fig 3: Radio Speaker Assembly At Door
    GM63833Courtesy of GENERAL MOTORS COMPANY
  3. Remove the door radio speaker assembly.
    • Remove the screws mounting the speaker assembly.
    • Disconnect the electrical/audio connector.
    4. Fig 4: View of Window Clamp Access Plugs
    GM63834Courtesy of GENERAL MOTORS COMPANY
  4. Remove the window clamp sight access plugs.
    5. Fig 5: Electrical Connector At Driver Side Switch
    GM63823Courtesy of GENERAL MOTORS COMPANY
  5. Reconnect the window switch.
  6. Use a suitable tool, set the door latch (fork bolt) to the close (lock) position.
  7. Reposition the window full up to access the window clamp nuts.
  8. Disconnect the window switch.
  9. Using the door lock touch pad, move the door latch (fork bolt) to the open (unlock) position.
    10. Fig 6: View Of Door Window
    GM63801Courtesy of GENERAL MOTORS COMPANY
  10. Mark the location of the window.
  11. Loosen the window clamp nuts.
  12. Remove the window through the top opening of the door.
