Corvette Base, 2D Convertible, Automatic Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Cellular System, Entertainment System, And Navigation System
>>
Schematic Wiring Diagrams
>>
Radio/Navigation System Wiring Schematics
>>
Power, Ground, Serial Data and Amplifier Inputs (U66)
Power, Ground, Serial Data and Amplifier Inputs (U66)

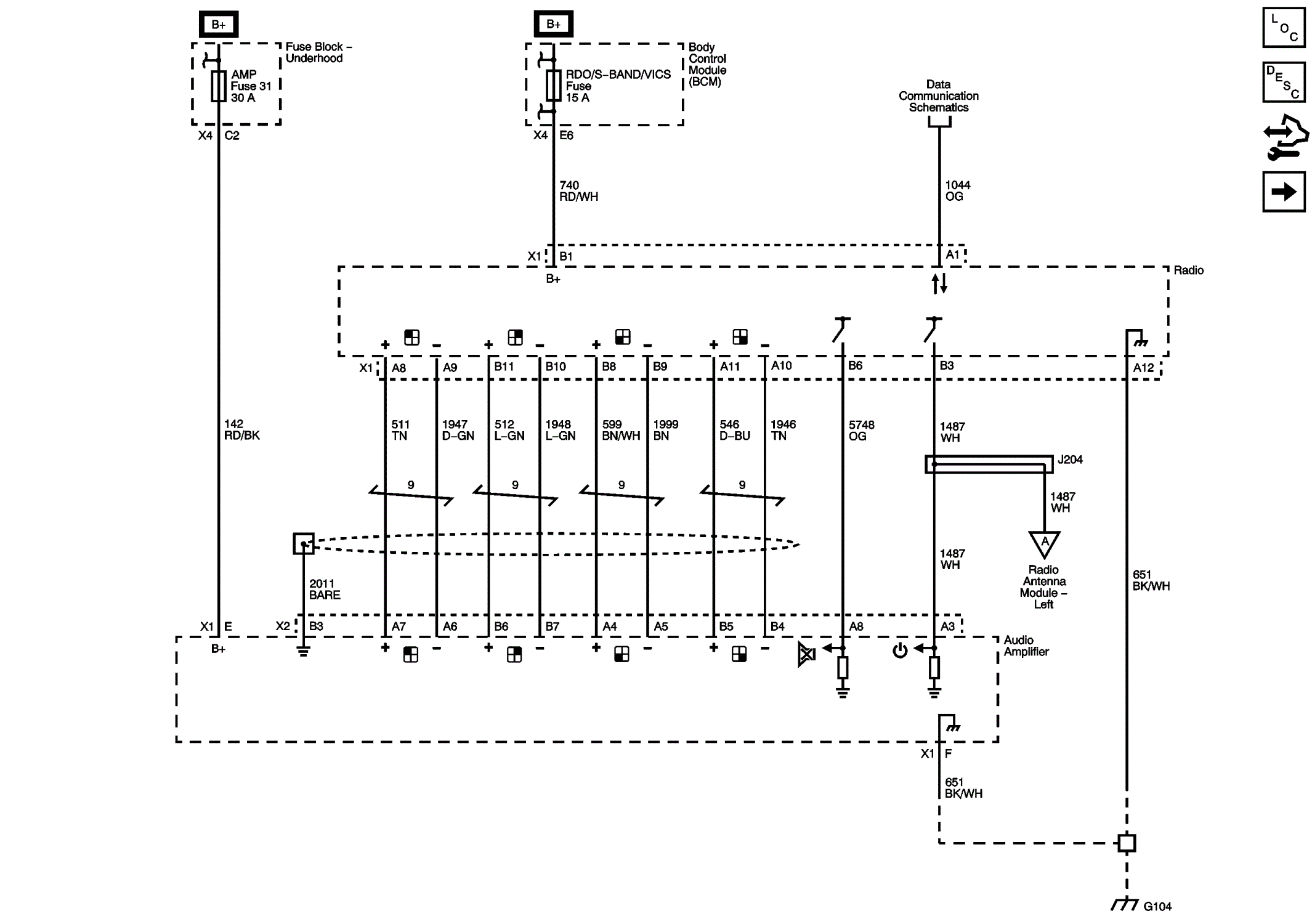

Fig 1: Power, Ground, Serial Data and Amplifier Inputs Wiring Schematic (U66)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
