Power, Ground, Serial Data, Antenna, and User Inputs

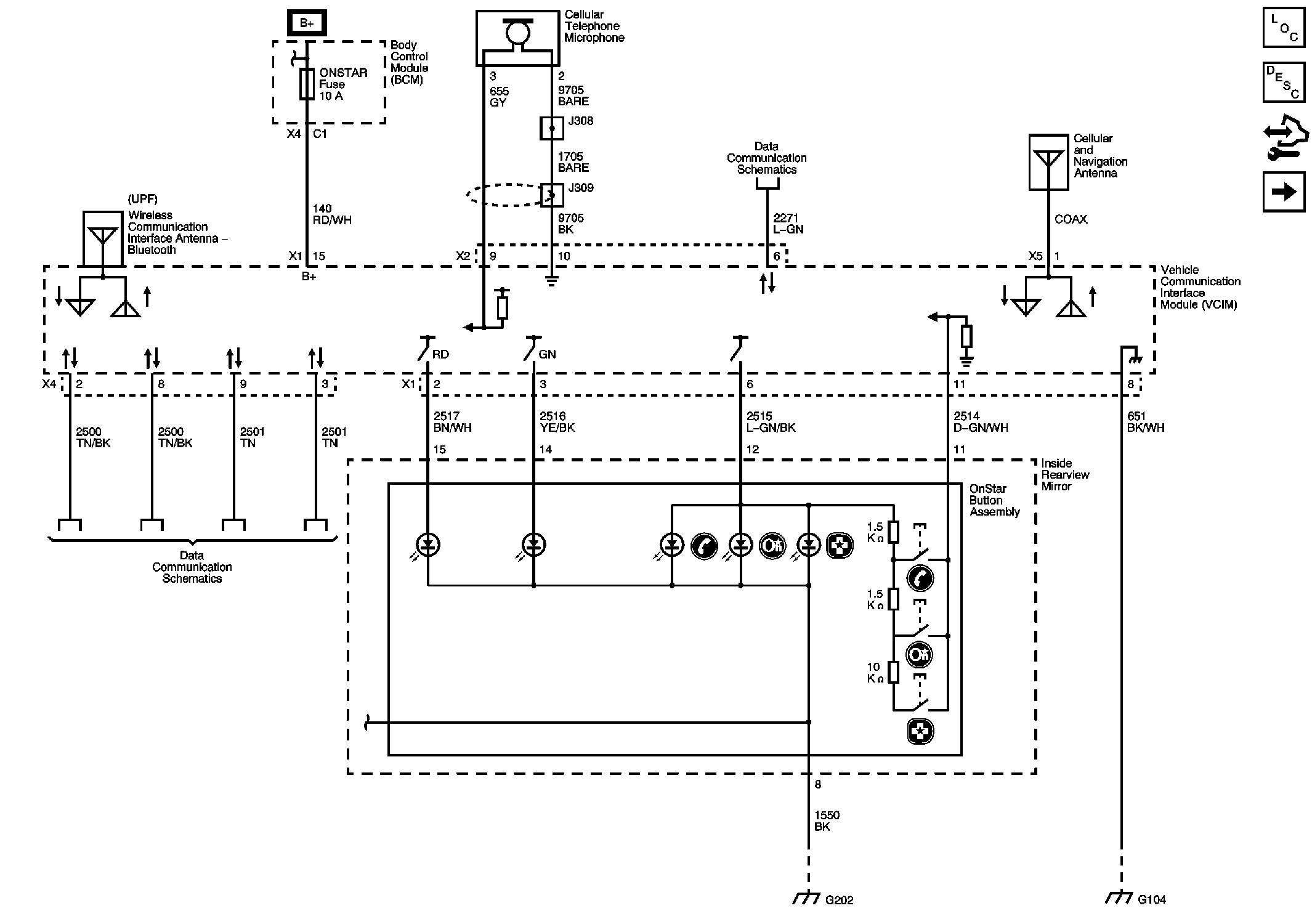

Fig 1: Power, Ground, Serial Data, Antenna, and User Inputs Wiring Schematic

GM2756695

Courtesy of GENERAL MOTORS COMPANY
