Electrical Component Locator - Instrument Panel/Center Console Component Views
>>
Instrument Panel/Center Console Component Views
>>
Floor Console Components
Floor Console Components
Floor Console Components
Component Name
Callout
Heated Seat Switch - Driver (KA1)
1
Heated Seat Switch - Passenger (KA1)
2
Accessory Power Outlet - Console 1
3
Auxiliary Audio Input
4
Accessory Power Outlet - Console 2
5

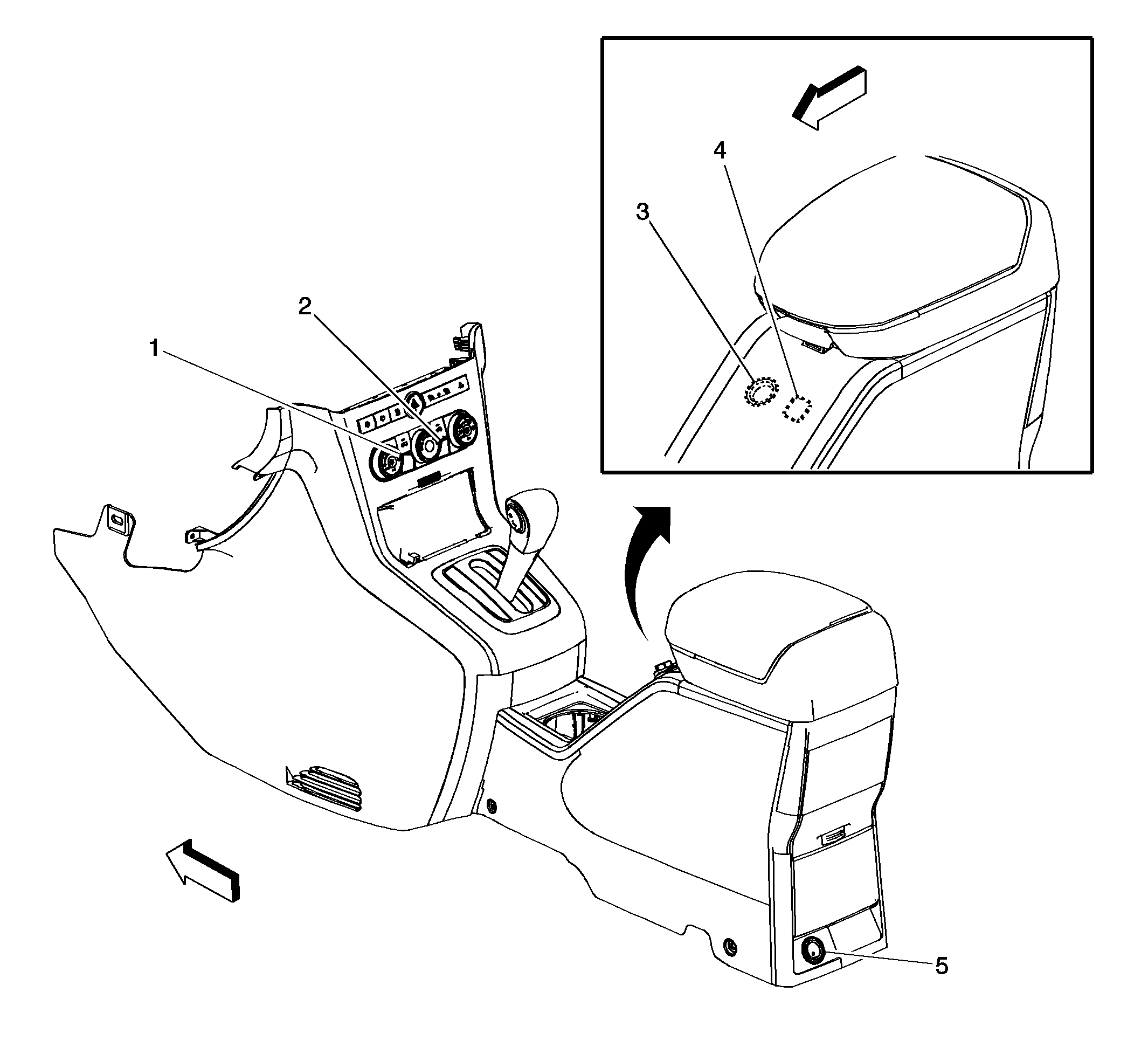

Fig 1: Floor Console Components
Courtesy of GENERAL MOTORS COMPANY
