Behind the Front Fascia Components

Behind the Front Fascia Components

Items
1:  B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left
2:  B55 Hood Ajar Switch (AP3) B55 Hood Ajar Switch (AP3)
3:  B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right
4:  B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor

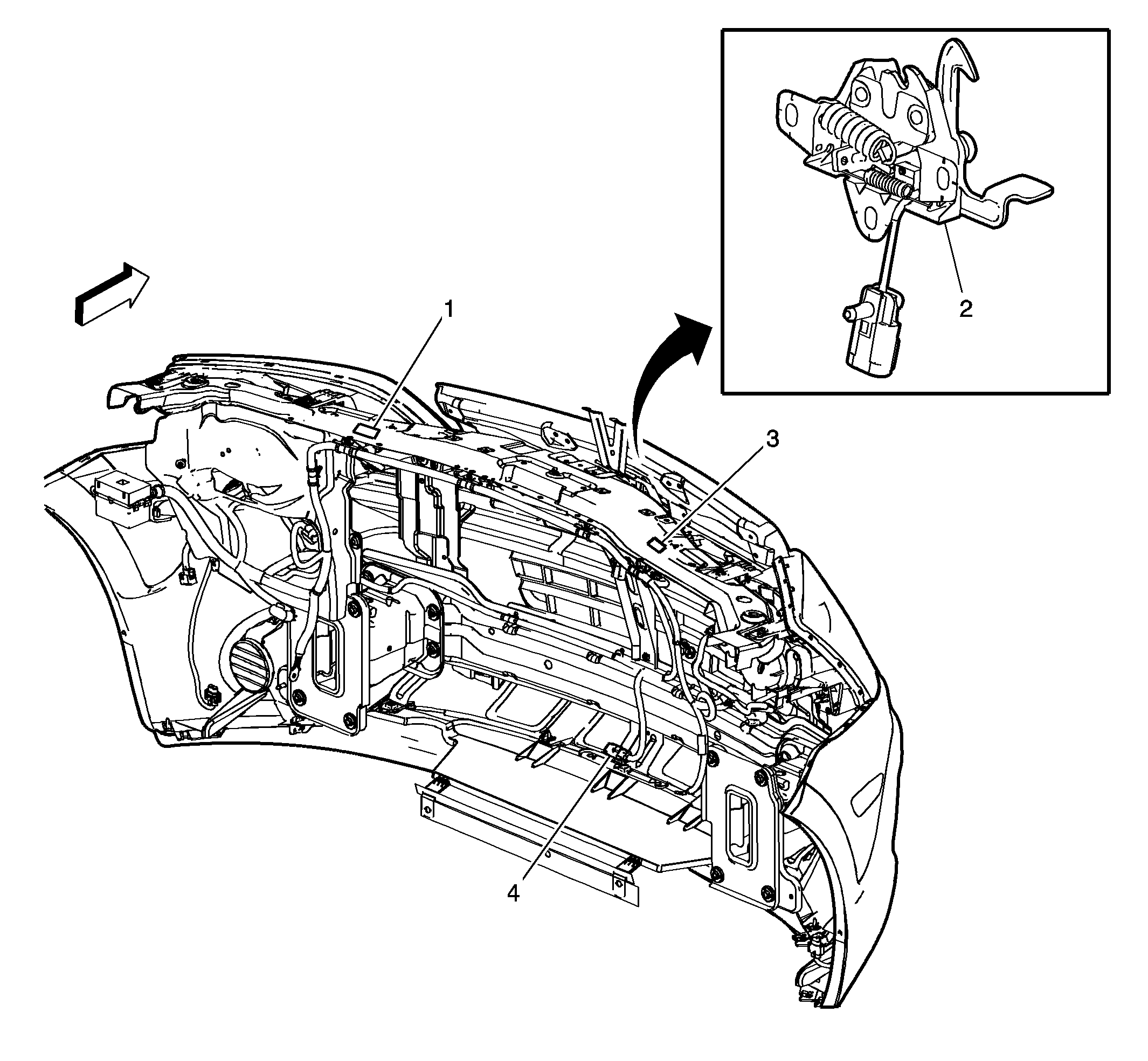

Fig 1: Behind the Front Fascia Components
GM2882770Courtesy of GENERAL MOTORS COMPANY
