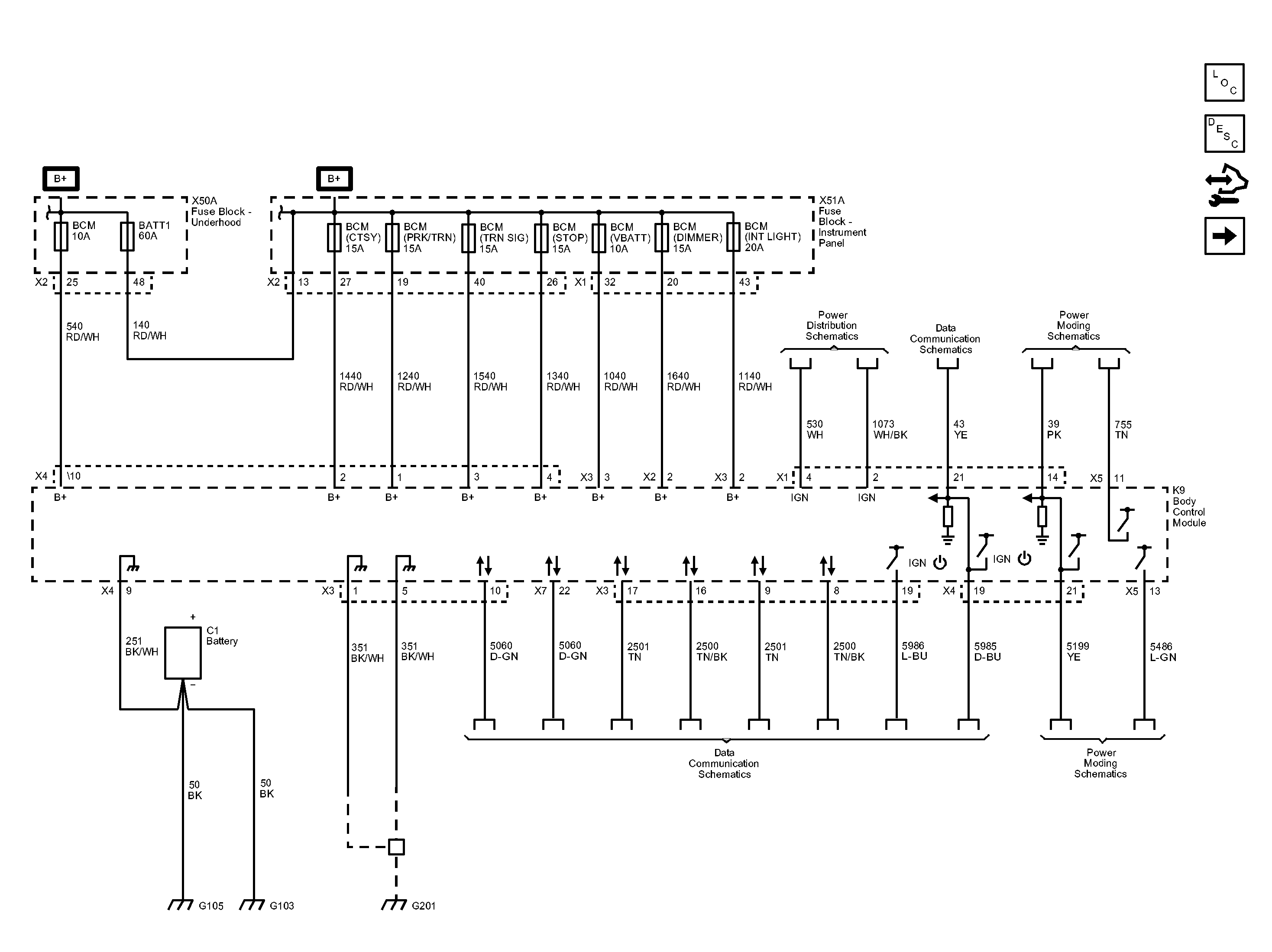

Home >> Chevrolet >> 2013 >> Captiva Sport LS, FWD >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Wiring Schematic Diagrams >> Body Control System Wiring Schematics >> Power, Ground, and Data Communications
