Installation Procedure

    Fig 1: EBCM
    GM1873923Courtesy of GENERAL MOTORS COMPANY
  1. Install the EBCM seals, if removed.
  2. Install the EBCM (1) to the BPMV.
    3. Fig 2: EBCM Bolts
    GM1873922Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the 4 EBCM bolts (1) and tighten the bolts in a cross pattern to 3 N.m (27 lb in).

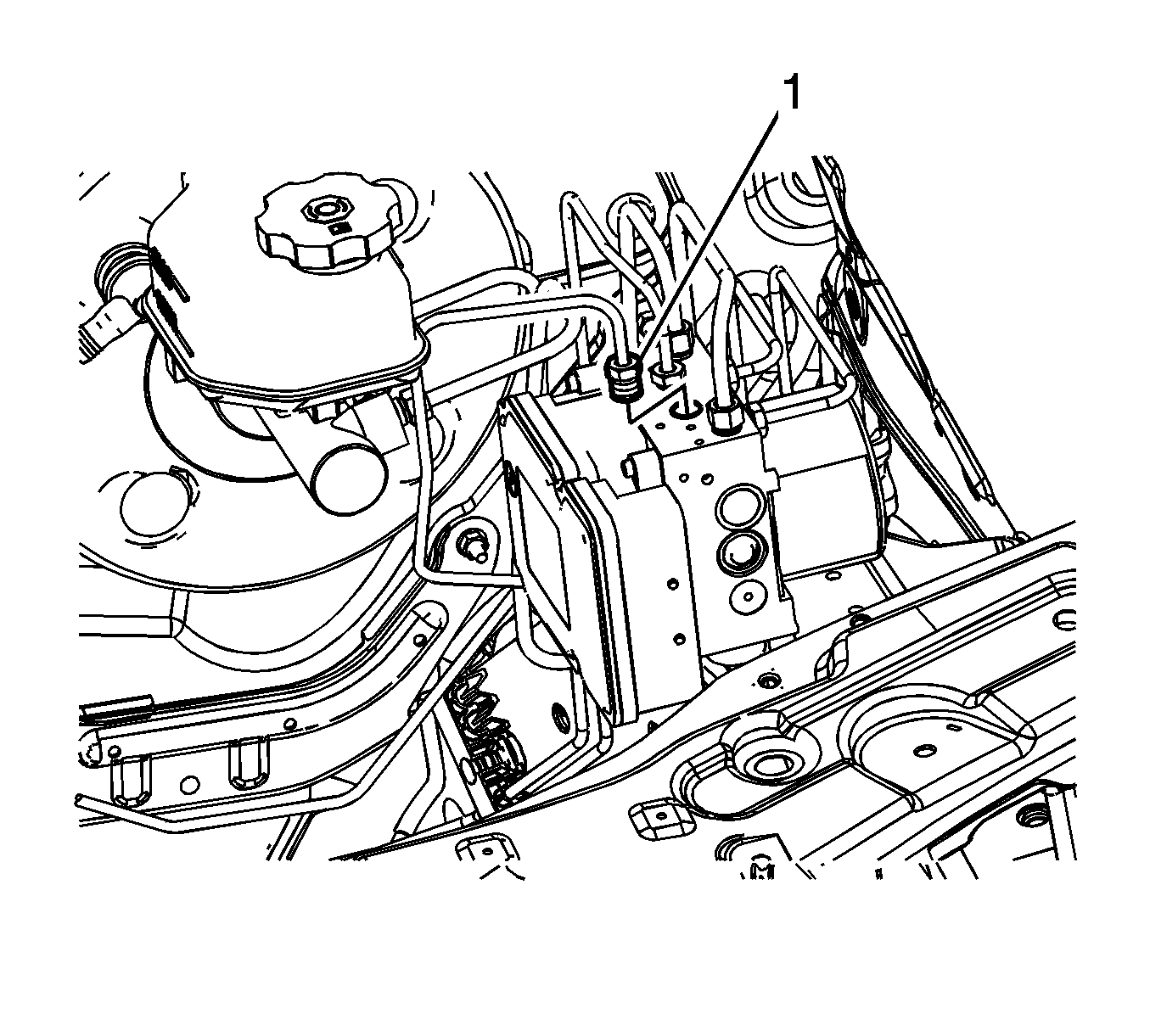

    4. Fig 3: LF Brake Pipe Fitting
    GM1873921Courtesy of GENERAL MOTORS COMPANY
  4. Position the LF brake pipe to the BPMV.
  5. Connect the LF brake pipe fitting (1) to the BPMV and tighten to 21 N.m (16 lb ft).
  6. Install the radiator surge tank. Refer to Radiator Surge Tank Replacement .
  7. Install the underhood electrical center. Refer to Underhood Electrical Center or Junction Block Replacement .
  8. If installing a new EBCM, program the EBCM. Refer to Control Module References .
  9. Without starting the engine, place the ignition switch in the ON position.
  10. Perform the Diagnostic System Check - Vehicle .
  11. Observe the feel of the brake pedal after performing the diagnostic system check. If the pedal now feels spongy, air may have been in the secondary circuit of the brake modulator assembly, which may have been introduced into the primary circuit.

    If the pedal feels spongy, perform the Antilock Brake System Automated Bleed .
