Removal Procedure

WARNING: This page is about a different car, the 2012 Chevrolet Captiva Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the parking brake cable adjuster. Refer to Parking Brake Cable Adjuster Disabling .
  2. Turn the ignition to the OFF position.
  3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
    4. Fig 1: Parking Brake Intermediate Cable Nut
    GM2420590Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect the parking brake intermediate cable nut (1) from the electronic parking brake control module spindle by rotating the nut counterclockwise.
  5. Disconnect the parking brake intermediate cable and position the cable aside.
    6. Fig 2: Electronic Parking Brake Control Module Front Cover
    GM2420597Courtesy of GENERAL MOTORS COMPANY
  6. Remove the electronic parking brake control module front cover (1).
  7. Disconnect the electronic parking brake control module electrical connector.

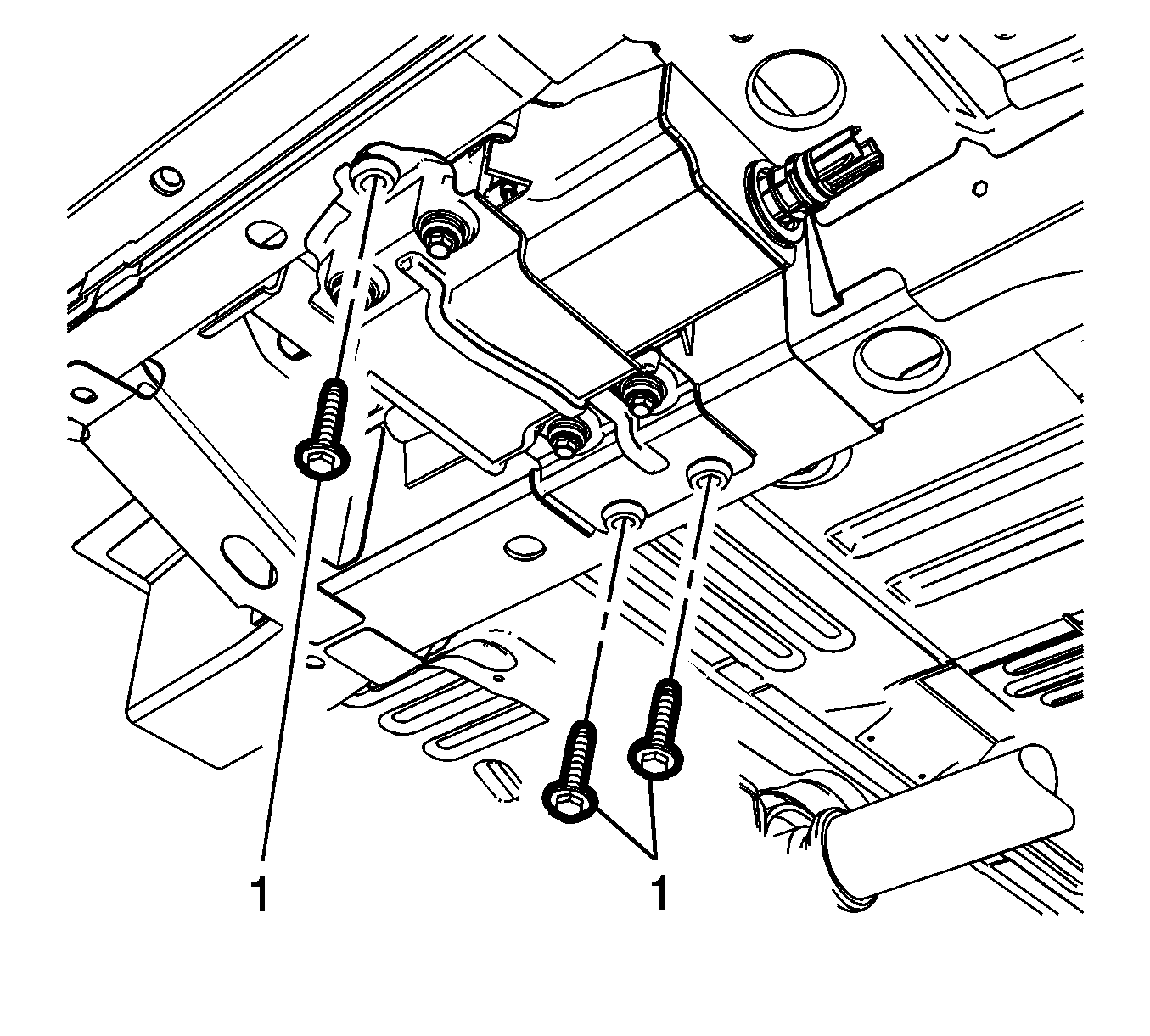

    8. Fig 3: Electronic Parking Brake Control Module Bracket Bolts
    GM2420604Courtesy of GENERAL MOTORS COMPANY
  8. Remove the electronic parking brake control module bracket bolts (1).

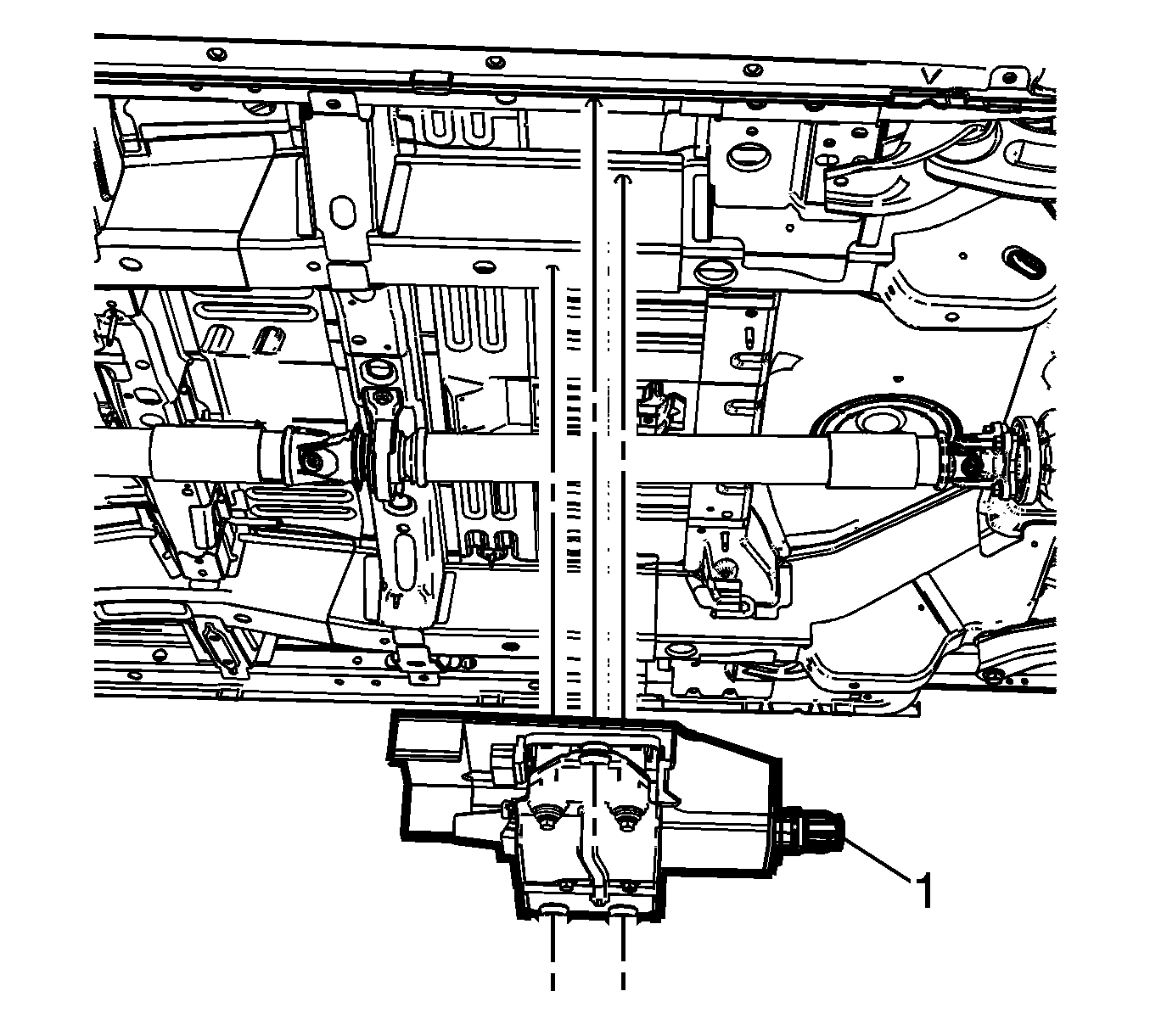

    9. Fig 4: Electronic Parking Brake Control Module And Bracket
    GM2420608Courtesy of GENERAL MOTORS COMPANY
  9. Remove the electronic parking brake control module and bracket assembly (1).

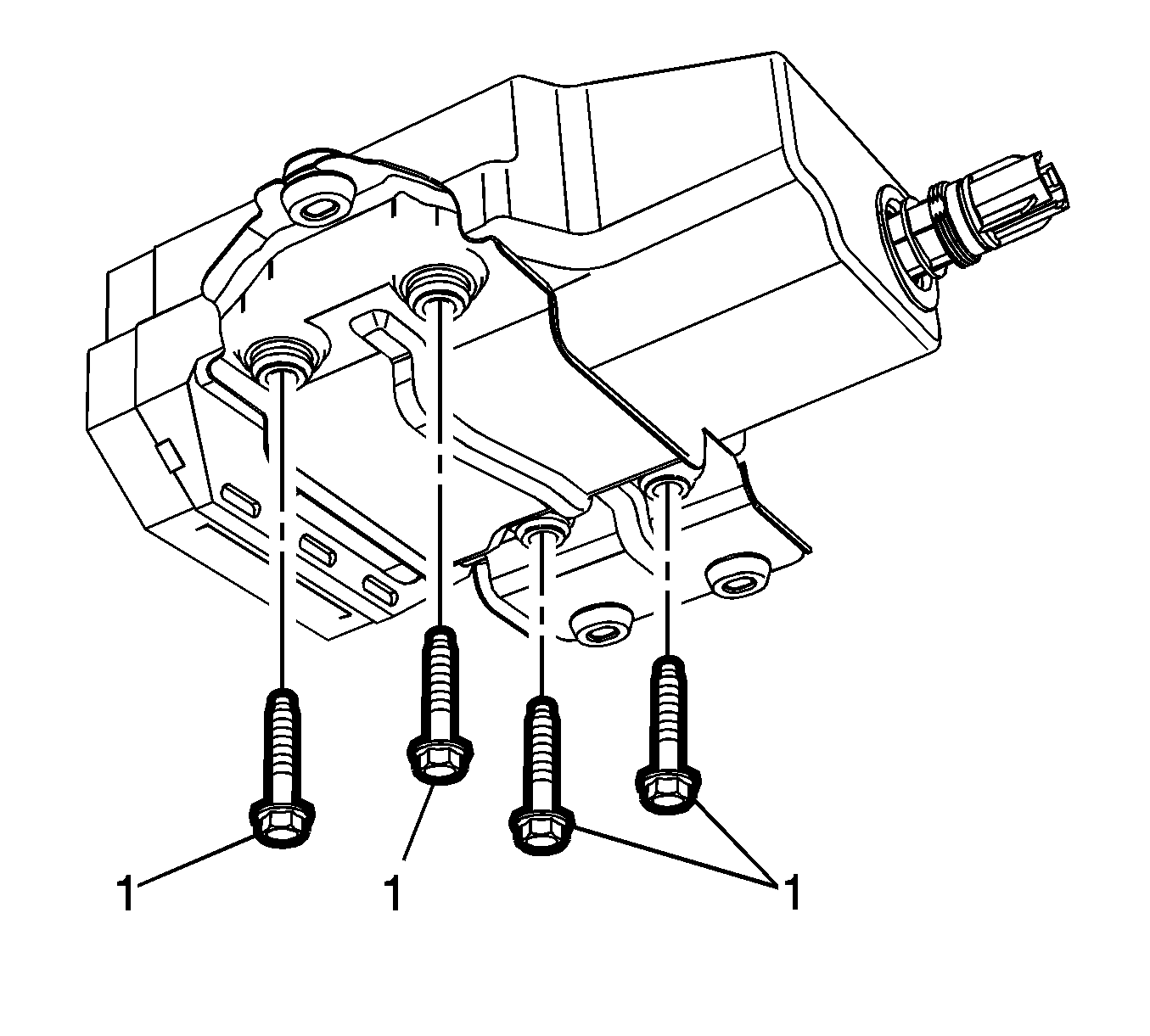

    10. Fig 5: Electronic Parking Brake Control Module Bolts
    GM2420612Courtesy of GENERAL MOTORS COMPANY
  10. If necessary, remove the electronic parking brake control module bolts (1).

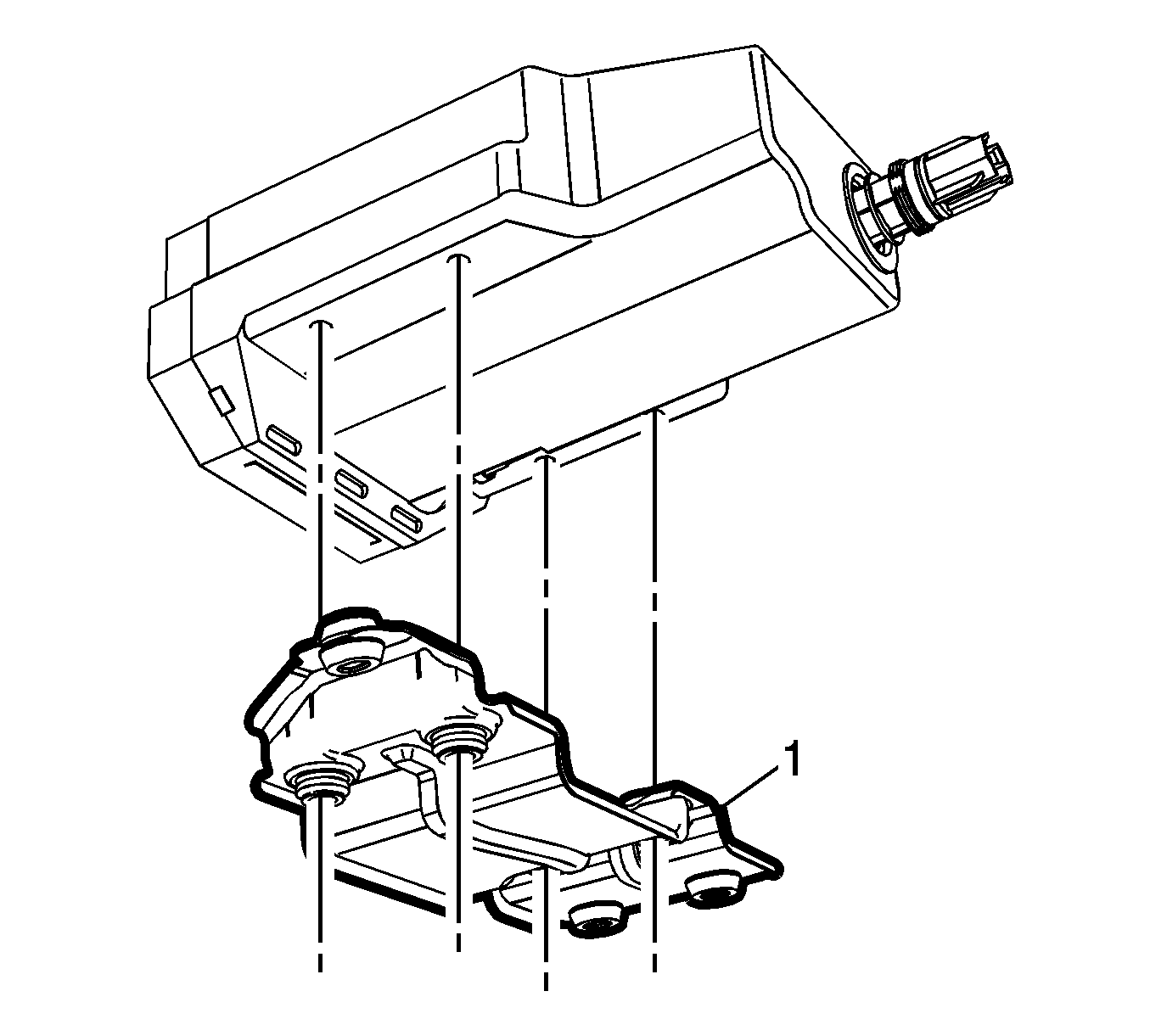

    11. Fig 6: Electronic Parking Brake Control Module Bracket
    GM2420615Courtesy of GENERAL MOTORS COMPANY
  11. Remove the electronic parking brake control module bracket (1).
  12. Inspect the electronic parking brake control module bracket sleeves and insulators. Replace any damaged or missing sleeves or insulators.

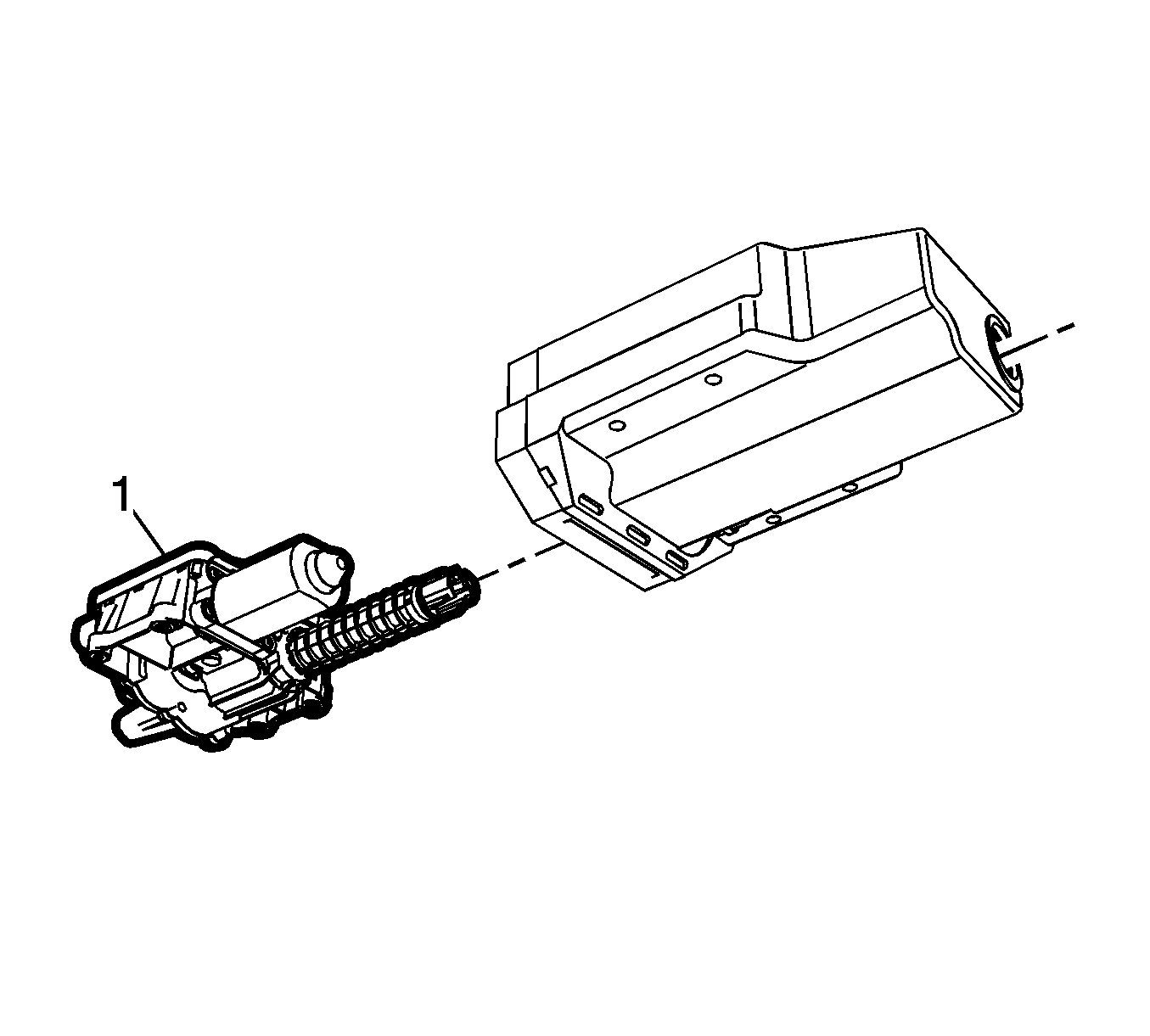

    13. Fig 7: Electronic Parking Brake Control Module
    GM2420621Courtesy of GENERAL MOTORS COMPANY
  13. Remove the electronic parking brake control module (1) from the rear cover.
