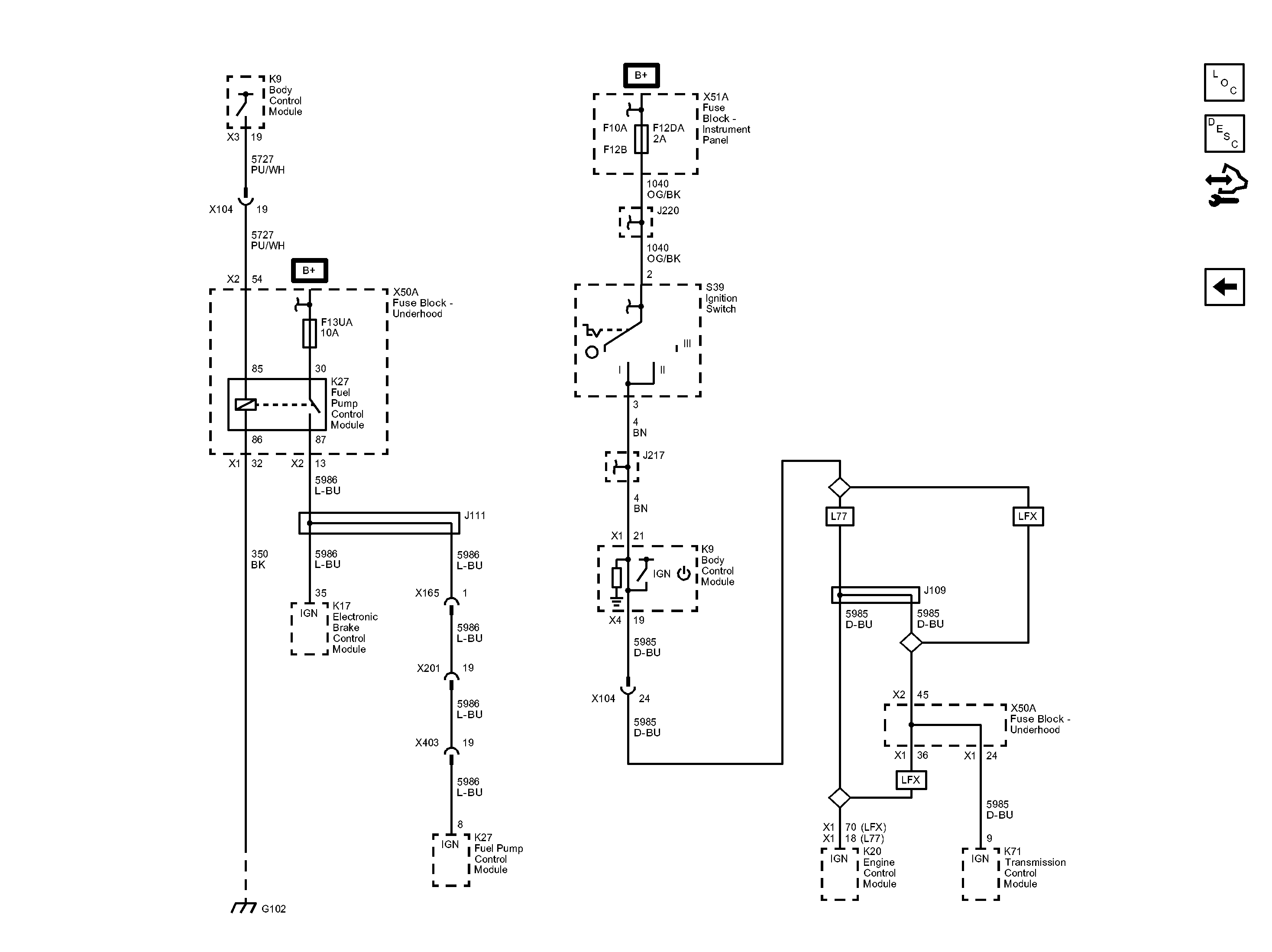

Home >> Chevrolet >> 2013 >> Caprice 6.0L Eng VIN 2 >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> Accessory Wakeup Serial Data
