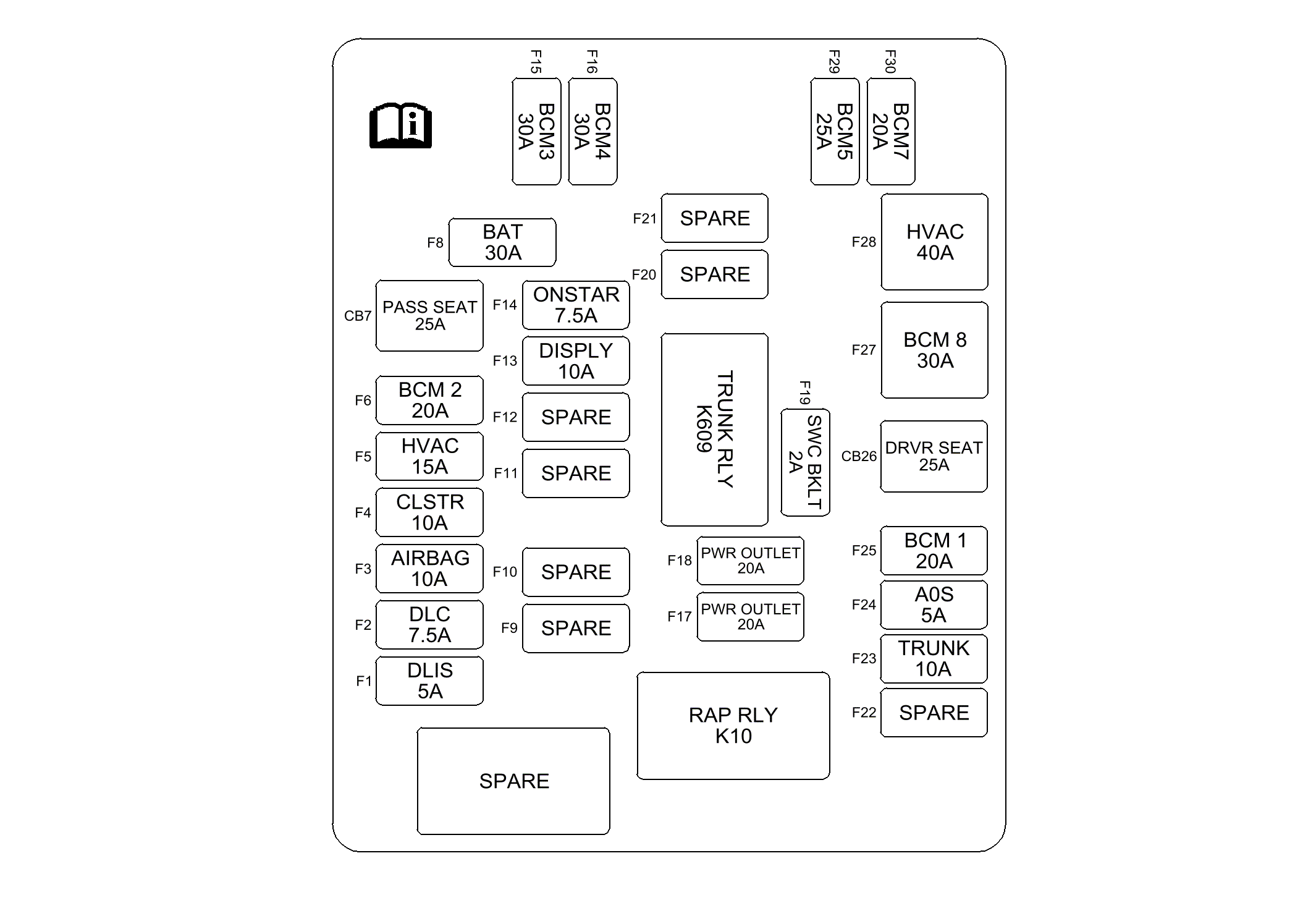

X51A Fuse Block - Instrument Panel Label
X51A FUSE BLOCK - INSTRUMENT PANEL FUSE AND RELAY IDENTIFICATION LEGEND
| No. | Device Label Name | Fuse And Relay Description | Rating | Circuits |
|---|---|---|---|---|
| Fuses | ||||
| F1DA: F1 | F1DA: DLIS Fuse | F1DA: F1DA Fuse | F1DA: 5 A | F1DA: S39 Ignition Switch |
| F2DA: F2 | F2DA: DLC Fuse | F2DA: F2DA Fuse | F2DA: 7.5 A | F2DA: X84 Data Link Connector |
| F3DA: F3 | F3DA: AIRBAG Fuse | F3DA: F3DA Fuse | F3DA: 10 A | F3DA: K36 Inflatable Restraint Sensing and Diagnostic Module |
| F4DA: F4 | F4DA: CLSTR Fuse | F4DA: F4DA Fuse | F4DA: 10 A | F4DA: P16 Instrument Cluster, and P26 Auxiliary Gauge Module (UMQ) |
| F5DA: F5 | F5DA: HVAC Fuse | F5DA: F5DA Fuse | F5DA: 15 A | F5DA: K33 HVAC Control Module |
| F6DA: F6 | F6DA: BCM 2 Fuse | F6DA: F6DA Fuse | F6DA: 20 A | F6DA: K9 Body Control Module |
| F7DA: CB7 | F7DA: PASS SEAT Circuit Breaker | F7DA: F7DA Circuit Breaker | F7DA: 25 A | F7DA: S64P Seat Adjuster Switch - Passenger |
| F8DA: F8 | F8DA: BAT Fuse | F8DA: F8DA Fuse | F8DA: 30 A | F8DA: DISPLY/F13DA, and ONSTAR/F14DA Fuses |
| F9DA: F9 | F9DA: SPARE Fuse | F9DA: F9DA Fuse | F9DA: - | F9DA: Not Used |
| F10DA: F10 | F10DA: SPARE Fuse | F10DA: F10DA Fuse | F10DA: - | F10DA: Not Used |
| F11DA: F11 | F11DA: SPARE | F11DA: F11DA Fuse | F11DA: - | F11DA: Not Used |
| F12DA: F12 | F12DA: SPARE Fuse | F12DA: F12DA Fuse | F12DA: - | F12DA: Not Used |
| F13DA: F13 | F13DA: DISPLY Fuse | F13DA: F13DA Fuse | F13DA: 10 A | F13DA: A20 Radio/HVAC Controls, P29 Head-Up Display (UV6), and T11 Multimedia Player Interface Module (USR), |
| F14DA: F14 | F14DA: ONSTAR Fuse | F14DA: F14DA Fuse | F14DA: 7.5 A | F14DA: K73 Telematics Communication Interface Control Module (UE1), and K82 Mobile Telephone Control Module (UPH) |
| F15DA: F15 | F15DA: BCM3 Fuse | F15DA: F15DA Fuse | F15DA: 30 A | F15DA: K9 Body Control Module |
| F16DA: F16 | F16DA: BCM4 Fuse | F16DA: F16DA Fuse | F16DA: 30 A | F16DA: K9 Body Control Module |
| F17DA: F17 | F17DA: PWR OUTLET Fuse | F17DA: F17DA Fuse | F17DA: 20 A | F17DA: X80H Accessory Power Receptacle - Center Console |
| F18DA: F18 | F18DA: PWR OUTLET Fuse | F18DA: F18DA Fuse | F18DA: 20 A | F18DA: X80D Accessory Power Receptacle - Center Console Compartment |
| F19DA: F19 | F19DA: SWC BKLT Fuse | F19DA: F19DA Fuse | F19DA: 2 A | F19DA: S70L Steering Wheel Controls Switch - Left, and S70R Steering Wheel Controls Switch - Right (NZL) |
| F20DA: F20 | F20DA: SPARE Fuse | F20DA: F20DA Fuse | F20DA: - | F20DA: Not Used |
| F21DA: F21 | F21DA: SPARE Fuse | F21DA: F21DA Fuse | F21DA: - | F21DA: Not Used |
| F22DA: F22 | F22DA: SPARE Fuse | F22DA: F22DA Fuse | F22DA: - | F22DA: Not Used |
| F23DA: F23 | F23DA: TRUNK Fuse | F23DA: F23DA Fuse | F23DA: 10 A | F23DA: TRUNK RLY Relay K609/KR95B Rear Compartment Lid Unlatch Relay |
| F24DA: F24 | F24DA: AOS Fuse | F24DA: F24DA Fuse | F24DA: 5 A | F24DA: K85 Passenger Presence Detection Module |
| F25DA: F25 | F25DA: BCM 1 Fuse | F25DA: F25DA Fuse | F25DA: 20 A | F25DA: K9 Body Control Module |
| F26DA: CB26 | F26DA: DRVR SEAT Circuit Breaker | F26DA: F26DA Circuit Breaker | F26DA: 25 A | F26DA: S64D Seat Adjuster Switch - Driver |
| F27DA: F27 | F27DA: BCM 8 Fuse | F27DA: F27DA Fuse | F27DA: 30 A | F27DA: K9 Body Control Module |
| F28DA: F28 | F28DA: HVAC Fuse | F28DA: F28DA Fuse | F28DA: 40 A | F28DA: K8 Blower Motor Control Module |
| F29DA: F29 | F29DA: BCM5 Fuse | F29DA: F29DA Fuse | F29DA: 25 A | F29DA: K9 Body Control Module |
| F30DA: F30 | F30DA: BCM7 Fuse | F30DA: F30DA Fuse | F30DA: 20 A | F30DA: K9 Body Control Module |
| Relays | ||||
| KR76: K10 | KR76: RAP RLY Relay K10 | KR76: KR76 Retained Accessory Power Relay | KR76: - | KR76: PWR OUTLET/F17DA, and PWR OUTLET/F18DA Fuses |
| - | SPARE Relay | - | - | Not Used |
| KR95B: K609 | KR95B: TRUNK RLY Relay K609 | KR95B: KR95B Rear Compartment Lid Unlatch Relay | KR95B: - | KR95B: M40 Rear Compartment Lid Latch |
