Linear Interconnect Network (LIN) Bus 1, 3, 4, 9, 11

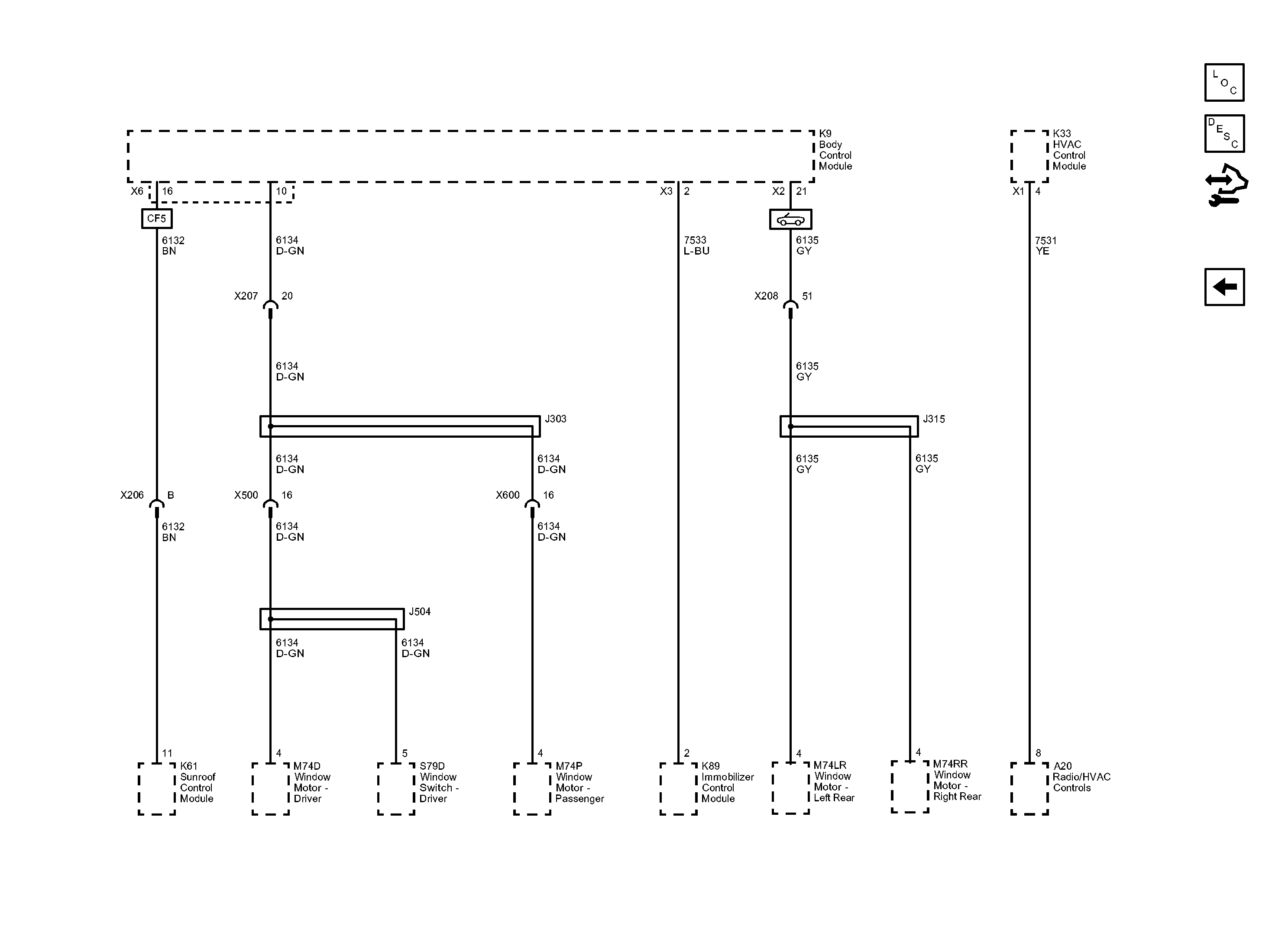

Fig 1: Linear Interconnect Network (LIN) Bus 1, 3, 4, 9, 11 Wiring Schematic

GM2785298

Courtesy of GENERAL MOTORS COMPANY
