S2R Transmission Manual Shift Switch Connector End View - Right (MYB or MYC)

WARNING: This page is about a different car, the 2011 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

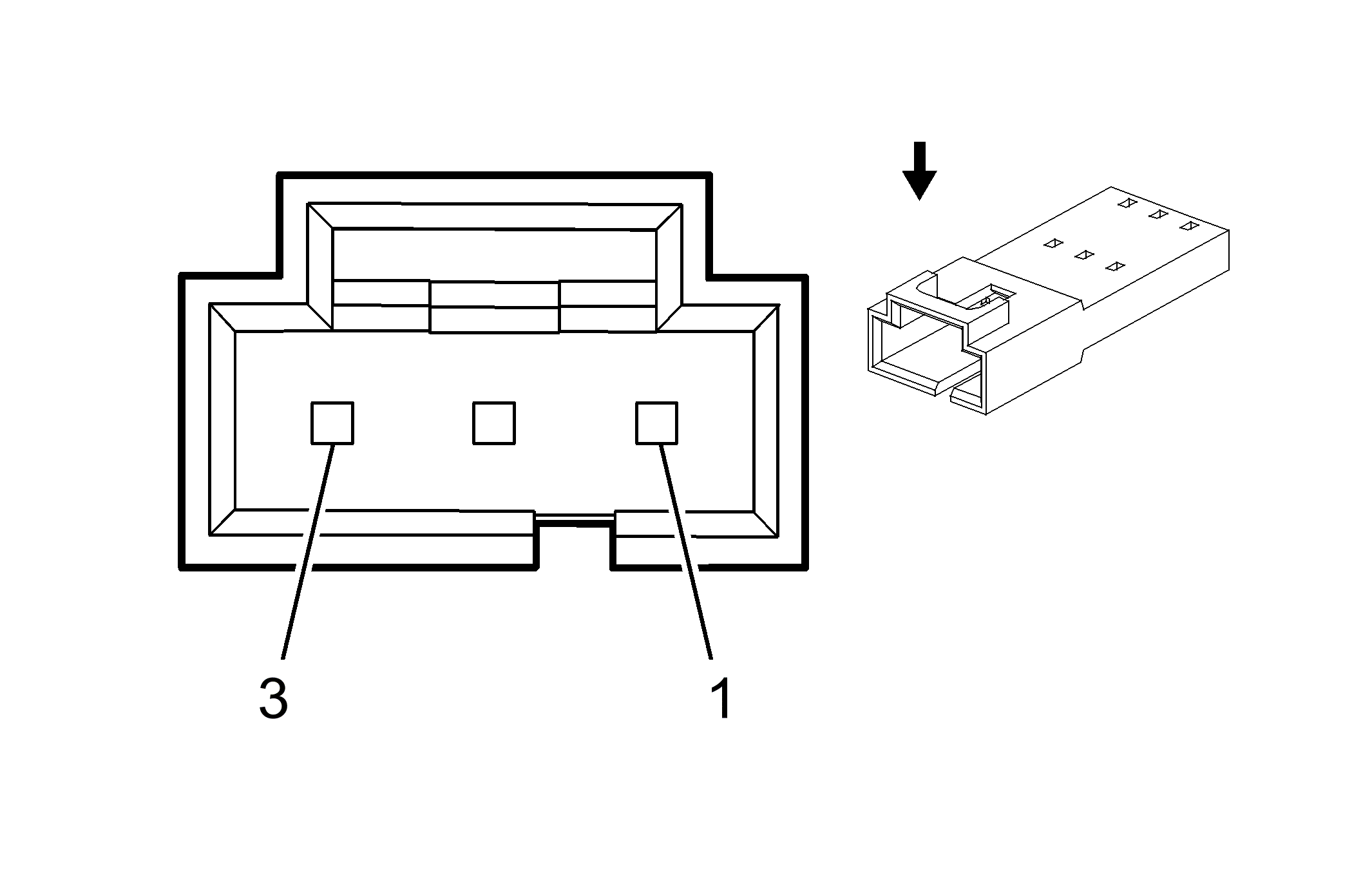

Fig 1: S2R Transmission Manual Shift Switch Connector End View - Right (MYB or MYC)
GM2282902Courtesy of GENERAL MOTORS CORP.
S2R Transmission Manual Shift Switch - Right (MYB or MYC)

Pin Wire Circuit Function
1 0.35 BK 1550 Ground
2 0.35 PU 5526 Tap Up/Tap Down Switch Signal
3 0.35 D-BU/RD 5525 Tap Up/Tap Down Enabled Signal
Connector Part Information
  • Harness Type: Steering Wheel
  • OEM Connector: 103653-2
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 3-Way M MTE Series (BK)
Terminal Part Information
  • Terminal/Tray: Service by Harness - See Part Catalog
  • Core/Insulation Crimp: Not Available
  • Release Tool: Not Available
  • Test Probe: Not Available
