K85 Passenger Presence Detection Module X2 Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

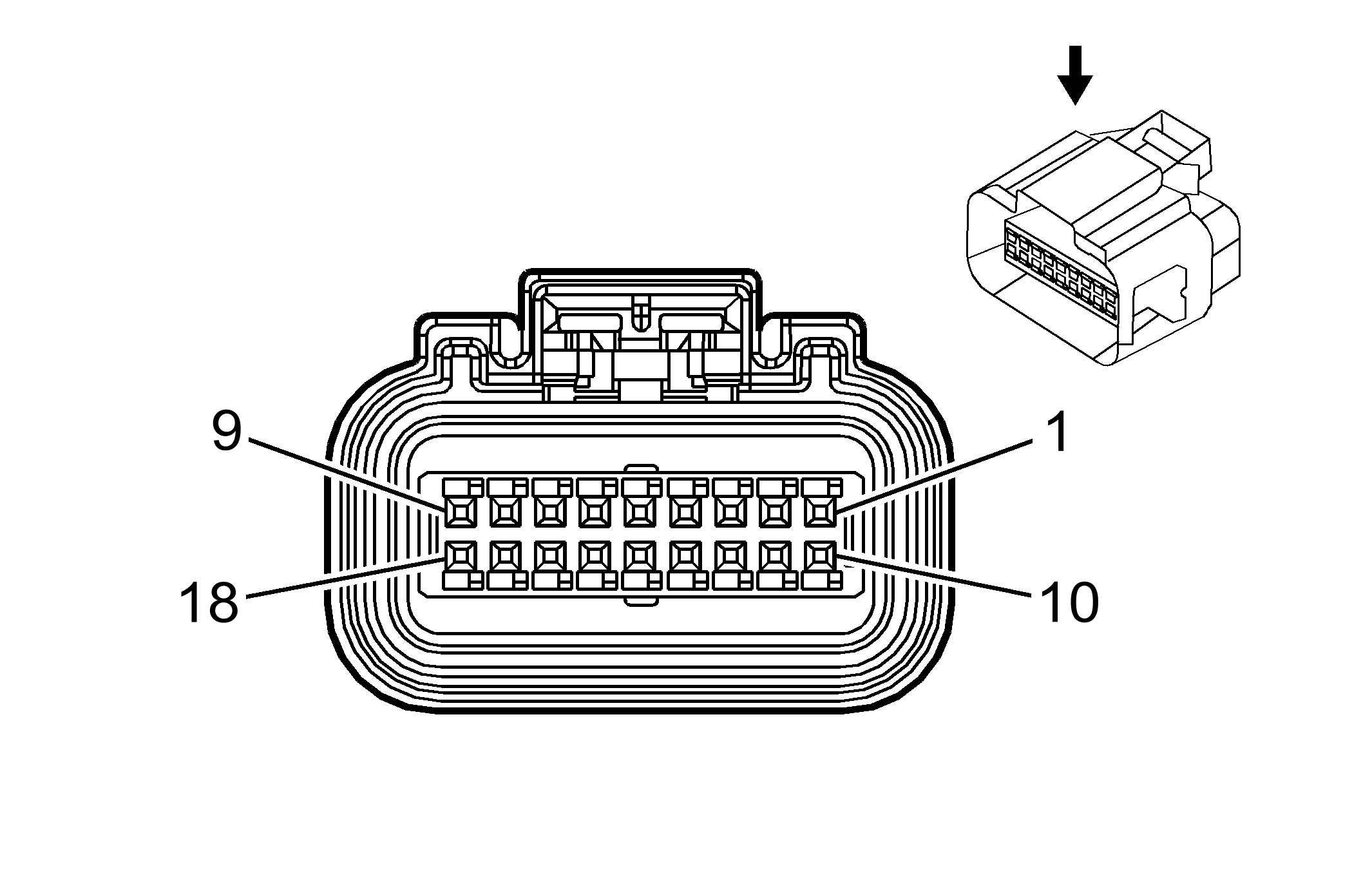

Fig 1: K85 Passenger Presence Detection Module X2 Connector End View
GM2382015Courtesy of GENERAL MOTORS CORP.
K85 Passenger Presence Detection Module X2

Pin Wire Circuit Function
1 FW - -
2 FW - -
3 FW - -
4 FW - -
5 FW - -
6 FW - -
7 FW - -
8 FW - -
9 FW - -
10 FW - -
11 FW - -
12 FW - -
13 FW - -
14 FW - -
15 FW - -
16 FW - -
17 FW - -
18 FW - -
Connector Part Information
  • Harness Type: Passenger Presence Detection Sensor
  • OEM Connector: 13545457
  • Service Connector: Service as Harness - See Part Catalog
  • Description: 18-Way F Flexible Printed Circuit Series (BK)
Terminal Part Information
  • Terminal/Tray: Service as Harness - See Part Catalog
  • Core/Insulation Crimp: Not Available
  • Release Tool: Not Available
  • Test Probe: Not Available
