Wireless Communication Interface Antenna Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

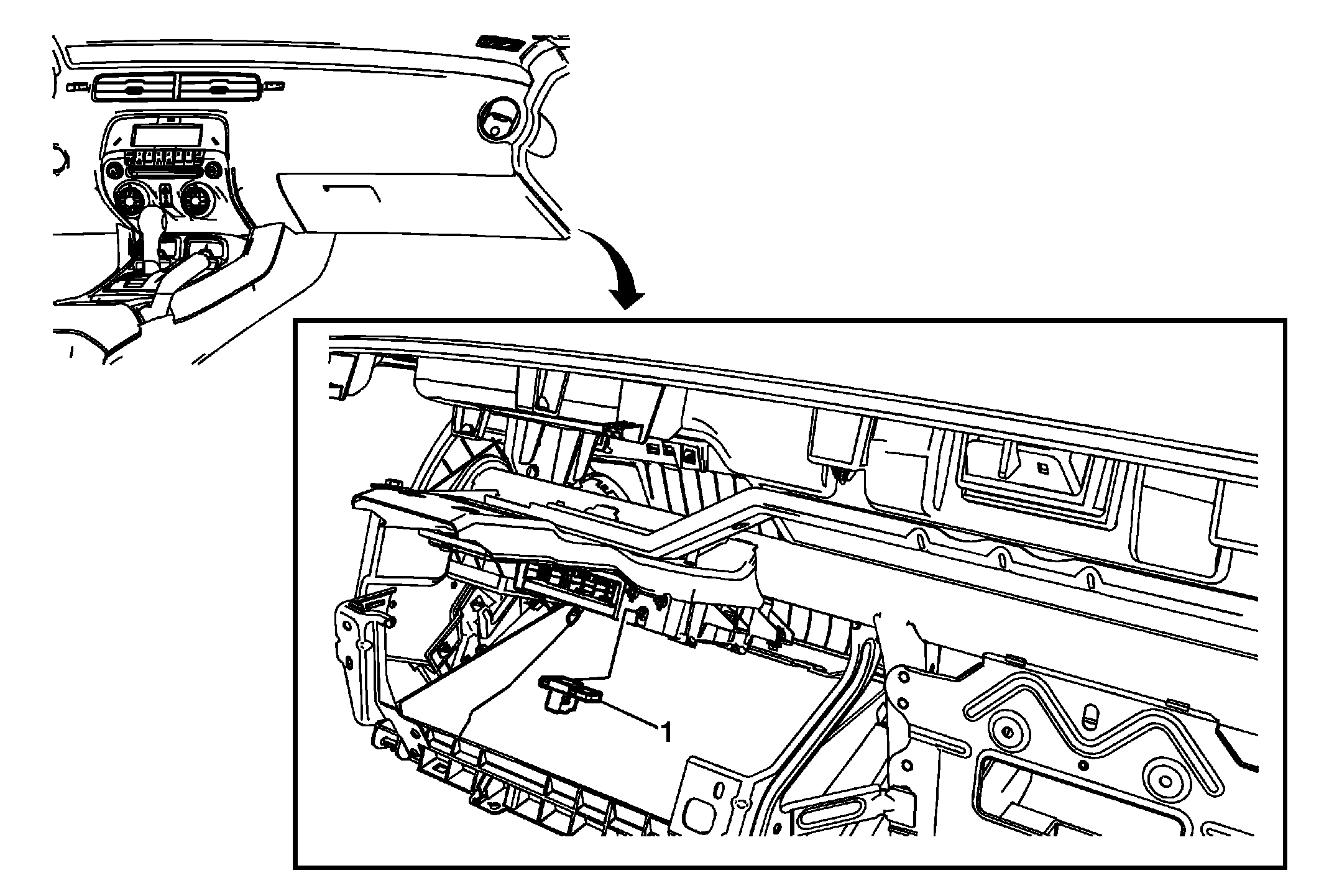

Fig 1: Wireless Communication Interface Antenna
GM2195337Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement
1 Wireless Communication Interface Antenna Bluetooth Module
Procedure:
Unsnap the antenna from communication module.
