Quarter Window Replacement (Convertible)

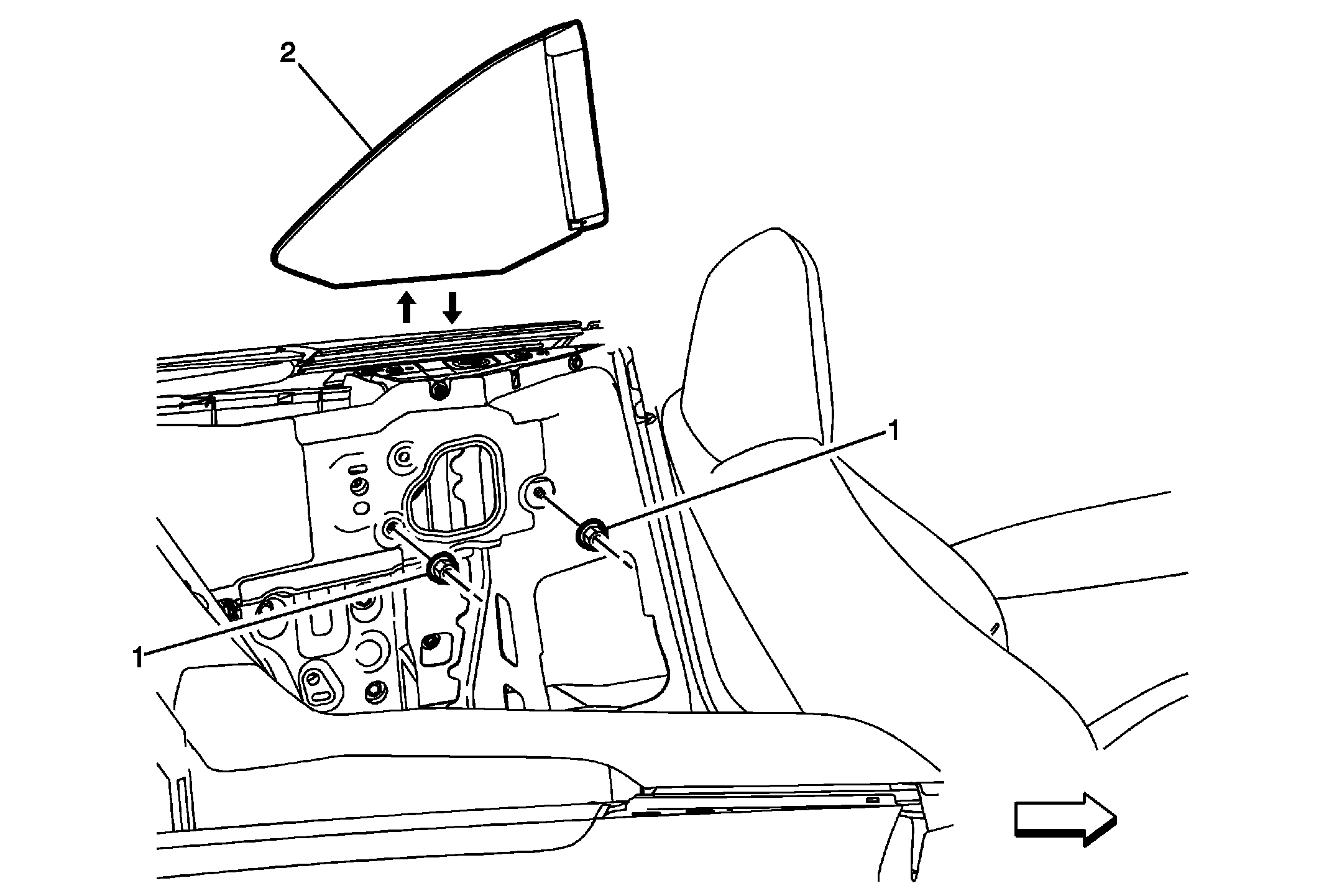

Fig 1: Quarter Window & Nuts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedure Remove the quarter window reveal molding. Refer to Quarter Window Reveal Molding Replacement . Remove the weatherstrip from the upper pinchweld flange only. Refer to Front Side Door Weatherstrip Replacement - Body Side (Convertible) . Remove the quarter trim panel insert. Refer to Quarter Trim Panel Insert Replacement (Convertible) .
1	Quarter Window Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Quarter Window NOTE: Place the window on a clean dry surface.

Callout

Component Name

WARNING:

Preliminary Procedure

Remove the quarter window reveal molding. Refer to Quarter Window Reveal Molding Replacement .
Remove the weatherstrip from the upper pinchweld flange only. Refer to Front Side Door Weatherstrip Replacement - Body Side (Convertible) .
Remove the quarter trim panel insert. Refer to Quarter Trim Panel Insert Replacement (Convertible) .

Quarter Window Nut (Qty: 2)

CAUTION:

Tighten
10 N.m (89 lb in)

Quarter Window

NOTE:

Place the window on a clean dry surface.
