Quarter Window Regulator Motor Replacement

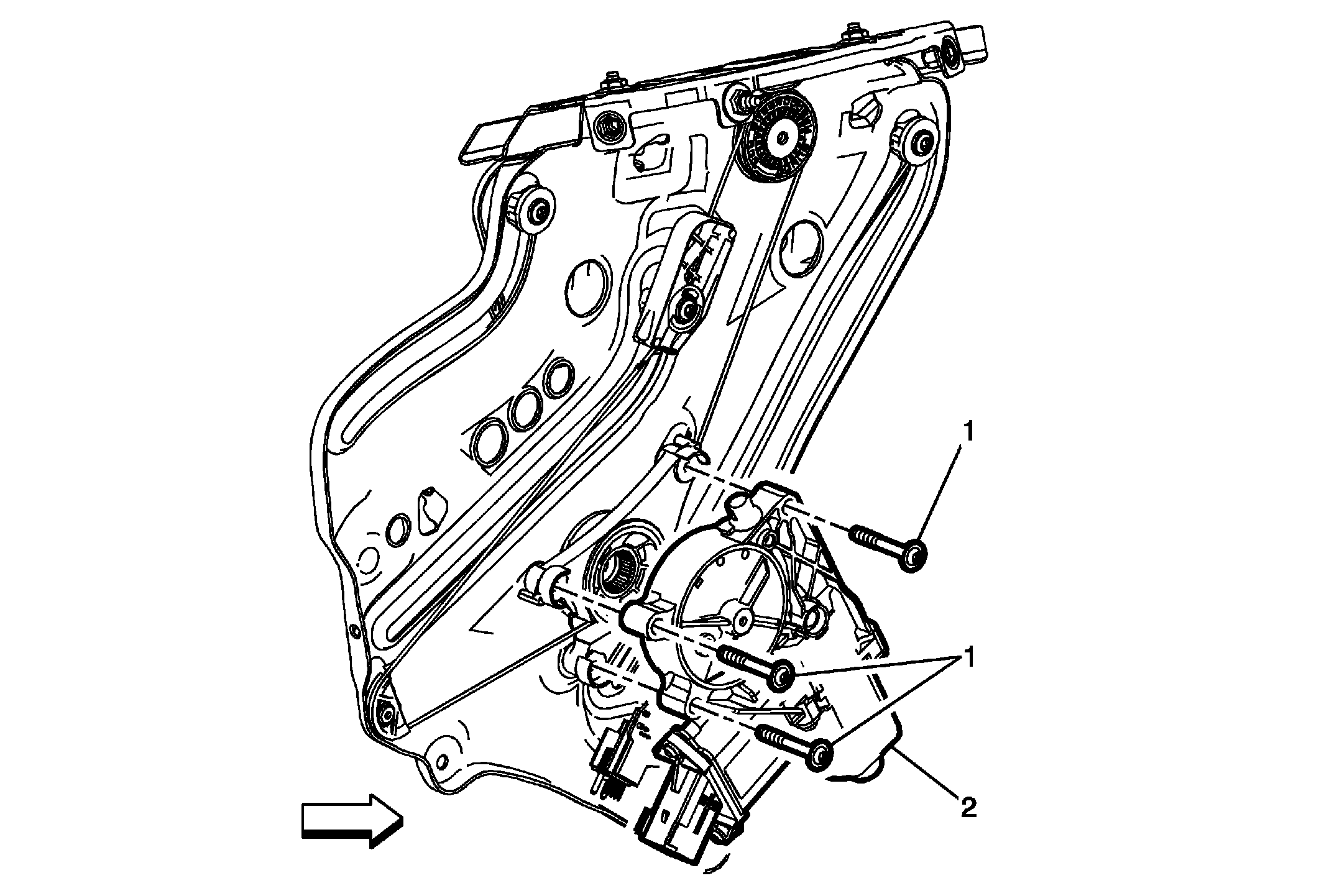

Fig 1: Quarter Window Regulator Motor & Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the quarter window regulator. Refer to Quarter Window Regulator Replacement .
1	Quarter Window Regulator Motor Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Quarter Window Regulator Motor Procedure When installing the regulator motor ensure that the gear washer is in place. After replacing the quarter window regulator motor, it is necessary to reprogram. Refer to Window Motor Programming - Express Function . Inspect the quarter window for proper operation before securing the quarter trim.

Callout

Component Name

Preliminary Procedure
Remove the quarter window regulator. Refer to Quarter Window Regulator Replacement .

Quarter Window Regulator Motor Screw (Qty: 3)

CAUTION:

Tighten
8 N.m (71 lb in)

Quarter Window Regulator Motor

Procedure

When installing the regulator motor ensure that the gear washer is in place.
After replacing the quarter window regulator motor, it is necessary to reprogram. Refer to Window Motor Programming - Express Function .
Inspect the quarter window for proper operation before securing the quarter trim.
