Inside Rearview Mirror Replacement

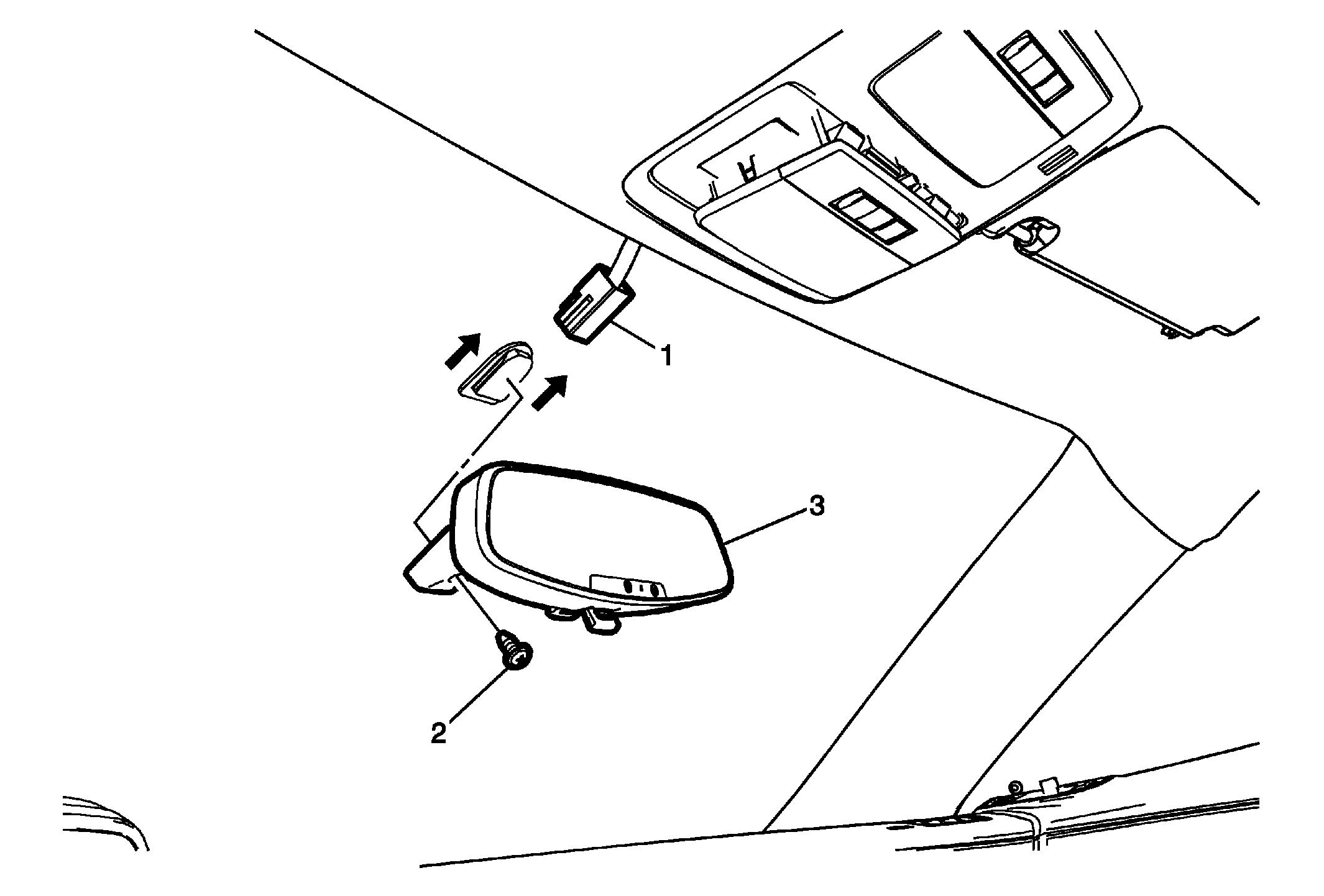

Fig 1: Inside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the inside rearview mirror wiring harness cover. Refer to Inside Rearview Mirror Wiring Harness Cover Replacement .
1	Inside Rearview Mirror Electrical Connector
2	Inside Rearview Mirror Set Screw CAUTION: Refer to Fastener Caution . Procedure Adjust the mirror to the full upward position. Loosen the set screw located at the base of the mirror. Slide the mirror upward off of the rearview mirror button. Tighten 2 N.m (18 lb in)
3	Inside Rearview Mirror Procedure Clear all diagnostic trouble codes (DTC). Refer to Control Module References for programming and setup information. NOTE: Record and then clear all Diagnostic Trouble Codes before performing any diagnostic procedures or mirror replacement.
